TP-Link EAP772 Tri-Band Wi-Fi 7 Access Point

TP-Link EAP772 Tri-Band Wi-Fi 7 Access Point
Вашата цена с ДДС (20.0%)
404.45 лв
Поръчан за склад
Delivery Без потвърдена дата на доставка
TP-Link
Производител
Продуктов номер
EAP772
Продуктов Код
RL027.109
Гаранция
60 месеца

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

Enterprise tri-band Wi-Fi 7 access point TP-Link EAP772 with ultra-thin design provides connection with a total throughput of up to 9.2 Gbps. The overall throughput is achieved by broadcasting in three bands simultaneously at speeds of up to 5760 Mbps in the 6 GHz band, 2880 Mbps in the 5GHz band and 574 Mbps in the 2.4GHz band with a maximum channel width of up to 320 MHz and the latest technologies MLO, Multi-RU, MU-MIMO and OFDMA, which allow you to communicate with multiple devices simultaneously or use multiple wireless frequencies for communication. Enhanced security with WPA3 encryption. Network connection is made by 1x 2.5G LAN port with PoE 802.3at support.

EAP772

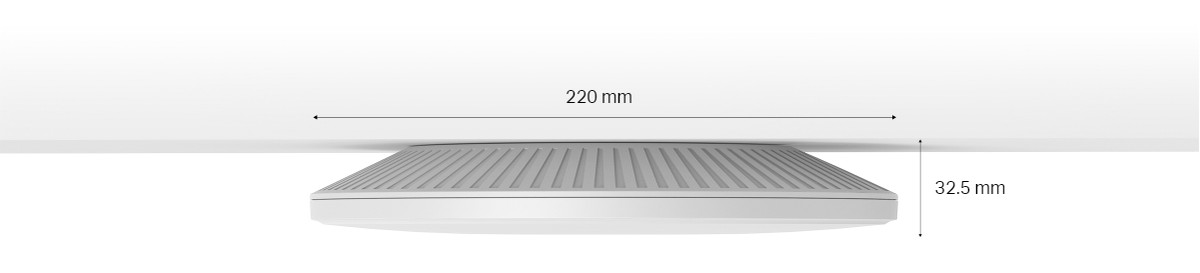

Ultra-thin design for flexible deployment

The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.

EAP772

Package Contents

  • EAP772
  • Quick Installation Guide
  • Mounting kit for ceiling/wall

Свали

https://download.discomp.cz/tp-link/datasheets/EAP772.pdf
Свали Datasheet
https://download.discomp.cz/tp-link/qsg/7106510781_EAP650 & EAP683 UR_IG_V1.pdf
Свали Quick Installation guide

Технически параметри

LAN ports
Power over Ethernet
802.3at
Operating mode
Access Point
Wireless frequency
2.4 + 5 + 6 GHz (triple band)
WiFi standards
802.11a, 802.11ac, 802.11ax, 802.11b/g, 802.11be, 802.11n
MU-MIMO
Yes
Transmission speed - 2.4GHz [Mb/s]
574
Transmission speed - 5GHz [Mb/s]
2880
Transmission speed - 6GHz [Mb/s]
5760
Tx power 2.4GHz [dBm]
20
Tx power 5GHz [dBm]
28
Tx power 6GHz [dBm]
23
Security
WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
6GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
6
Purpose
Indoor
Roaming
Yes
Antenna gain [dBi]
4, 5
LAN ports
1
LAN speed
(1) 100/1000/2500Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
24
Power via connector/terminal
12V / 2,5A
Buttons
Reset
Operating temperature [°C]
0 up to 40
Depth [mm]
220
Width [mm]
220
Height [mm]
33
Default IP address
Dynamic from DHCP
