Ubiquiti dual omni antenna airMAX 2x2 MIMO 5GHz, 13dBi, rocket kit
Your price incl. VAT (20.0%)
315.23 BGN
✅ In Stock 60+ Бр.
Planned Delivery Date by Courier to you 01-01-2025
Product description
AMO-5G13 is 2x2 MIMO omnidirectional antenna with 13dBi gain, 360°/7° beam angles and is designed for 5GHz band. It was designed to seamlessly integrate with Rocket M radio series.
Plug and Play Integration

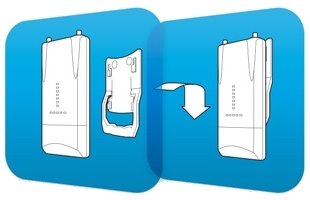

Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
Package contains
- Antenna
- (2) RSMA male - RSMA male pigtail
- Holder + screws
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,5
Designed for mast diameter [mm]
30 up to 80
Cross-Pol Isolation [dB]
25
Wind load [km/h]
200
Rocket kit
Yes
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
7
Azimuth beam width (-6dB) [°]
360
Antenna type
Omnidirectional
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
13
Material
UV stabilized ABS plastic
Weight [kg]
0,8
Width [mm]
90
Height [mm]
799
Depth [mm]
65
