Ubiquiti LTU-Rocket, 5GHz LTU, BaseStation Radio

Ubiquiti LTU-Rocket, 5GHz LTU, BaseStation Radio
Your price incl. VAT (20.0%)
796.52 BGN
Ordered for stock
Delivery Planned Delivery Date by Courier to you 29-01-2025
Ubiquiti Networks
Manufacturer
Product number
LTU-Rocket
Product Code
RL015.637
Warranty
24 months

Product description

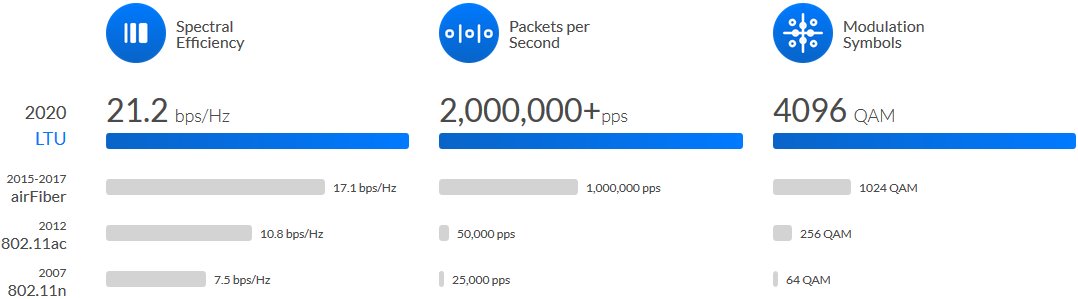

LTU-Rocket is a PtMP AP unit for the 5GHz band with two RSMA female connector for Wireless sector antenna, one SMA female connector for GPS antenna and proprietary LTU wireless technology that is not based on the 802.11 standard protocol can deliver real TCP/IP speeds 600Mbps+ (up to 1Gbps+ with future fw), modulation up to 1025 QAM (up to 4096 QAM with future fw) and higher spectral efficiency 21.2 bps/Hz, twice the 802.11AC standard!

UBNT LTU-Rocket

Features

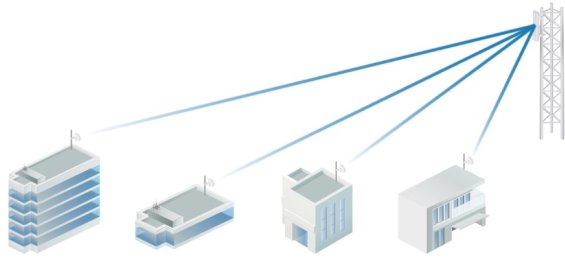

  • PtMP AP
  • 1024 QAM (in future fw up to 4096 QAM)

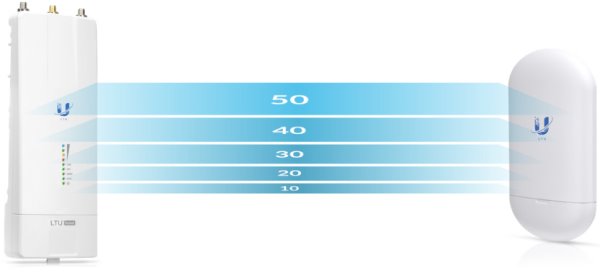

  • 10/20/30/40/50 MHz channel bandwidth (in future fw up to 100MHz!)
  • Central configuration management from AP side
  • Frequency split
  • Auto power adjustments
  • Router and bridge mode support
UBNT LTU-Rocket

Frequency Split

LTU technology allows you to set different transmission (Tx) and receive (Rx) frequencies to avoid interference, increasing your network's throughput.

UBNT LTU-Rocket

Compatibility

LTU-Pro is a PtMP CPE unit for the 5GHz band with 24dBi antenna gain and proprietary LTU wireless technology that is not based on the 802.11 standard protocol can deliver real TCP/IP speeds 600Mbps+ (up to 1Gbps+ with future fw), modulation up to 1025 QAM (up to 4096 QAM with future fw) and higher spectral efficiency 21.2 bps/Hz, twice the 802.11AC standard!

UBNT LTU-Lite

Features

  • PtMP CPE
  • 1024 QAM (in future fw up to 4096 QAM)
  • 10/20/30/40/50 MHz channel bandwidth (in future fw up to 100MHz!)
  • Central configuration management from AP side
  • Frequency split
  • Auto power adjustments
  • Router and bridge mode support
UBNT LTU-Lite

Frequency Split

LTU technology allows you to set different transmission (Tx) and receive (Rx) frequencies to avoid interference, increasing your network's throughput.

UBNT LTU-Lite

Compatibility

LTU is a completely new platform based on proprietary technology, which doesn't use 802.11 protocol, making it incompatible with 802.11n and 802.11ac devices. For that reason it is NOT compatible with airMAX M5 nor with airMAX 5AC.

On the other hand, although LTU is based on airFiber technology, it uses a different protocol for communication, making it incompatible with other 5GHz airFiber products such as AF-5X or AF-5/5U.

Software

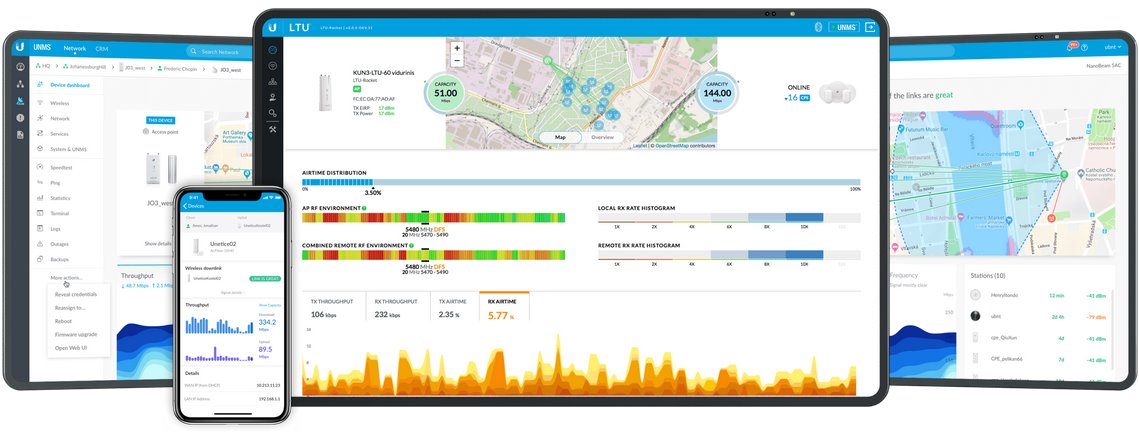

In addition to its own web management, LTU products are also supported by UNMS software for central management and management of Ubiquiti devices.

UBNT LTU-Lite

Package contains

  • Device
  • Holder
  • Gigabit PoE power adapter 24V/0.5A
  • Power cord

Software

In addition to its own web management, LTU products are also supported by UNMS software for central management and management of Ubiquiti devices.

UBNT LTU-Rocket

Package contains

  • Device
  • (2) Zip ties
  • GPS antenna
  • Universal bracket
  • Wall mount bracket
  • IP67 upgrade kit
  • Gigabit PoE power adapter 24V/1A
  • Power cord

Download

http://dl-origin.ubnt.com/qsg/LTU-Rocket/
Download Quick Guide
https://download.discomp.cz/Ubiquiti/Datasheets/ltu-rocket.pdf
Download Datasheet

Technical parameters

LAN ports
Power over Ethernet
18 .. 54V DC
Protection class
IP67
Maximum modulation
1024 QAM
Operating mode
Access Point, AP Router
Wireless frequency
5 GHz
WiFi standards
LTU
Tx power 5GHz [dBm]
29
Security
WPA2 AES
5GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
2
RF connectors
(2) RSMA female, (1) SMA female
Purpose
Outdoor
Power type
PoE
Operating system
airOS LTU
LAN ports
2
LAN speed
(1) 10/100/1000Mbps + (1) 10/100/1000Mbps (managment)
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
25
Buttons
Reset
Operating temperature [°C]
-40 up to 55
Weight [g]
468
Width [mm]
82
Height [mm]
244
Depth [mm]
48
IPv6 support
Yes
Default IP address
192.168.1.20
Default login and password
ubnt / ubnt
GPS modul
Yes
