Ubiquiti AF-11, airFiber 11

Ubiquiti AF-11, airFiber 11
Your price incl. VAT (20.0%)
2,120.24 BGN
❌ The item is not available. There is no option to order.
Delivery No confirmed delivery date
Ubiquiti Networks
Manufacturer
Product number
AF-11
Product Code
RL016.104
Warranty
24 months

Product description

AF-11 is fullduplex ptp device with SISO/MIMO mode. The heart of the new airFiber 11 is INVICTUS 2 CPU designed for long distance, high transmission power up to 30dBm and throughput up to 1,2Gbps. The unit can be powered via DC terminal block (38 up to 56VDC) or via supplied passive PoE adapter (50V/1.2A).

AF-11

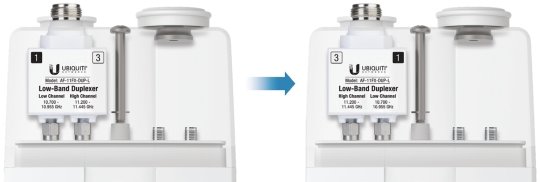

Change Tx and Rx frequency

To change Tx and Rx frequency in SISO mode is necessary rotate duplexer. Completely link will have same duplexers on both sides (Low-Low or High-High) and even in the MIMO mode. Selection of Low or High duplexers is dependent on what frequencies will be allocated from the local Telecommunication Authority.

AF-11

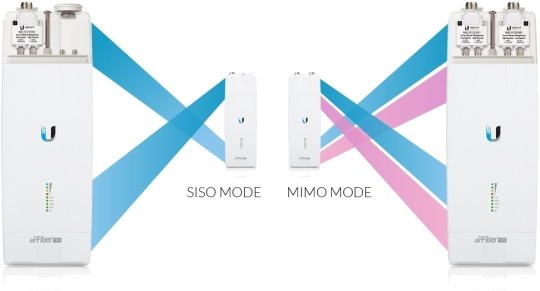

MIMO or SISO?

AirFiber 11 can operate in SISO(1 polarization) or MIMO(2 polarization) mode, depending on the local conditions of use. For SISO mode usage is necesary buy separately low or high duplexer (depends on freqeuncy what you want to use). For MIMO usage is necessary to buy 2 same duplexers.

AF-11

Duplexer

AirFiber 11 without any duplexers works in very wide frequency band (10.7.GHz to 11.7GHz), bandwidth from 3,5 to 56MHz and using different Tx and Rx frequencies.

Package contains

  • AF-11 device
  • PoE adapter 50V/1.2A
  • Power cord

Download

https://dl.ubnt.com/ds/af-11_ds
Download Datasheet
https://dl.ubnt.com/qsg/AF-11/AF-11_EN.html
Download Quick Guide

Technical parameters

LAN ports
Power over Ethernet
50V DC
MIMO, SISO
1 x 1 (2 x 2 optionaly)
Tx power [dBm]
30
Sensitivity [dBm]
-95
Frequency range [MHz]
10700 - 11700
Maximum modulation
1024 QAM
Channel bandwidth [MHz]
10, 14, 20, 28, 3,5, 30, 40, 5, 50, 56, 7
Wireless frequency
11 GHz
Security
128bit AES
Type of antenna
Detachable
Detachable antennas
4
RF connectors
(2) RSMA female
Purpose
Outdoor
LAN ports
2
LAN speed
(1) 10/100/1000Mbps + (1) 10/100Mbps (managment)
PoE type
PoE-In (only)
Max. power consumption [W]
36
Power via connector/terminal
38 .. 56V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 55
Weight [g]
2260
Width [mm]
112
Height [mm]
327
Depth [mm]
86
CPU
INVICTUS 2 IC
IPv6 support
Transparent (bridge mode)
Default IP address
192.168.1.20
Default login and password
ubnt / ubnt
