MikroTik Cloud Core Router, CCR2116-12G-4S+

MikroTik Cloud Core Router, CCR2116-12G-4S+
Your price incl. VAT (20.0%)
1,699.26 BGN
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 13-11-2024
MikroTik
Manufacturer
Product number
CCR2116-12G-4S+
Product Code
RL019.472
Warranty
24 months

Product description

Thanks to its very strong configuration, it is the perfect device for professionals in busy locations. There is 4x SFP+ with speed 1/10 Gbps and 13x 10 / 100 / 1000Mbps ethernet, console port type RJ45, 4 fans, 2 redundant power supplies with input voltage 100 - 240 V and M.2 PCI-e slot for SSD up to 8 TB.

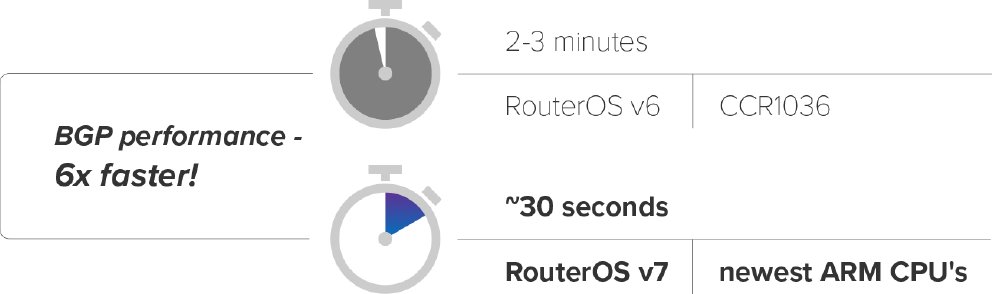

RouterOS v7 level 6 is pre-installed, offering 128 MB of internal storage and 16 GB of DDR4 RAM. The maximum power consumption of the device is maintained at an acceptable 72 W with connected peripherals. Thanks to the new RouterOS v7, the router has up to 6 times higher performance when loading BGP.

MikroTik Cloud Core Router, CCR2116-12G-4S+

Equipment

  • (4) 1G/10G SFP+
  • (13) 10 / 100 / 1000Mbps Ethernet
  • (1) console RJ45 port
  • Processor AL731400, frequency 2 GHz, ARM 64bit
  • 16GB RAM (DDR4)
  • Storage 128 MB, NAND + M.2 PCI-e slot (unmounted)
  • RouterOS v7, Level 6 operating system
  • Dimensions 443 x 199 x 44 mm
  • (4) 40 x 40mm fans

Package Contents

  • (1) Devices
  • (2) Power cord
  • (1) 19 "rack mounts

Articles and reviews

Download

http://www.mikrotik.com/download
Download Firmware (RouterOS / SwOS)
https://download.discomp.cz/MikroTik/CE/ID171_1_CCR2116-12G-4S_DOC_220449.pdf
Download CE
https://download.discomp.cz/MikroTik/Datasheets/CCR2116-12G-4Splus.pdf
Download Datasheet

Technical parameters

LAN ports
Design
Rackmount
M.2 slots
1
Multiple WAN
Yes
Power type
Mains power (230V)
"U" positions
1
Operating system
RouterOS - L6
Fans
Yes
LAN ports
13
LAN speed
(13) 10/100/1000Mbps
Gigabit LAN
Yes
SFP cages
4 (1G/10G support)
SFP+ cages
4 (1G/10G support)
Optical interfaces
(4) 1G/10Gbps
Redundant power supply
Yes
Max. power consumption [W]
60
Serial port
RJ45
Chassis design
Metal
Power via connector/terminal
230V AC
Buttons
Reset, mode
Operating temperature [°C]
-20 up to 60
Width [mm]
443
Height [mm]
44
Depth [mm]
199
CPU
AL73400
CPU frequency [MHz]
2000
CPU cores
16
IPv6 support
Yes
Default IP address
192.168.88.1
Internal storage [MB]
128
RAM [MB]
16384
Default login and password
admin / -
