MikroTik Cloud Core Router, CCR2216-1G-12XS-2XQ

MikroTik Cloud Core Router, CCR2216-1G-12XS-2XQ
Your price incl. VAT (20.0%)
4,767.68 BGN
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 13-11-2024
MikroTik
Manufacturer
Product number
CCR2216-1G-12XS-2XQ
Product Code
RL019.898
Warranty
24 months

Product description

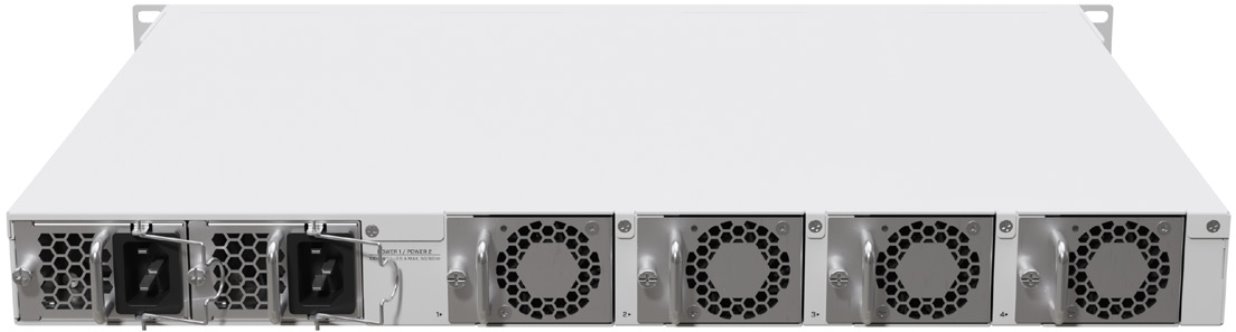

The new flagship Cloud Core Router 2216 with a very strong configuration designed for the most exposed places of your network and in compared to CCR1072 it is up to 4x more powerful!. There is 12x SFP28 at 1/10/25 Gbps, 2x QSFP28 at speeds of 100 Gbps and 1x 10/100/1000 Mbps ethernet, RJ45 console port, 4 hotswap fans, 2 redundant hotswap sources with input voltage 100 - 240 V and (2) M.2 PCI-e slots for SSD.

RouterOS v7 level 6 is pre-installed, offering 128 MB of internal storage and 16 GB of DDR4 RAM. The maximum power consumption of the device is 121 W with connected peripherals (80 W without peripherals).

CCR2216-1G-12XS-2XQ

Key Features

  • (12) 1G/10G/25G (SFP28)
  • (2) 100G (QSFP28)
  • (1) 10/100/1000Mbps Ethernet
  • (1) console RJ45 port
  • AL73400 processor, 2GHz frequency, ARM 64bit
  • 16GB RAM (DDR4)
  • Storage 128 MB, NAND + (2) M.2 PCI-e slot (unmounted)
  • RouterOS v7, Level 6 operating system
  • (4) hotswap fans 40 × 40 mm
  • (2) hotswap redundant powersource

Package Contents

  • (1) Device
  • (2) Power cord
  • (1) 19" rack mounts
  • (1) Cable management

Articles and reviews

Download

http://www.mikrotik.com/download
Download Firmware (RouterOS / SwOS)
https://download.discomp.cz/MikroTik/CE/ID205_CCR2216-1G-12XS-2XQ_DOC_220413.pdf
Download CE
https://download.discomp.cz/MikroTik/Datasheets/CCR2216-1G-12XS-2XQ-3-1.pdf
Download Datasheet

Technical parameters

LAN ports
Design
Rackmount
M.2 slots
2
Multiple WAN
Yes
Power type
Mains power (230V)
"U" positions
1
Operating system
RouterOS - L6
Fans
Yes
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
SFP28 cages
12 (1G/10G/25G support)
QSFP28 cages
2
Optical interfaces
(12) 1G/10G/25Gbps + (2) 100Gbps
Redundant power supply
Yes
Max. power consumption [W]
121
Serial port
RJ45
Chassis design
Metal
Power via connector/terminal
230V AC
Operating temperature [°C]
-20 up to 60
Width [mm]
443
Height [mm]
44
Depth [mm]
367
CPU
AL73400
CPU frequency [MHz]
2000
CPU cores
16
IPv6 support
Yes
Default IP address
192.168.88.1
Internal storage [MB]
128
RAM [MB]
16384
Default login and password
admin / -
