TP-Link TL-SG3452XP JetStream PoE Switch

TP-Link TL-SG3452XP JetStream PoE Switch
Your price incl. VAT (20.0%)
1,886.54 BGN
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
TP-Link
Manufacturer
Product number
TL-SG3452XP
Product Code
RL020.229
Warranty
60 months

Product description

Jetstream TL-SG3452XP PoE Switch by TP-Link is a manageable L2+ switch with PoE function, containing 48 Gigabit LAN ports with 802.3af/at PoE function and additional 4× SFP+ ports with a speed of 1/10 Gbps. The switch has a total PoE budget of 500 W for powering devices via a cable, the switch can be mounted in a 19" rack, and cooling is provided by 3 vents on the side.

Important features

  • 500W PoE Budget: 48× 802.3at/af-compliant PoE+ ports
  • 48× gigabit PoE+ ports and 4× 1/10 Gbps SFP+ Slot
  • Integration into Omada SDN: Zero-Touch Provisioning, Centralized Cloud Management, and Intelligent Monitoring
  • Centralized Management: Cloud access and Omada app for simple management
  • Security: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and much more
  • Voice and video application optimization: L2/L3/L4 QoS and IGMP snooping
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image provide powerful management options

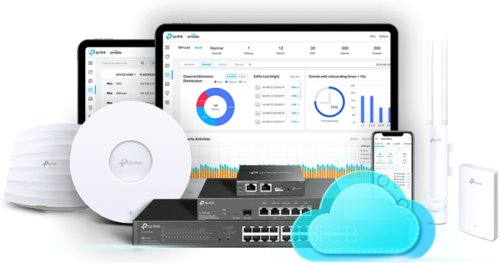

Omada Controller

The Omada Software Defined Networking (SDN) platform integrates network devices, including Access Points, Switches, Gateway routers and provides 100% centralized management in the cloud. Omada creates a highly scalable network including control from a single interface. Provides seamless wireless and wired connectivity, ideal for use in hospitality, education, retail, offices and more.

TP-Link TL-SG3452XP

Package contents

  • Device
  • Power cord
  • Mounts for 19" rack

Download

https://download.discomp.cz/TP-Link/Datasheets/10-Gigabit_L2_Managed_Switch.pdf
Download Datasheet

Technical parameters

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
176
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
131
Web management
Yes
Management
Web management, SSH, Telnet, Omada controller
Features
VLAN, QoS, DHCP snooping
Power type
Mains power (230V)
Fans
Yes
LAN ports
48
LAN speed
(48) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
4 (1G/10G support)
SFP+ cages
4 (1G/10G support)
Optical interfaces
(4) 1G/10Gbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
48
PoE budget [W]
500
Max. power consumption [W]
49
Serial port
RJ45, micro USB
Chassis design
Metal
Power via connector/terminal
230V AC
Buttons
Status (Speed / PoE)
Operating temperature [°C]
0 up to 40
Width [mm]
440
Height [mm]
44
Depth [mm]
330
Default IP address
192.168.0.1
Default login and password
admin / admin
