MikroTik Cloud Router Switch CRS518-16XS-2XQ-RM

MikroTik Cloud Router Switch CRS518-16XS-2XQ-RM
Your price incl. VAT (20.0%)
2,871.40 BGN
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
MikroTik
Manufacturer
Product number
CRS518-16XS-2XQ-RM
Product Code
RL021.450
Warranty
24 months

Product description

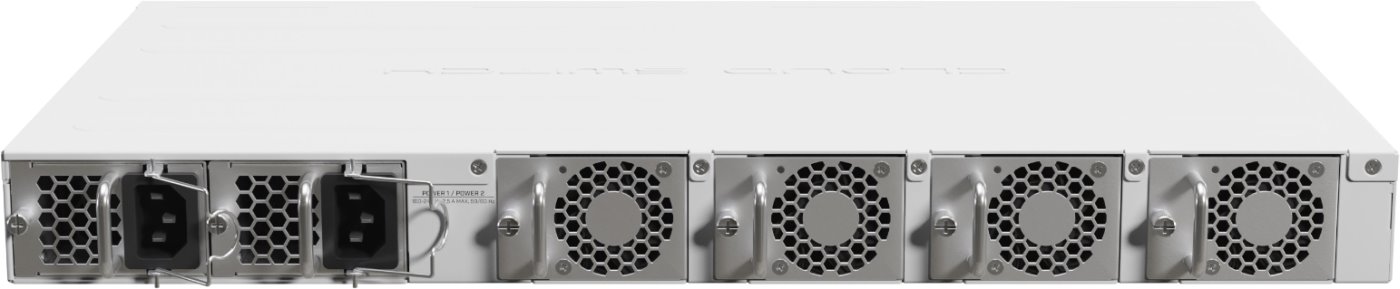

MikroTik Cloud Router Switch CRS518-16XS-2XQ-RM is a feature-packed backbone switch for your network and features 2× QSFP28 (100 Gbps), 16× SFP28 (1/10/25 Gbps), one 10/100Mbps metal port intended only for management, console RJ45 port, two Hot-Swap power modules and four Hot-Swap fans. The switch thus provides a total throughput of 600 Gbps, a switching capacity of 1.2 Tbps, forwarding up to 600 Mpps for most common packets and, thanks to the Marvell Prestera Aldrin2 switch chip, also L3 Hardware Offloading. If you work with a large amount of data, for example as an Internet Service Provider or Data Center Administrator, then this switch is the perfect upgrade for your network.

Redundant power supply

CRS518-16XS-2XQ-RM has two Hot-Swap power modules with redundancy option. In the event of a power failure on the primary source, the function can be replaced by the second source, which is already ready at that moment. So the failure of one resource will not endanger the operation of your network.

MikroTik CRS518-16XS-2XQ-RM

Package contents

  • Device
  • (2) power cord
  • Mounts for 19" rack

Articles and reviews

Download

http://www.mikrotik.com/download
Download Firmware (RouterOS / SwOS)
https://download.discomp.cz/MikroTik/CE/ID212_CRS518-16XS-2XQRM_DOC_220817.pdf
Download CE
https://download.discomp.cz/MikroTik/Datasheets/CRS518-16XS-2XQ-RM.pdf
Download Datasheet

Technical parameters

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
1200
Packet forwarding rate [Mpps]
600
Web management
Yes
Features
L3, VLAN, QoS, DHCP snooping
Power type
Mains power (230V)
"U" positions
1
Operating system
RouterOS - L5
Fans
Yes
LAN ports
1
LAN speed
(1) 10/100Mbps
Gigabit LAN
Yes
Max. LAN ports speed
100M
SFP cages
16 (1G/10G/25G support)
SFP+ cages
16 (1G/10G/25G support)
SFP28 cages
16 (1G/10G/25G support)
QSFP28 cages
2
Optical interfaces
(16) 1G/10G/25Gbps + (2) 100Gbps
Redundant power supply
Yes
Max. power consumption [W]
45
Serial port
RJ45
Chassis design
Metal
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Width [mm]
443
Height [mm]
45
Depth [mm]
265
CPU
QCA9531
CPU frequency [MHz]
650
CPU cores
1
USB
Yes
Default IP address
192.168.88.1
Internal storage [MB]
16
RAM [MB]
64
Default login and password
admin / -
