MikroTik RouterBOARD C52iG-5HaxD2HaxD-TC, hAP ax2

MikroTik RouterBOARD C52iG-5HaxD2HaxD-TC, hAP ax2
Your price incl. VAT (20.0%)
179.60 BGN
✅ In Stock 90+ Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
MikroTik
Manufacturer
Product number
C52iG-5HaxD2HaxD-TC
Product Code
RL021.735
Warranty
24 months

Product description

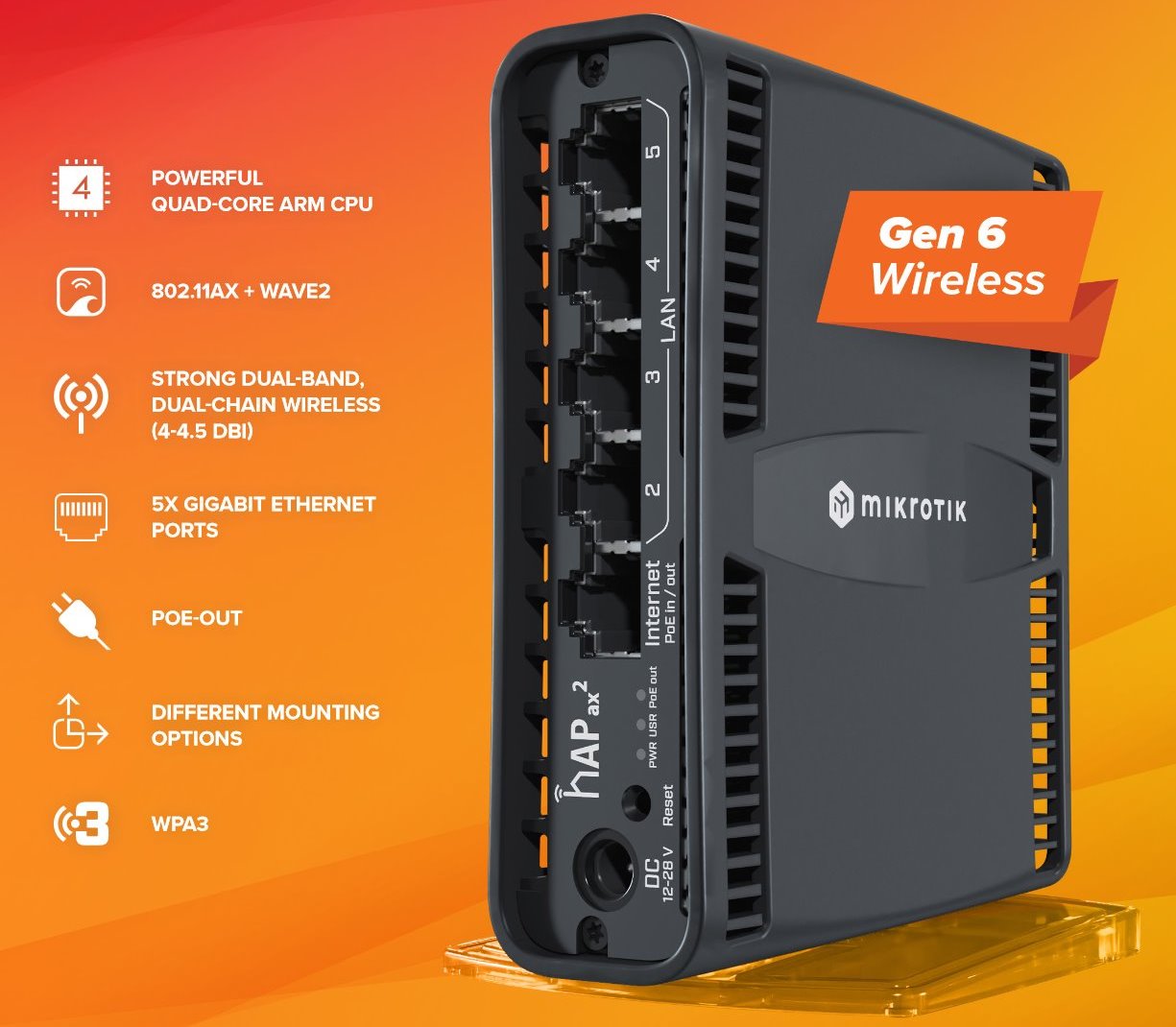

The 6th generation hAP router from MikroTik is here. This small router for homes and small businesses hAP ax2 or C52iG-5HaxD2HaxD-TC has an L4 license, desktop design and includes 5 Gigabit ports of which the 1st port supports PoE in and PoE out. In addition, the router has two radio parts supporting 802.11a/b/g/n/ac/ax standards allowing simultaneous operation in both bands. In the 2.4GHz band, 2×2 MIMO with a transfer rate of up to 574 Mbps and in the 5GHz band 2×2 MIMO with a transfer rate of 1200 Mbps are supported. The gain of the wireless antennas is 4.5 dBi (2.4 GHz) and 4 dBi (5 GHz).

MikroTik C52iG-5HaxD2HaxD-TC

Key Features

  • (5) Gigabit Ethernet
  • Support PoE in/out on 1st port
  • 864MHz CPU - 4 cores, ARM 64bit architecture
  • 128MB NAND, 1GB RAM
  • Wi-Fi - 2.4 GHz (2×2 MIMO, 574 Mbps, 802.11ax), 5 GHz (2×2 MIMO, 1200 Mbps, 802.11 ax)
  • Support WPA3 encryption
  • RouterOS level 4
  • The 802.11ax standard increases speed by up to 40% in the 5 GHz band and up to 90% in the 2.4 GHz band

Package contents

  • Device
  • Power adapter 24 V/1.2 A
  • Plastic stand + screws

Download

http://www.mikrotik.com/download
Download Firmware (RouterOS / SwOS)
https://download.discomp.cz/MikroTik/Datasheets/hapax2.pdf
Download Datasheet

Technical parameters

LAN ports
Power over Ethernet
18 .. 28V DC
Design
Desktop
Operating mode
AP Router
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11a, 802.11b/g, 802.11n, 802.11ac, 802.11ax
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
1201
Transmission speed - 2.4GHz [Mb/s]
574
Tx power 2.4GHz [dBm]
24
Tx power 5GHz [dBm]
23
Security
WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Indoor
Antenna gain [dBi]
4,5, 4
Operating system
RouterOS - L4
LAN ports
5
LAN speed
(5) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-Out + PoE-In
PoE Out ports
1
PoE budget [W]
16,8
Max. power consumption [W]
12
Power via connector/terminal
12 .. 28V DC
Operating temperature [°C]
-40 up to 50
Width [mm]
120
Height [mm]
37
Depth [mm]
101
CPU
IPQ-6010
CPU frequency [MHz]
864
CPU cores
4
IPv6 support
Yes
Default IP address
192.168.88.1
Internal storage [MB]
128
RAM [MB]
1024
Default login and password
admin / -
