Ubiquiti LTU-XR, 5GHz LTU, Extreme range CPE

Ubiquiti LTU-XR, 5GHz LTU, Extreme range CPE
Your price incl. VAT (20.0%)
273.22 BGN
✅ In Stock 70+ Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
Ubiquiti Networks
Manufacturer
Product number
LTU-XR
Product Code
RL021.823
Warranty
24 months

Product description

LTU-XR is a PtMP client unit for the 5GHz band with an antenna gain of 29 dBi and LTU's proprietary wireless technology, which is not built on the limited 802.11 standard, which can achieve a real TCP/IP speed of 550 Mbps+ and modulation up to 1024 QAM. The unit is also equipped with a Bluetooth radio for management and initial setup using the UISP application directly from the mast where you install it.

Key Features

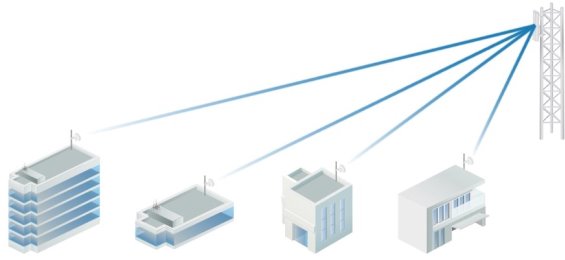

  • PtMP client unit
  • Antenna gain 29 dBi, range up to 35 km
  • 1024 QAM
  • 10/20/30/40/50 MHz channel width
  • The setting is handled centrally by the AP
  • Frequency separation of Tx and Rx frequency
  • Automatic performance adjustment
  • Bridge and router mode support
  • Integrated GPS
  • Quick setup via Bluetooth via UISP mobile app

Option to set different Tx and Rx frequency

LTU technology allows you to use different frequencies for transmit (Tx) and receive (Rx) to avoid interference, thus increasing the throughput of your network.

UBNT LTU-XR

Compatibility

LTU is a completely new platform based on proprietary technology that does not use the 802.11 protocol. It is not compatible with devices from the airMAX M5 or airMAX 5AC series. On the other hand, although LTU is based on the technology used by airFiber products, they use a different protocol for communication, so LTU products are not compatible with AF-5X or AF-5/5U products either.

Software

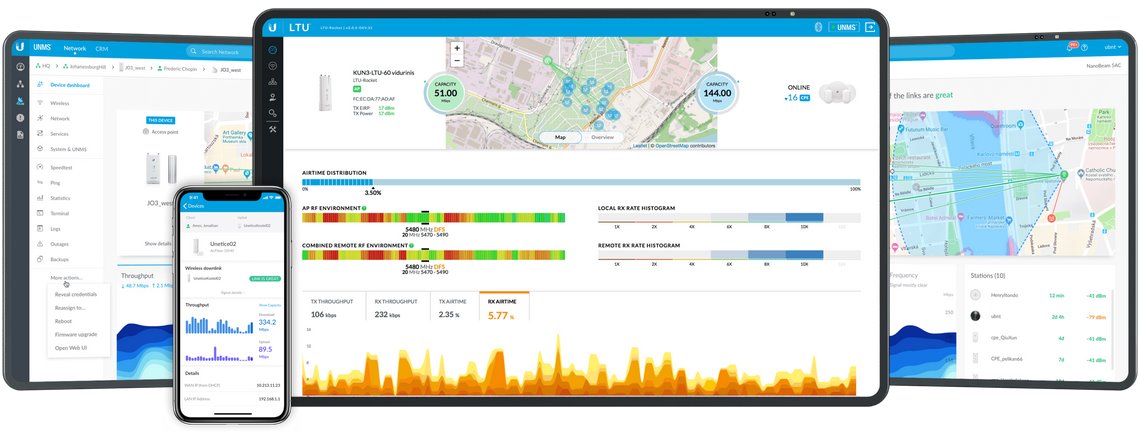

In addition to its own web management, LTU products are also supported by UISP software (UNMS) for central control and management of Ubiquiti devices.

UBNT LTU-XR

Package contents

  • Device (emitter)
  • Antenna - 3 parts
  • Mast holder
  • (3) Metal zip ties
  • Screws
  • Gigabit PoE power adapter 24 V/0.5 A
  • Power cord

Download

https://download.discomp.cz/ubiquiti/datasheets/ltu-xr_ds.pdf
Download Datasheet
https://download.discomp.cz/ubiquiti/QSG/ltu-xr.pdf
Download Installation guide

Technical parameters

LAN ports
Power over Ethernet
22 .. 26V DC
Protection class
IPX6
Maximum modulation
1024 QAM
Operating mode
Client, Client Router (wisp)
Wireless frequency
5 GHz
WiFi standards
LTU
Tx power 5GHz [dBm]
25
Security
WPA2 AES
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
29
Operating system
airOS LTU
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
8,5
Buttons
Reset
Operating temperature [°C]
-40 up to 55
Weight [g]
3200
Width [mm]
747
Height [mm]
525
Depth [mm]
347
IPv6 support
Yes
Default IP address
192.168.1.20
Default login and password
ubnt / ubnt
GPS modul
Yes
