TP-Link EAP650-wall Access Point

Product description

EAP650-wall is a wireless Access Point from the TP-Link brand, from the EAP family and is intended for indoor use with surface mounting on a box. Dual-band AP supporting WiFi standards 802.11a/b/g/n/ac/ax and it is 2×2 MIMO on both 2.4GHz and 5GHz parts with modulation rates of 574 + 2402 Mbps, four built-in antennas with gain of 3 and 5 dBi and double capacity thanks to 160 MHz wide channels in the 5GHz band.

LAN and PoE

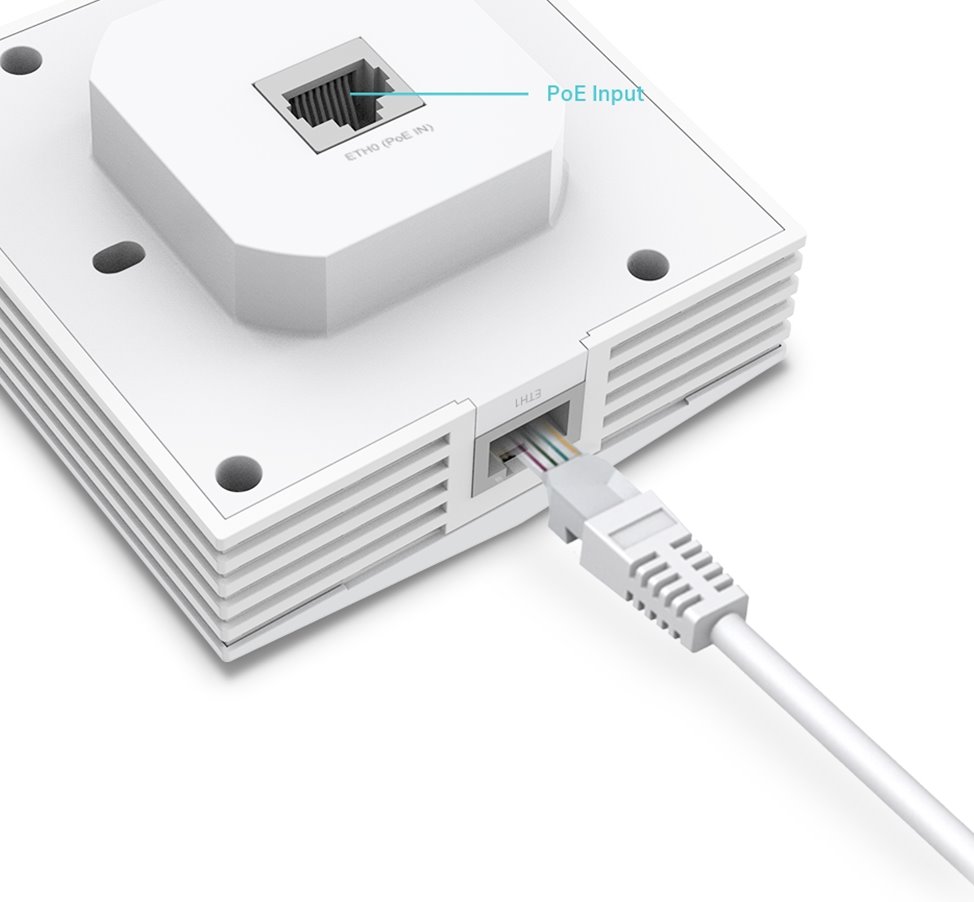

The AP has two 10/100/1000 Mbps LAN ports of which the first port supports PoE IN (802.3af/at standards) and is located on the back of the device - towards the plastic box in the wall. The second Gigabit port is located on the bottom of the device and is intended only as a data port without PoE.

Key Features

• Central management of EAP units via Omada SDN controller
• 2× 10/100/1000 Mbps LAN
• Support PoE In, support 802.3af/at PoE
• Fast WiFi - 574 Mbps (2.4 GHz), 2402 Mbps (5 GHz)

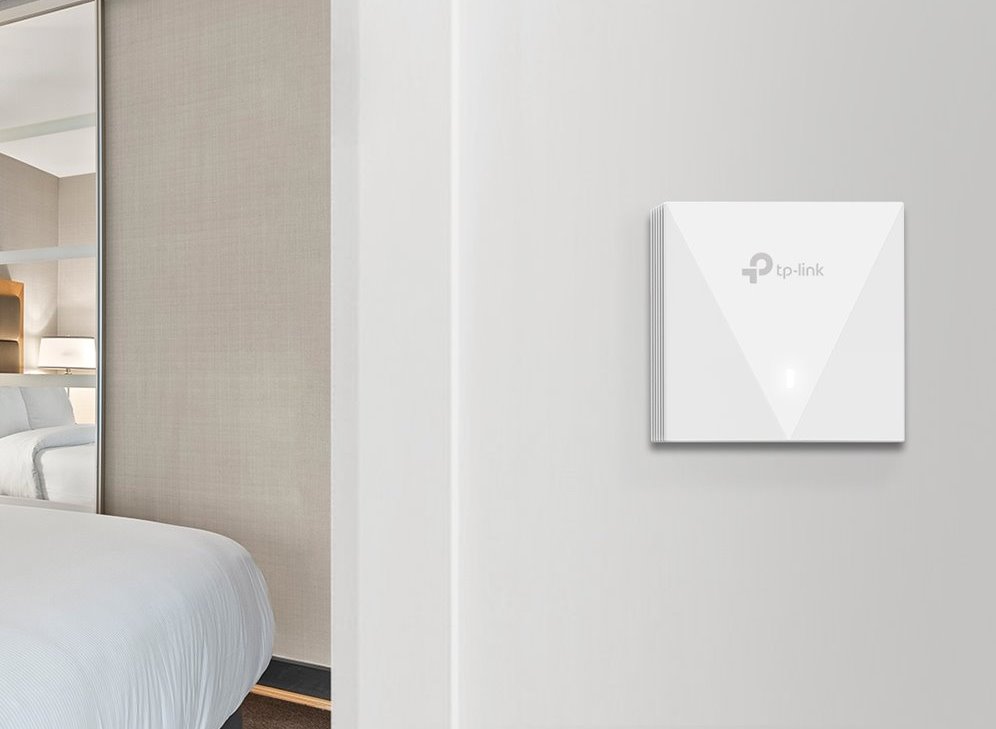

• The design enables easy installation in wall electrical installation boxes for EU and US standardized network distribution
• Compact design with a slim profile and simple assembly
• Function support: Airtime fairness, Band steering and Beamforming

Package contents

• Device
• Mounting screws

Download

https://download.discomp.cz/TP-link/Datasheets/EAP_Datasheet.pdf

Datasheet
