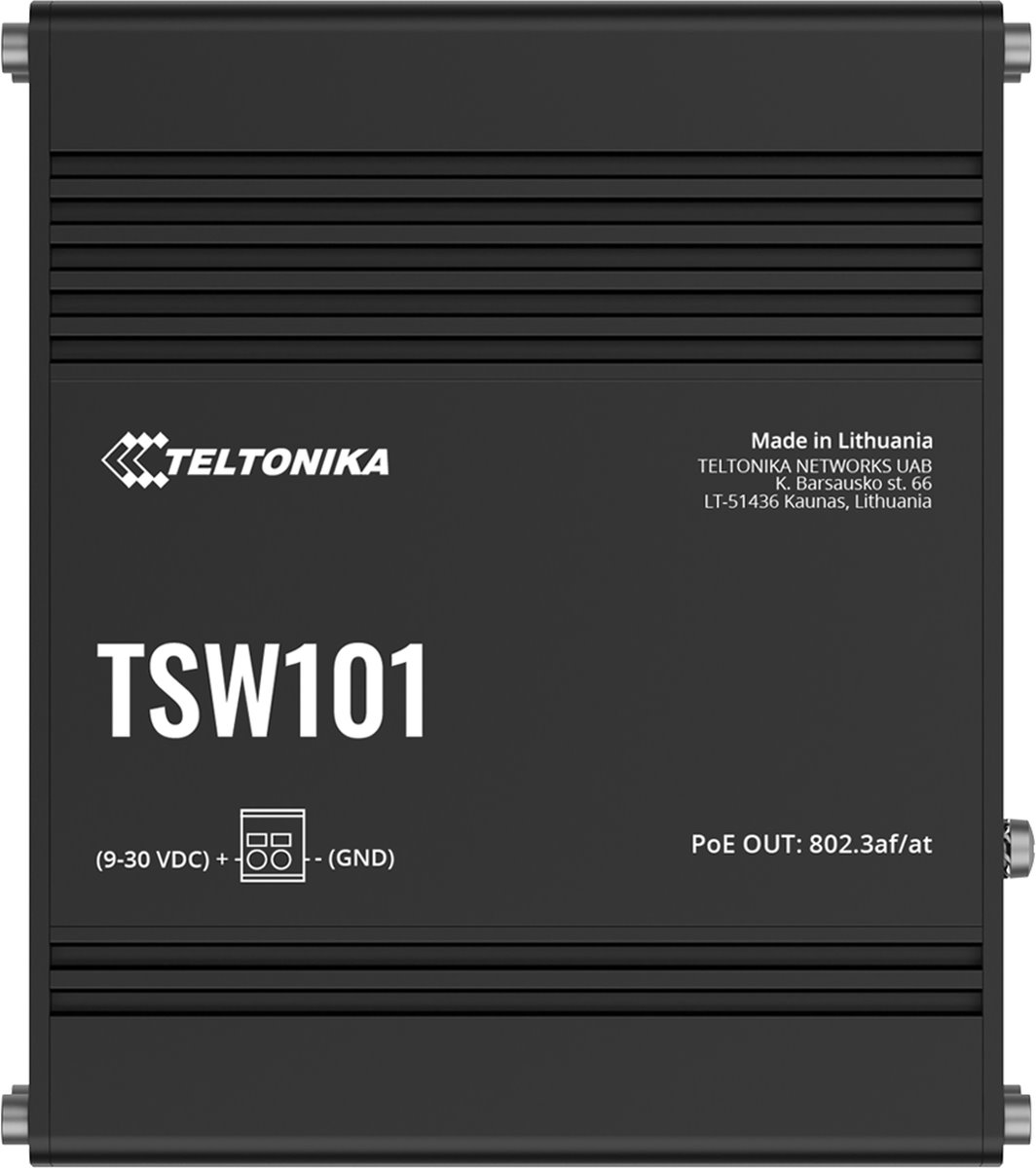

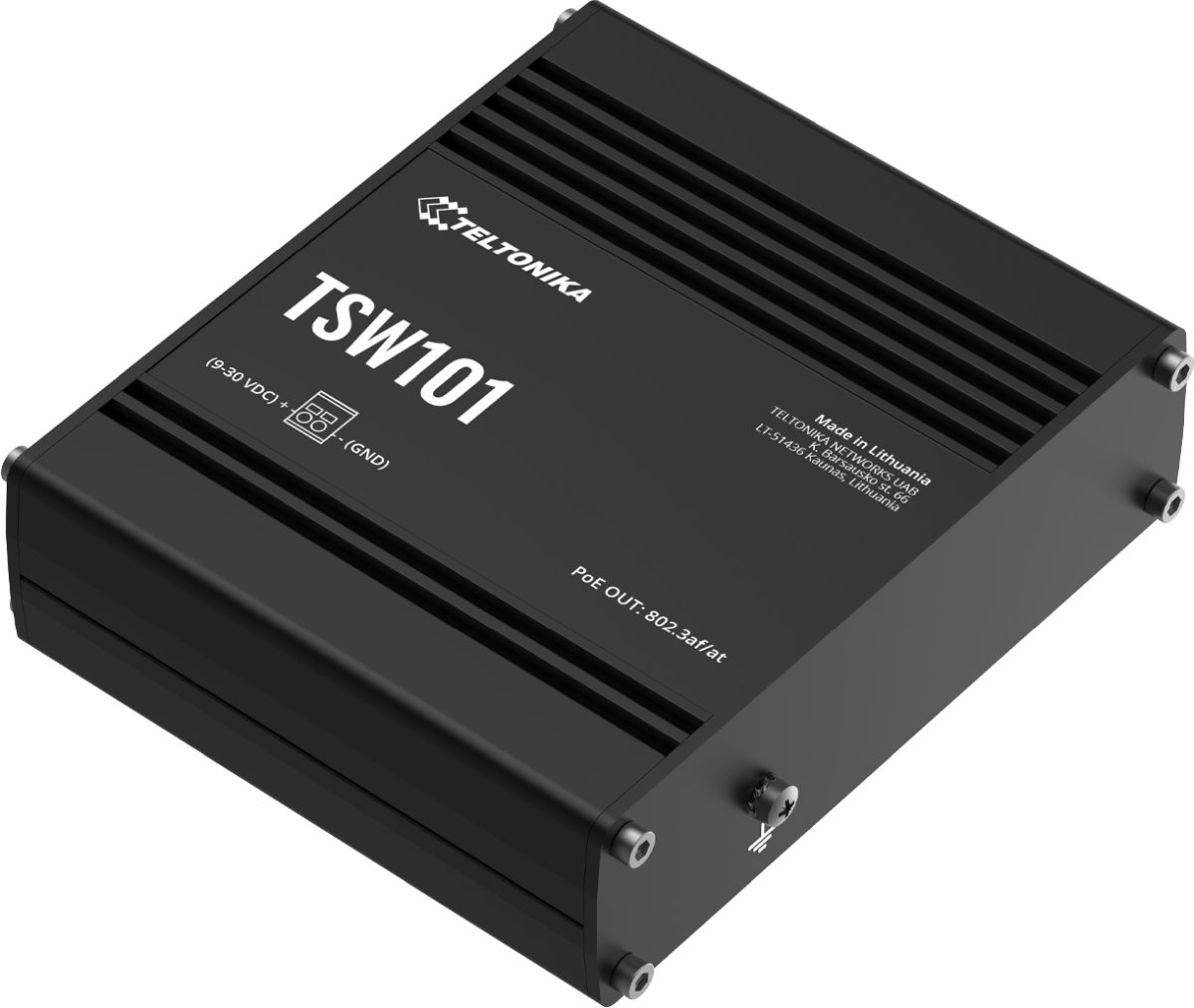

Teltonika TSW101 Industrial PoE unmanaged switch
Your price incl. VAT (20.0%)
114.96 BGN
✅ In Stock 20+ Бр.
Planned Delivery Date by Courier to you 11-12-2024
Product description

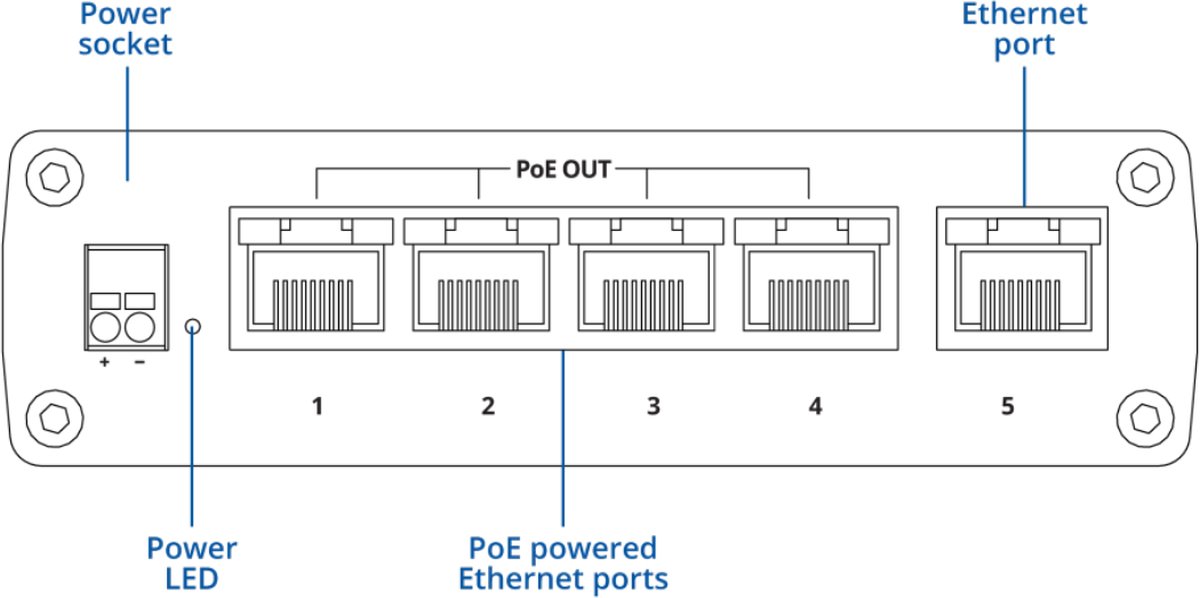

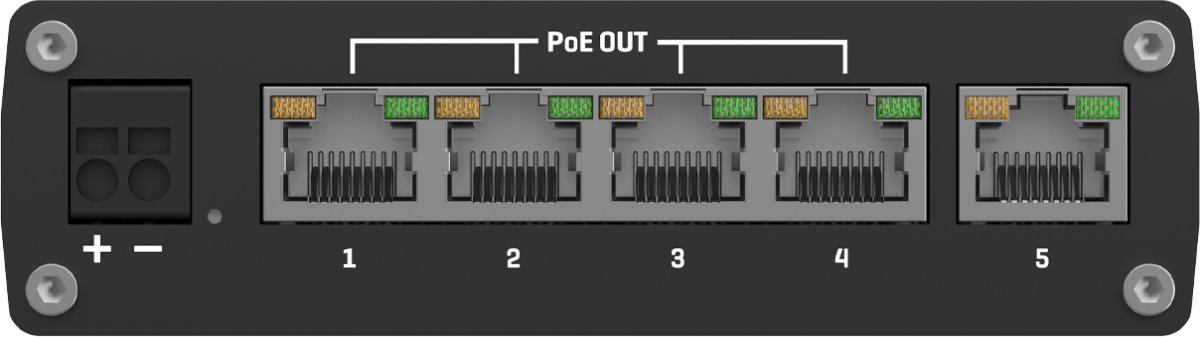

TSW101 is an industrial POE Switch from Teltonika Networks with aluminum body, passive cooling, without management and after buying the kit it is possible to install the switch on the DIN bar. The device offers 5 LAN ports with a speed of 10/100/1000 Mbps and with 802.3af/at Poe (30 W/port) on the first four ports with a total poe budget 60 W. The power supply is solved by a 2-pin terminal block with input voltage 9 to 30 V.

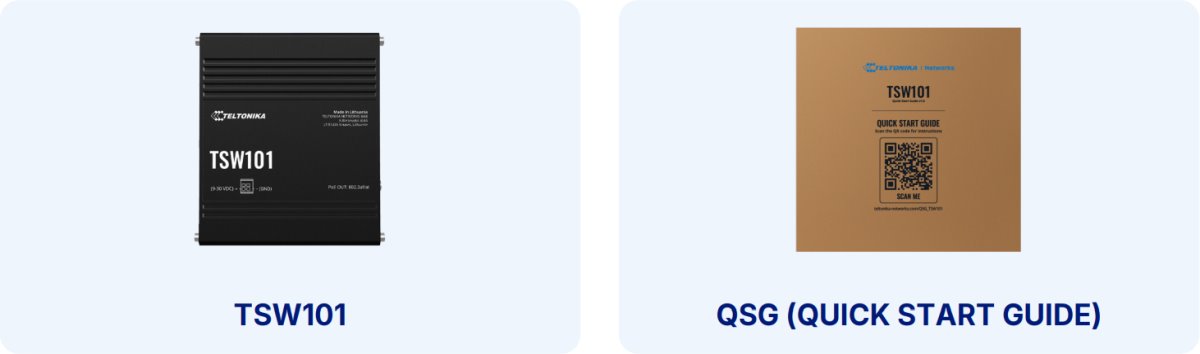

Package content
- TSW101
Download
Technical parameters
LAN ports
Protection class
IP30
Design
Desktop
Switchning capacity [Gbps]
10
MAC address table
2000
Power type
DC terminal
Fans
No
LAN ports
5
LAN speed
(5) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
PoE-Out standards
802.3af, 802.3at
PoE Out ports
4
PoE budget [W]
60
Max. power consumption [W]
2,3
Chassis design
Metal
Power via connector/terminal
9 .. 30V DC
Operating temperature [°C]
-40 up to 75
Width [mm]
115
Height [mm]
32
Depth [mm]
95
