Teltonika TSW010 Din Rail Switch
Your price incl. VAT (20.0%)
42.65 BGN
✅ In Stock 90+ Бр.
Planned Delivery Date by Courier to you 04-12-2024
Product description
TSW010 offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required. Wide range of supported power supply voltages (9-30 V) and rugged design make it suitable for professional solutions. Compact size and integrated DIN rail bracket enable easy installation across different industrial environments.
Key features
- 5 LAN ports with speeds up to 100 Mbps
- Compact size
- DIN rail mounting option
- Plug and Play - No additional configuration needed
Package contents
- Device
- QSG (Quick Start Guide)
- Packaging box
Download
Technical parameters
LAN ports
Design
DIN rail
MAC address table
2000
Jumbo frame [Bytes]
2048
Power type
DC connector
LAN ports
5
LAN speed
(5) 10/100Mbps
Max. LAN ports speed
100M
Max. power consumption [W]
1
Chassis design
Metal
Power via connector/terminal
9 .. 30V DC
Operating temperature [°C]
-40 up to 75

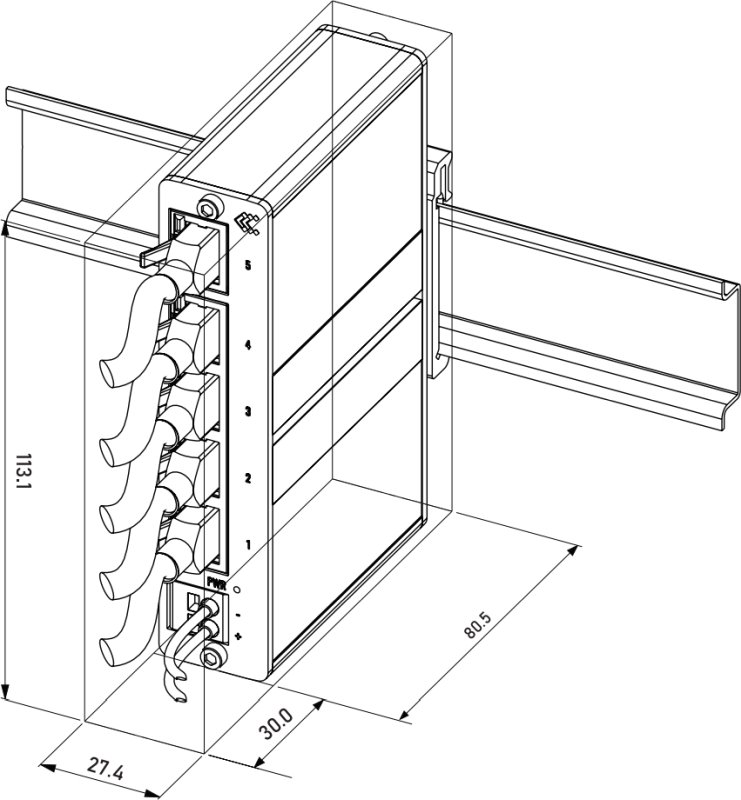

Width [mm]
113
Height [mm]
27
Depth [mm]
81
