Teltonika TSW114 Gigabit Din Rail Switch
Your price incl. VAT (20.0%)
71.77 BGN
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 04-12-2024
Product description
Teltonika TSW114 is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.

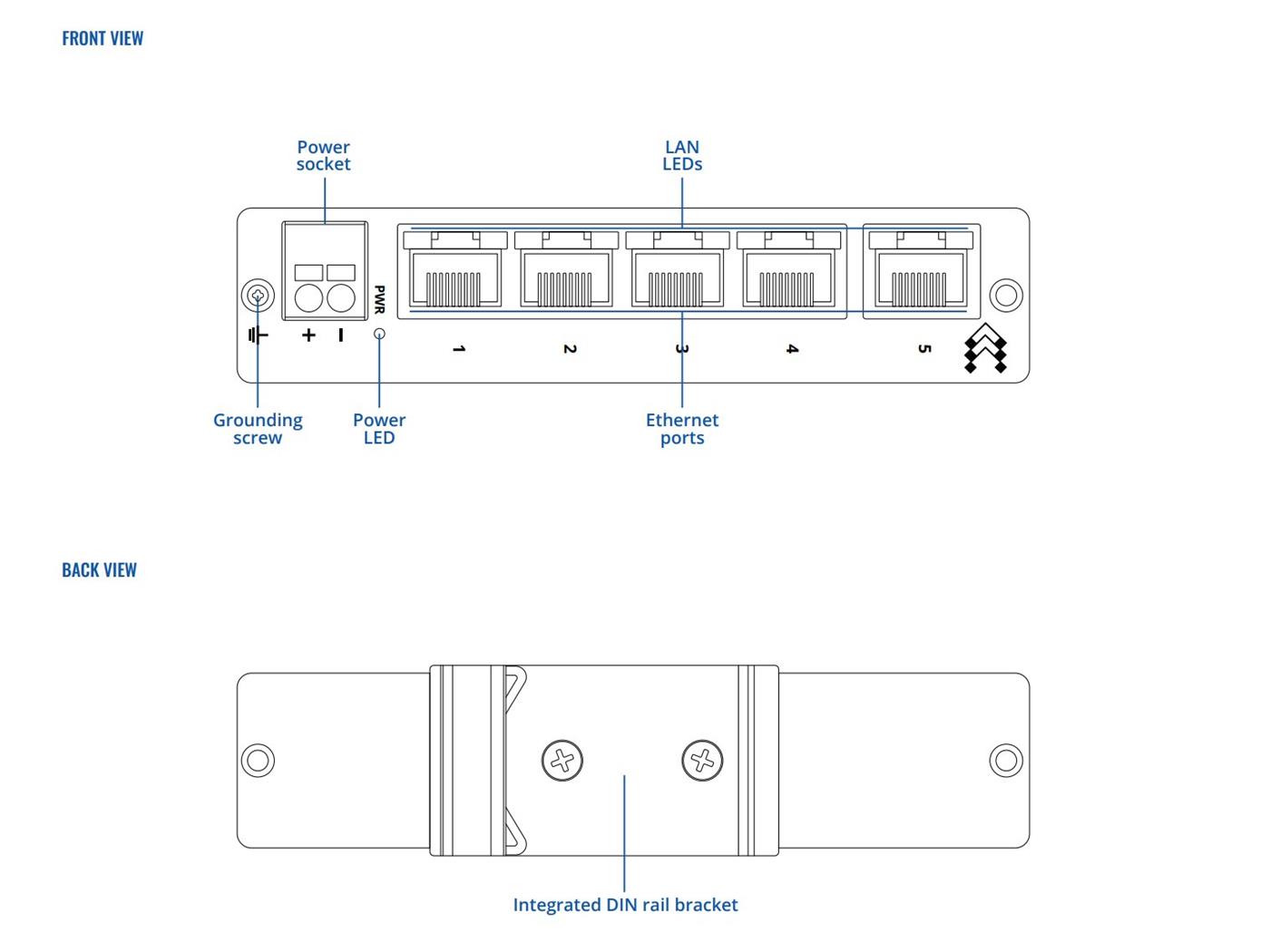

EASY MOUNTING
Integrated DIN rail bracket and front-facing ports
GIGABIT ETHERNET
5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
COMPACT & DURABLE
Rugged anodized aluminum housing that fits in your pocket
PLUG AND PLAY
No additional configuration needed
Package Contains
- Device
- QSG (Quick Start Guide)
Download
Technical parameters
LAN ports
Jumbo frame [Bytes]
9216
Protection class
IP30
Design
DIN rail
Switchning capacity [Gbps]
10
MAC address table
2000
Power type
DC connector
Fans
No
LAN ports
5
LAN speed
(5) 10/100/1000Mbps
Max. LAN ports speed
1G
Gigabit LAN
Yes
Max. power consumption [W]
2,3
Chassis design
Metal
Power via connector/terminal
9 .. 30V DC
Operating temperature [°C]
-40 up to 75
Weight [g]
174
Depth [mm]
81
Width [mm]
113
Height [mm]
28
