TP-Link TL-SG3428X-M2 JetStream Switch

TP-Link TL-SG3428X-M2 JetStream Switch
Your price incl. VAT (20.0%)
974.33 BGN
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
TP-Link
Manufacturer
Product number
TL-SG3428X-M2
Product Code
RL025.462
Warranty
72 months

Product description

The switch provides 24x 100/1000/2500 Mbps LAN ports for clients and in addition 4x optical SFP+ ports serving primarily as an uplink with a total switching capacity of 200 Gbps. For management and monitoring, it is possible to use common access via web interface and protocols, e.g. CLI, SNMP, RMO, but also centralized cloud management and software controller. Omada hardware controller (OC200/OC300) is also supported.

Switch loaded with features

The switch provides high performance routing based on IP, MAC, TCP or UDP. All combined with advanced security strategies (IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication... .). With all these advanced features, the gigabit L2+ JetStream switch is an ideal choice for SMB network solutions.

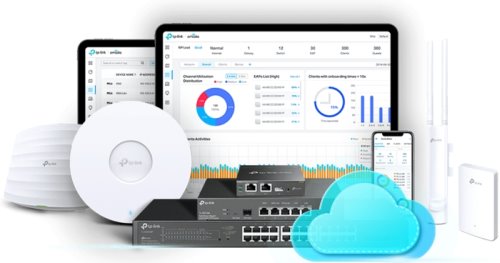

Omada Controller

The Omada Software Defined Networking (SDN) platform integrates network devices, including Access Points, Switches, Gateway routers and provides 100% centralized management in the cloud. Omada creates a highly scalable network including control from a single interface. Provides seamless wireless and wired connectivity, ideal for use in hospitality, education, retail, offices and more.

TP-Link TL-SG3428X-M2

Package contents

  • Device
  • Power cord
  • Mounts for 19" rack

Download

https://download.discomp.cz/tp-link/datasheets/10-Gigabit_L2_Managed_Switch.pdf
Download Datasheet

Technical parameters

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
200
MAC address table
32000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
148,8
Web management
Yes
Management
Web management, SSH, Telnet, Omada controller
Features
VLAN, QoS, DHCP snooping
Power type
Mains power (230V)
Fans
Yes
LAN ports
24
LAN speed
(24) 100M/1G/2.5G
Max. LAN ports speed
2.5G
SFP+ cages
4
Optical interfaces
(4) 10Gbps
Max. power consumption [W]
45
Serial port
RJ45, micro USB
Chassis design
Metal
Power via connector/terminal
230V AC
Operating temperature [°C]
0 up to 45
Width [mm]
440
Height [mm]
44
Depth [mm]
180
Default IP address
192.168.0.1
Default login and password
admin / admin
