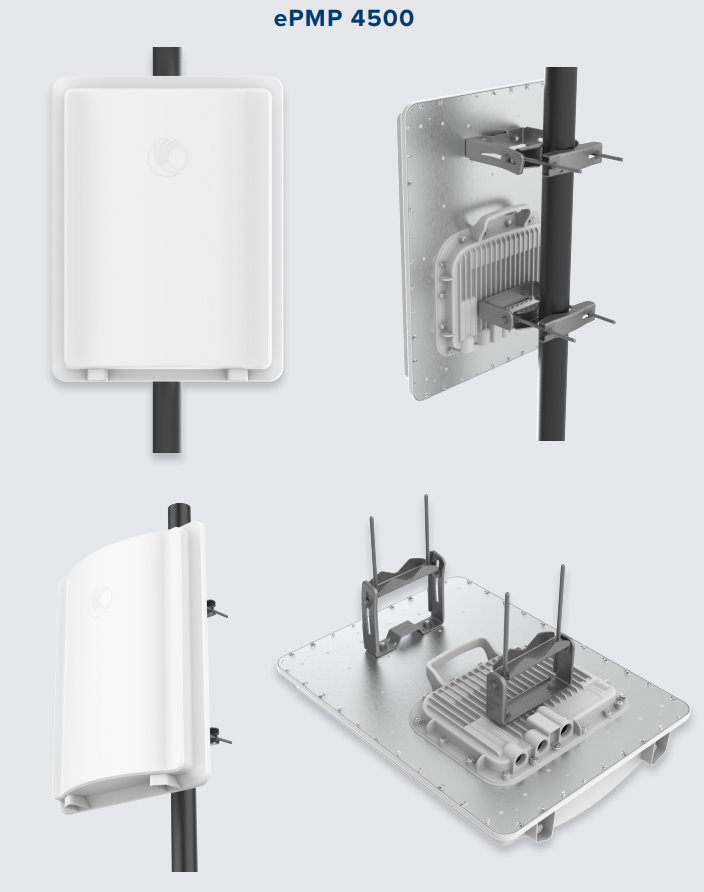

Cambium Networks ePMP 4500 5 GHz 8x8 Integrated Access Point Radio (EU)

Cambium Networks ePMP 4500 5 GHz 8x8 Integrated Access Point Radio (EU)
Your price incl. VAT (20.0%)
5,704.92 BGN
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
Cambium Networks
Manufacturer
Product number
C050940A223A
Product Code
RL026.379
Warranty
36 months

Product description

ePMP 4500

The ePMP 4500 delivers up to 4 Gbps and supports up to 120 subscriber modules. Featuring 8x8 MU-MIMO, the 5 GHz ePMP 4500 can transmit to four Force 400 SM’s at the same time. This effectively quadruples the capacity of 2x2 systems and in the process, increases link budgets by 6 dB with downlink beamforming. The ePMP 4500 has an integrated 90o 8x8 MU-MIMO sector antenna. With TDD synchronization, ePMP 4500 networks can scale to thousands of end users leveraging a small number of channels.

High-performance, scalable and reliable access points for fixed wireless broadband

ePMP 4500 features MU-MIMO and up to 4 Gbps in performance

Low TCO with three-year hardware warranty

Interoperable with all Force 400 and Force 300 Subscriber Modules*

*Force 300 backward compatibility to be supported in future firmware release

All ePMP 4500 Access point series are managed with cnMaestro™, and networks can be planned with LINKPlanner. Both are available from Cambium Networks at no charge.

Link to cnMaestro™:

Link to LINKPLanner:

Cambium Networks ePMP 4500 5 GHz 8x8 Access Point (EU)

Download

https://download.discomp.cz/cambium/Datasheet/Cambium_Networks_data_sheet_ePMP_4500_Series.pdf
Download Datasheet
https://download.discomp.cz/cambium/QG/ePMP4500inst.pdf
Download Assembly Instructions

Technical parameters

LAN ports
Power over Ethernet
802.3bt
SFP cage
Yes
Protection class
IP67
Operating mode
Access Point
Management
Web management, Cambium cnMaestro cloud
Wireless frequency
5 GHz
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11ax
Transmission speed - 5GHz [Mb/s]
4000
Tx power 5GHz [dBm]
34
Security
128bit AES
5GHz MIMO
8 x 8
Type of antenna
Built-in
Internal antennas
8
Purpose
Outdoor
Antenna gain [dBi]
34
Power type
PoE
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Optical interfaces
(1) 10Gbps
Max. power consumption [W]
32
Operating temperature [°C]
-30 up to 55
Weight [kg]
14,7
Width [mm]
487
Height [mm]
643
Depth [mm]
157
IPv6 support
Yes
Default IP address
192.168.0.1, Dynamic from DHCP
Default login and password
admin / admin
GPS modul
Yes
