TP-Link EAP211-Bridge KIT Outdoor Bridge / Access Point

TP-Link EAP211-Bridge KIT Outdoor Bridge / Access Point
Your price incl. VAT (20.0%)
356.65 BGN
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
TP-Link
Manufacturer
Product number
EAP211-Bridge KIT
Product Code
RL027.057
Warranty
60 months

Product description

Using the TP-Link EAP211-Bridge KIT, you can easily create a transparent link over distances up to 1km. Thanks to the 802.11ac standard, it achieves link speeds up to 867Mbps in the 5GHz band. It supports technologies such as Mesh, MU-MIMO, Beamforming. For the most efficient deployment, the units support automatic pairing and integration into Omada SDN for remote and centralized management.

Each unit features (3) 10/100/1000Mbps Ethernet ports, a reset button and a grounding terminal. LEDs are located on the side of the device to indicate device status, Ethernet connection and signal level. The first of the Ethernet ports supports passive POE 24V input, while the second power option is provided by a DC connector for 12V. Mounting of the units to the pole is accomplished with the included plastic ties.

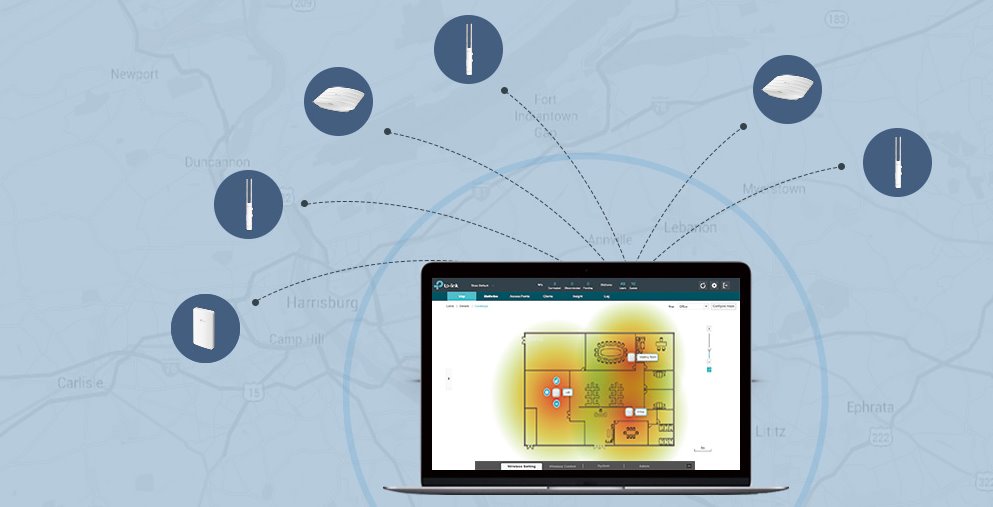

Efficient centralized network management

Thanks to Omada's controller software, small and medium-sized businesses can control hundreds of indoor and outdoor access points from a single location. And this is network management the way it should be - efficient and intuitive.

EAP211-Bridge KIT

Package contents

  • (2) Device
  • (2) 24V PoE power adapter
  • (2) Power cord
  • (4) Plastic ties
  • (4) Screws and dowels

Download

https://download.discomp.cz/TP-LINK/Datasheets/EAP211-Bridge KIT.pdf
Download Datasheet
https://download.discomp.cz/TP-LINK/Userguides/Omada_EAP_UG.pdf
Download User Guide

Technical parameters

LAN ports
Power over Ethernet
24V DC
Sensitivity [dBm]
-94
Operating mode
Access Point, Bridge
Wireless frequency
5 GHz
WiFi standards
802.11n, 802.11a, 802.11ac
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
28
5GHz MIMO
2 x 2
Elevation beam width (-6dB) [°]
90
Azimuth beam width (-6dB) [°]
90
Type of antenna
Built-in
Internal antennas
1
Purpose
Outdoor
Antenna gain [dBi]
7
LAN ports
3
LAN speed
(3) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
11,5
Power via connector/terminal
12V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
280
Depth [mm]
79
Width [mm]
60
Height [mm]
224
Default IP address
Dynamic from DHCP
Default login and password
admin / admin
