Teltonika TSF010 Flat Ethernet Switch
Your price incl. VAT (20.0%)
61.94 BGN
Ordered for stock
Planned Delivery Date by Courier to you 11-12-2024
Product description

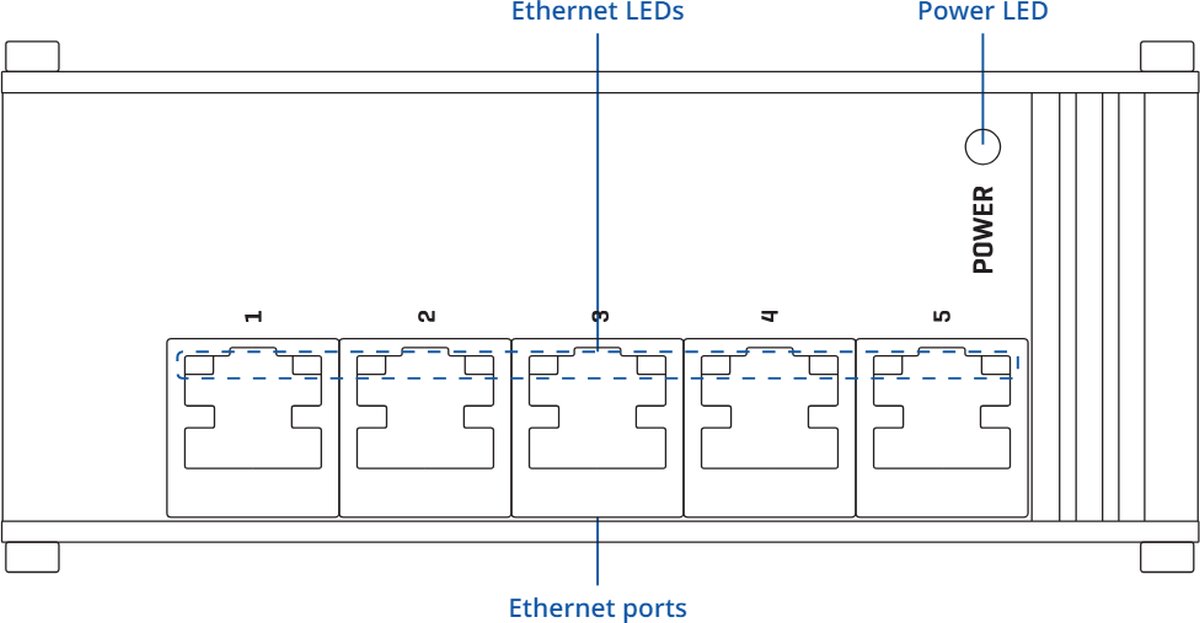

Teltonika TSF010 FLAT ETHERNET SWITCH is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
Package contents
- Device
- 3-pin power connector
- QSG (Quick Start Guide)
- Packaging box
Download
Technical parameters
LAN ports
Design
Industry, DIN rail
MAC address table
2000
Jumbo frame [Bytes]
9216
Power type
DC connector
LAN ports
5
LAN speed
(5) 10/100Mbps
Max. LAN ports speed
100M
Max. power consumption [W]
1,5
Chassis design
Metal
Power via connector/terminal
7 .. 57V DC
Operating temperature [°C]
-40 up to 75
Width [mm]
113
Height [mm]
28
Depth [mm]
50
