Teltonika TSW030 8-port Ethernet Switch
Your price incl. VAT (20.0%)
76.85 BGN
❌ The item is not available. There is no option to order.
No confirmed delivery date
Product description

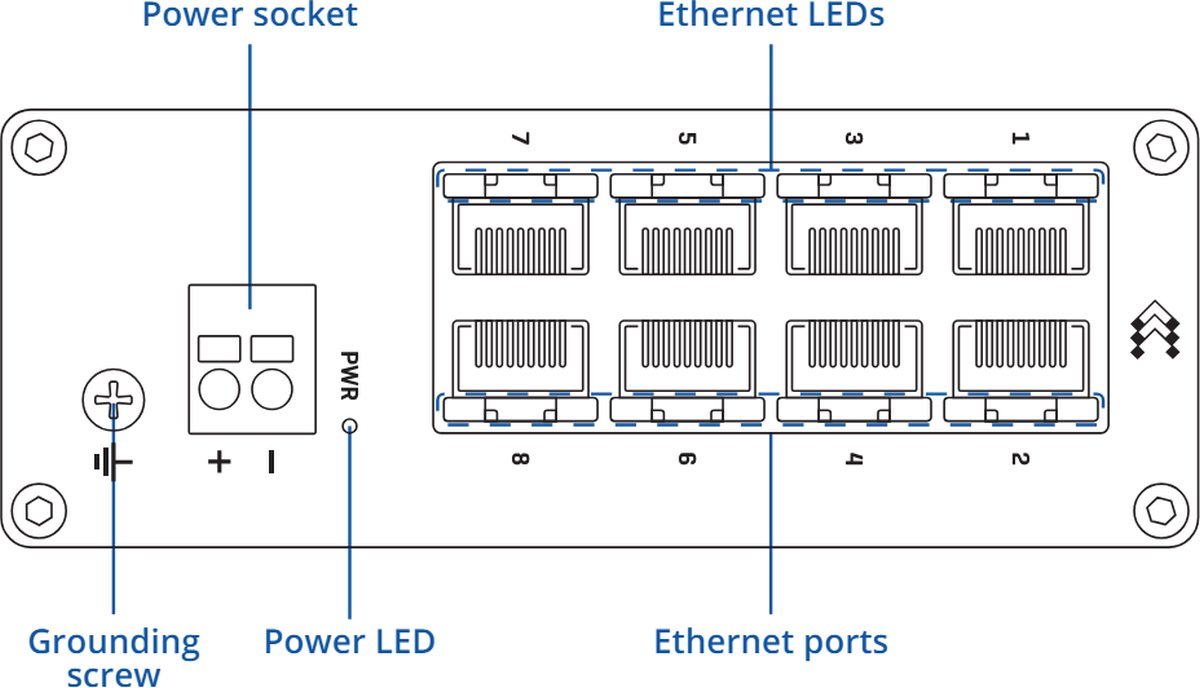

The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.
Package contents
- Device
- QSG (Quick Start Guide)
- Packaging box
Download
Technical parameters
LAN ports
Protection class
IP30
Design
DIN rail, Industry
MAC address table
2000
Jumbo frame [Bytes]
9216
Power type
DC terminal
LAN ports
8
LAN speed
(8) 10/100Mbps
Max. LAN ports speed
100M
Max. power consumption [W]
1,5
Chassis design
Metal
Power via connector/terminal
7 .. 57V DC
Operating temperature [°C]
-40 up to 75
Weight [g]
256
Width [mm]
113
Height [mm]
41
Depth [mm]
75
