TP-Link SG6428X Omada 24-Port Gigabit Stackable L3 Managed Switch
Your price incl. VAT (20.0%)
3,460.60 BGN
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 04-12-2024
6059.43 BGN excl. VAT
12.44 BGN excl. VAT
19.58 BGN excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
26.17 BGN excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
26.17 BGN excl. VAT
Product description
Omada SG6428X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 24× gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
Key features
- 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit
- Physical Stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X

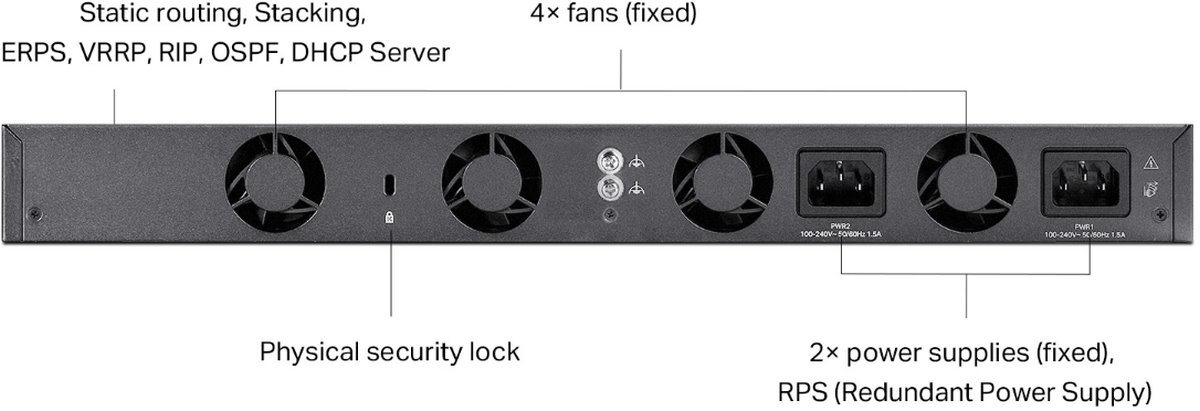

- Highly Available with two internal fixed power supplies, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Package contents
- Device
- (2) Power cords
- RJ45 console cable
- Quick Installation Guide
- Rackmount Kit
- Rubber feet
Download
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
128
MAC address table
32000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
95,2
Web management
Yes
Management
Omada controller, SSH, Telnet, Web management
Features
DHCP snooping, L3, QoS, Physical stacking, VLAN
Power type
Mains power (230V)
Fans
Yes
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
Max. LAN ports speed
1G
Management LAN
(1) 10/100Mbps
SFP+ cages
4
Optical interfaces
(4) 10Gbps
Redundant power supply
Yes
Max. power consumption [W]
29
Serial port
USB-C, RJ45
Chassis design
Metal
USB ports 2.0
2
Power via connector/terminal
230V AC
Buttons
Switch mode
Operating temperature [°C]
-5 up to 50
Width [mm]
440
Height [mm]
44
Depth [mm]
380
Default IP address
192.168.0.1
Default login and password
admin / admin
