TP-Link SG3452XMPP,Omada managed switch L2+, PoE++, 750W
Your price incl. VAT (20.0%)
2,193.97 BGN
Ordered for stock
No confirmed delivery date
12.17 BGN excl. VAT
19.15 BGN excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
25.60 BGN excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
25.60 BGN excl. VAT
Product description

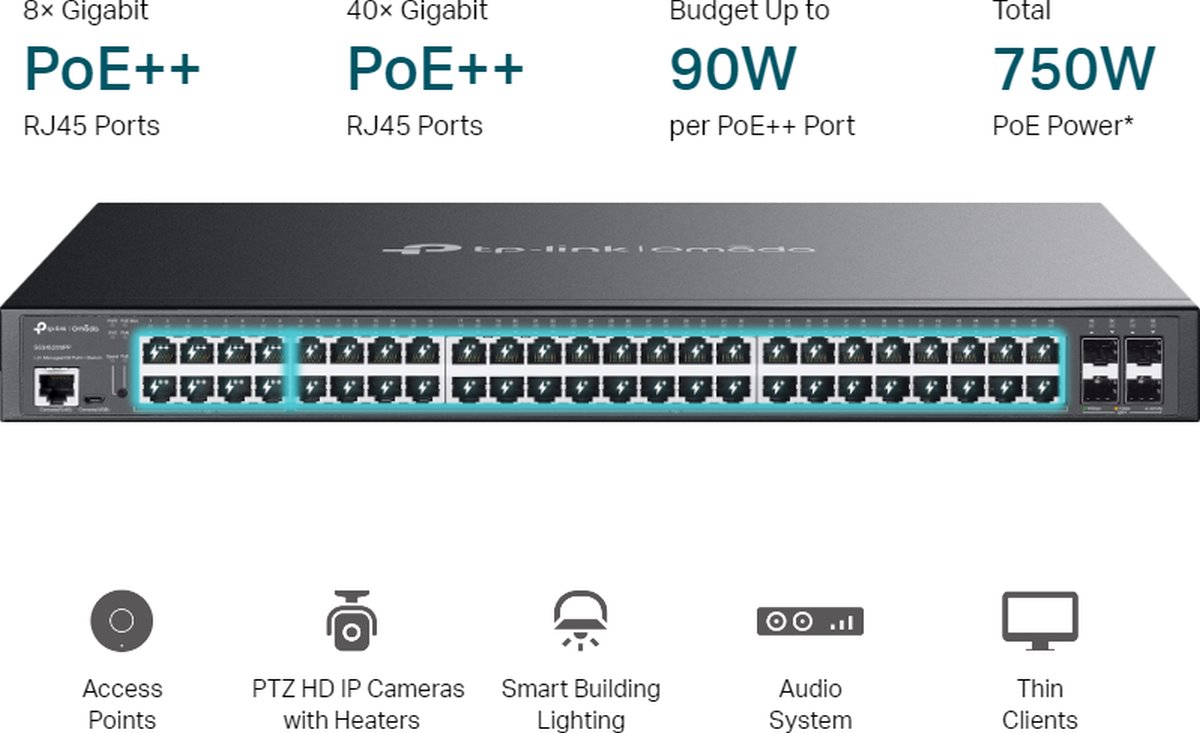

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++ PORT: 40× Gigabit PoE+ Ports, 8×Gigabit PoE++ Ports (max 90W/port), 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3bt/at/af, 750 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6Download
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
176
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
130
Web management
Yes
Management
Web management, Omada controller
Features
VLAN, QoS, L2+
Power type
Mains power (230V)
Fans
(3) 40 x 40 mm
LAN ports
48
LAN speed
(48) 10/100/1000Mbps
Max. LAN ports speed
2.5G
PoE type
PoE-Out (only)
SFP+ cages
4 (1G/10G support)
Optical interfaces
(4) 1G/10Gbps
PoE-Out standards
802.3af, 802.3at, 802.3bt, 802.3at - ultra PoE (60W)
PoE Out ports
48
PoE budget [W]
750
Max. power consumption [W]
913
Serial port
RJ45, micro USB
Chassis design
Metal
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
0 up to 40
Width [mm]
440
Height [mm]
44
Depth [mm]
330
