Ubiquiti PowerBeam M5 ISO 300mm, outdoor, 5GHz MIMO, 2x 22dBi, AirMAX ISO

Product description

Ubiquiti PBE-M5-300-ISO is a powerful completely outdoor unit including 2x 22dBi (2x2 MIMO) antennas for the 5GHz band as a PtP solution. The unit allows transmission speed up to 300Mbps.

Inside PowerBeam is a powerful MIPS processor Atheros 74KC with 560MHz frequency, 64MB RAM DDR2 memory and 8MB of Flash memory. Unit has also one ethernet port supports 10/100Mbps speed, and passive PoE 24V / 0.5A (802.3af PoE is not supported).

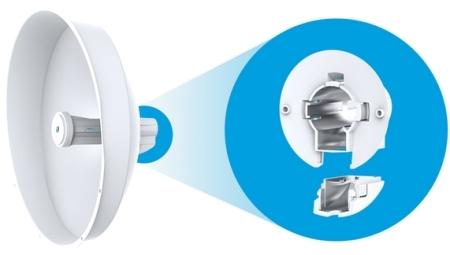

The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.

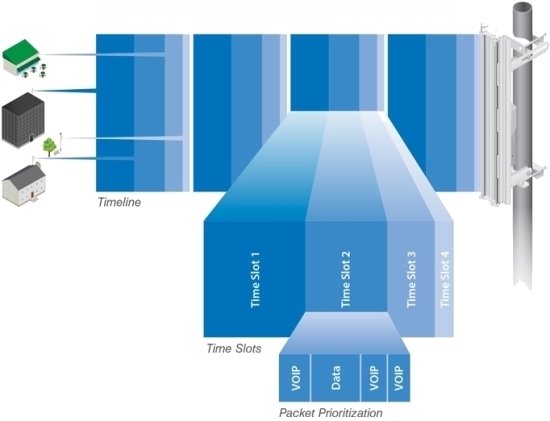

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in multipoint networks.

Package contains

• Device
• Dish
• Rear housing
• PoE adapter
• Power cord
• Holder + screws
