Ubiquiti LiteBeam M5-23, outdoor, 5GHz, 23dBi, AirMAX
Your price incl. VAT (20.0%)
91.07 BGN
Ordered for stock
Planned Delivery Date by Courier to you 19-06-2024
15.94 BGN excl. VAT
Product description
The LiteBeamM provides 23dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity. Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds – no tools needed = only a single wrench is required for pole-mounting.
A lightweight form factor contained within ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.
This Device is the most Cost-Effective airMAX CPE (since 5.6.3 firmware can works as Acess point) yet.

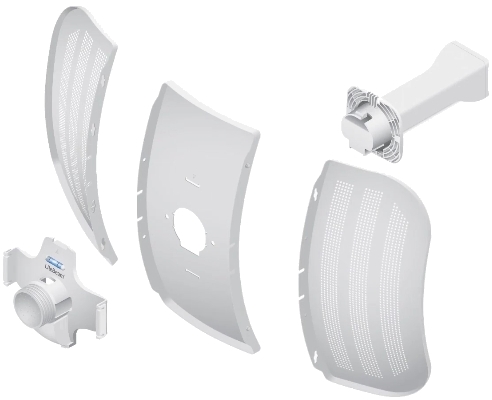

Package contains
- Antenna feed
- (3) Reflector panel
- Feed receiver
- Ball joint mount
- PoE power adapter
- Power cord
- Metal strap
Download
Technical parameters
LAN ports
Power over Ethernet
24V DC
Operating mode
Client, Client Router (wisp), Access Point, AP Router
Wireless frequency
5 GHz
WiFi standards
802.11a, 802.11n, airMAX
Transmission speed - 5GHz [Mb/s]
150
Tx power 2.4GHz [dBm]
25
Security
WPA2 AES
5GHz MIMO
1 x 1 SISO
Type of antenna
Built-in
Internal antennas
1
Purpose
Outdoor
Antenna gain [dBi]
23
LAN ports
1
LAN speed
(1) 10/100Mbps
PoE type
PoE-In (only)
Max. power consumption [W]
4
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
750
Width [mm]
362
Height [mm]
267
Depth [mm]
184
CPU
MIPS 74Kc
CPU frequency [MHz]
560
IPv6 support
Transparent (bridge mode)
Default IP address
192.168.1.20
RAM [MB]
64
Default login and password
ubnt / ubnt
