TP-Link SX3032F - Omada 32-Port 10G SFP+ L2+ Managed Switch
Your price incl. VAT (20.0%)
1,897.92 BGN
Ordered for stock
No confirmed delivery date
12.66 BGN excl. VAT
19.89 BGN excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
26.60 BGN excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
26.60 BGN excl. VAT
Product description

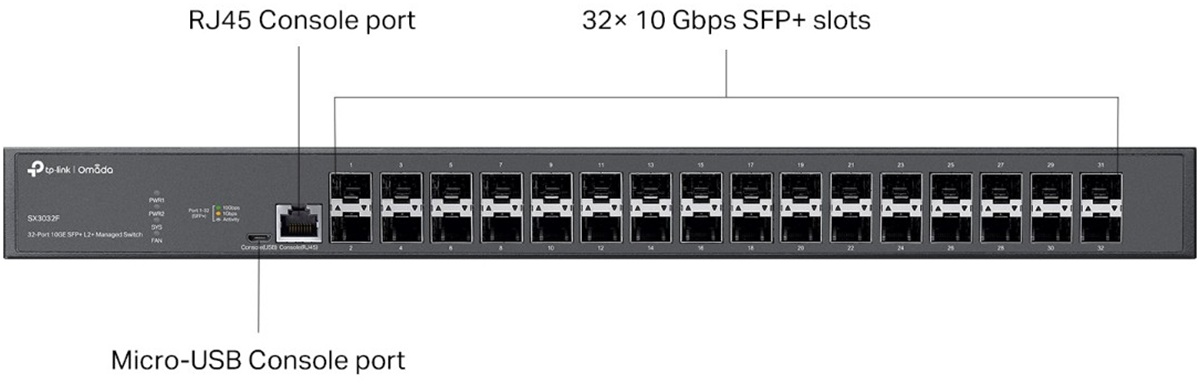

Omada 32-Port 10GE SFP+ L2+ Managed Switch PORT: 32× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, DHCP Server, ERPS, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, Internal Fixed Dual Redundant Power SuppliesDownload
Technical parameters
LAN ports
Design
Desktop, Rackmount
Jumbo frame [Bytes]
9000
Switchning capacity [Gbps]
640
Packet forwarding rate [Mpps]
235
Web management
Yes
Management
Web management, SSH, Omada controller
Features
VLAN, QoS, DHCP snooping, L2+
Power type
Mains power (230V)
Fans
Yes
SFP+ cages
32
Optical interfaces
(32) 1G/10Gbps
Redundant power supply
Yes
Max. power consumption [W]
50
Serial port
RJ45, micro USB
Chassis design
Metal
Operating temperature [°C]
-5 up to 45
Width [mm]
440
Height [mm]
44
Depth [mm]
330
Default IP address
192.168.0.1
Default login and password
admin / admin
