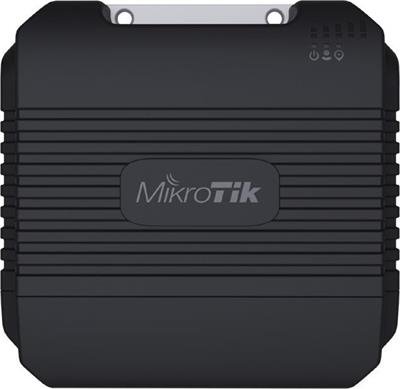

MikroTik LtAP-2HnD&FG621-EA&LR8G, LtAP LR8G LTE6 kit

Design

Outdoor, On the wall

Protection class

IP54

Power over Ethernet

12 .. 30V DC

Wireless frequency

2.4 GHz, LTE, 863 - 870 MHz

WiFi standards

802.11n, 802.11b/g

Transmission speed - 2.4GHz [Mb/s]

300

Tx power 2.4GHz [dBm]

25

2.4GHz MIMO

2 x 2

Type of antenna

Built-in

Internal antennas

2

RF connectors

(2) SMA female

Antenna gain [dBi]

2,5

Integrated 4G/LTE radio part

Yes

Power type

DC connector, PoE, 4-pin automotive

4G/LTE bands support

(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (28) 700 MHz

Operating system

RouterOS - L4

LAN ports

1

LAN speed

(1) 10/100/1000Mbps

Gigabit LAN

Yes

PoE type

PoE-In (only)

Max. power consumption [W]

24

Serial port

RS-232

Power via connector/terminal

12 .. 30V DC

Buttons

Reset

Operating temperature [°C]

-40 up to 70

Depth [mm]

40

Height [mm]

170

Width [mm]

162

CPU

MT7621AT

CPU frequency [MHz]

880

CPU cores

2

MiniPCI-e slots

2

SIM slot

Yes

SIM slots quantity

3

USB

Yes

IPv6 support

Yes

Internal storage [MB]

16

Default IP address

192.168.88.1

RAM [MB]

128

GPS modul

Yes
