Ubiquiti UACC-Retrofit-PoE-2Wire PoE extender
Your price incl. VAT (20.0%)
199.14 BGN / 101.82 EUR
Ordered for stock
Planned Delivery Date by Courier to you 31-12-2025
Manufacturer
Product number
UACC-Retrofit-PoE-2Wire
Product Code
RL028.971
Warranty
24 months
Ubiquiti Junction Utility, indoor/outdoor enclosure, IP55 ratingUACC-Junction-Utility
199.59 BGN / 102.05 EUR excl. VAT
Product description
A pair of extenders that allow you to extend PoE over twisted pair or coaxial cables. This solution is ideal for situations where replacing the original cabling is not an option. Each extender features a 1x 10/100 Mbit ETH port and a two-pin connector, which can be fitted with a terminal block or an coaxial adapter. Powering the extenders is handled via the PoE-IN port with PoE++ (50V DC, 1.2A), while on the other side, you get a PoE-OUT PoE+ output (48V DC, 0.6A). The transmission over twisted pair or coaxial cable is based on the Homeplug AV standard. The extenders themselves consume 3W of power.

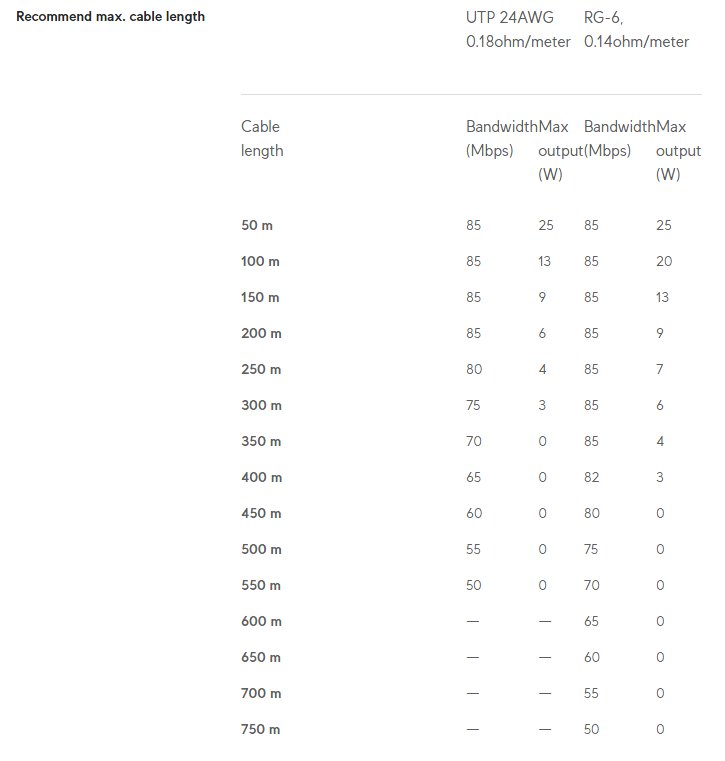

Recommended Cable Length
Package Contents
- (2) Extenders
- (2) Terminal blocks
- (2) Coax adapters
- (2) Plastic covers
- Mounting bracket
- Wall plugs and screws
Download
Technical parameters
LAN ports
Output Power / 1port [W]
30
Ethernet speed [Mb/s]
10/100
LAN ports
1
LED indication
Yes
LAN speed
(1) 10/100Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
1
Output Voltage [V]
48
Max. power consumption [W]
3
Operating temperature [°C]
-10 up to 40
Weight [g]
140
Width [mm]
44
Height [mm]
30
Depth [mm]
138
