Grandstream GWN7700MP Unmanaged Network Switch - 1x SFP+
Your price incl. VAT (20.0%)
135.35 BGN / 69.20 EUR
✅ Availability in an external Partner

Product description
The GWN7700M series are 5 & 8 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses. These 6 and 9-port multi-Gigabit switches support fast Ethernet, 1-Gigabit and 2.5-Gigabit network speeds while including 1 SFP+ Gigabit fiber port that provides 1-Gigabit or 10-Gigabit high-speed uplink connectivity to your network. The GWN7700M, GWN7700MP, and GWN77001M require no configuration or installation, are desktop and wall-mountable, and provide auto MDI/MDIX to eliminate the need for crossover cables.

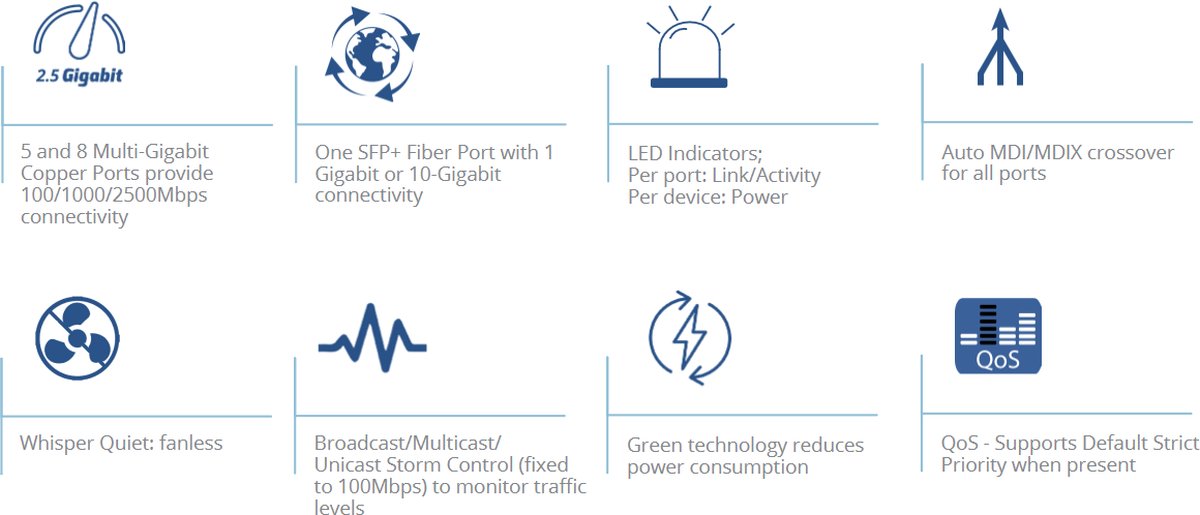

Key features
- 5x Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
- One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
- LED Indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX crossover for all ports
- Whisper Quiet: fanless
- Broadcast/Multicast/Unicat Storm Control (fixed to 100Mbps) to monitor traffic levels
- Green technology reduces power consumption
- QoS - Supports Default Strict Priority when present
Package contents
- Device
- Power Adapter
- Quick Installation Guide
Download
Technical parameters
LAN ports
Design
On the wall, Desktop
Switchning capacity [Gbps]
45
MAC address table
4000
Jumbo frame [Bytes]
9000
Features
QoS
Power type
DC connector
Fans
No
LAN ports
5
LAN speed
(5) 100M/1G/2.5Gbps
Max. LAN ports speed
2.5G
PoE type
PoE-Out (only)
SFP+ cages
1 (podpora 1G/10G)
Optical interfaces
(1) 1/10Gbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
4
PoE budget [W]
57
Max. power consumption [W]
7,2
Chassis design
Metal
Power via connector/terminal
53,5V/1,22A
Operating temperature [°C]
0 up to 40
Weight [g]
310
Width [mm]
145
Height [mm]
27
Depth [mm]
80
