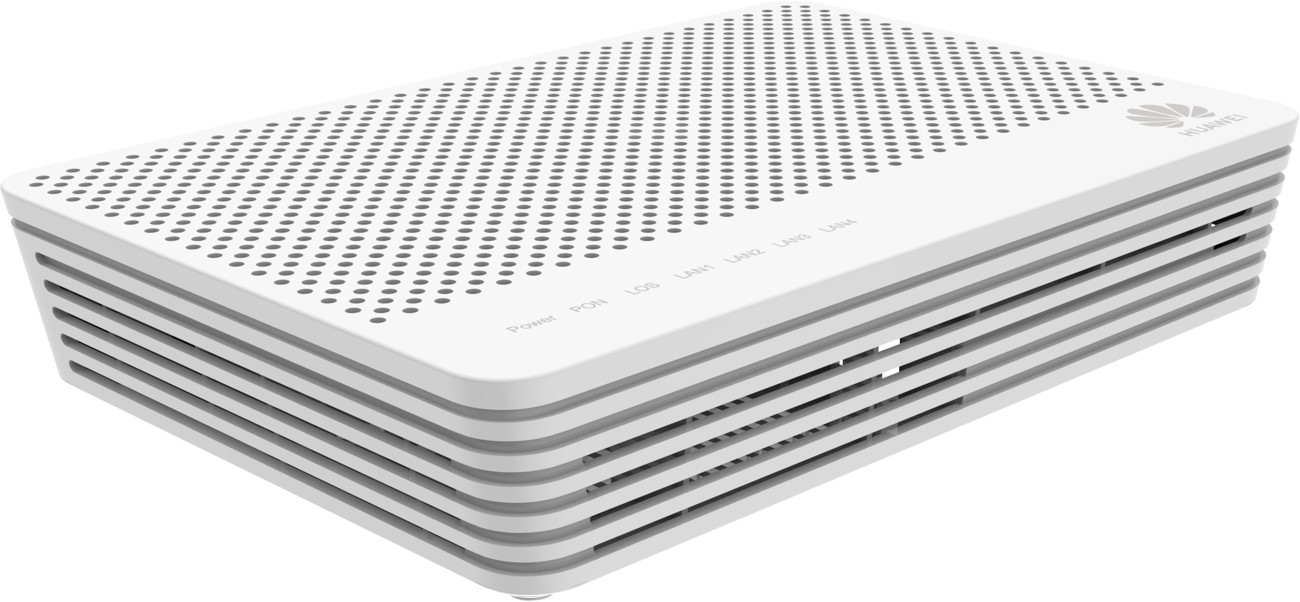

Huawei OptiXstar EG8040H6, GPON ONT bridge

Huawei OptiXstar EG8040H6, GPON ONT bridge
Your price incl. VAT (20.0%)
47.17 BGN / 24.12 EUR
Ordered for stock
Delivery No confirmed delivery date
Manufacturer
Product number
EG8040H6
Product Code
RL029.266
Warranty
24 months

Product description

The EchoLife EG8040H6 is an indoor Optical Network Terminal (ONT). By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The EG8040H6 provides four GE Ethernet ports and features high-performance service forwarding capabilities to ensure excellent experience with Internet and HD video services. Therefore, the EG8040H6 provides a perfect terminal solution and future-oriented service-supporting capabilities for networks.

Package contents

  • Device
  • Power adapter 12V DC / 1A

Download

https://download.discomp.cz/Huawei/Datasheets/EG8040H6_Datasheet.pdf
Download Datasheet
https://download.discomp.cz/Huawei/Manuals/EG8040H6_Quick_Start.pdf
Download QSG

Technical parameters

LAN ports
Operating mode
Bridge
Optical Connectors
(1) SC
Purpose
Indoor
Wavelength - Tx/Rx [nm]
1490 / 1310
Transfer type
GPON
Polishing type
APC
LAN ports
4
LAN speed
(4) 10/100/1000Mbps
Gigabit LAN
Yes
Max. LAN ports speed
1G
PON SFP cages
1
Receiver sensitivity [dBm]
-27
Max. power consumption [W]
4,7
Power via connector/terminal
12V / 1A
Buttons
Reset, power
Operating temperature [°C]
0 up to 40
Weight [g]
220
Width [mm]
168
Height [mm]
30
Depth [mm]
115
RAM [MB]
128
