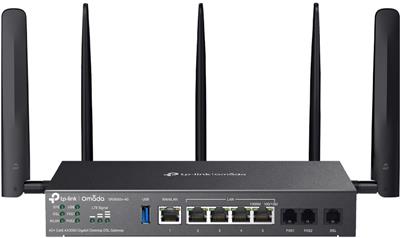

TP-Link DR3650v-4G Omada Wi-Fi 6 Gigabit Desktop DSL Gateway with SIM slot
Your price incl. VAT (20.0%)
807.97 BGN / 413.11 EUR
Ordered for stock
No confirmed delivery date
You have a choice of 2 variants
Product description
DR3650v-4G is compatible with Super VDSL (VDSL2 Profile 35b), 5x Ethernet access, and 2x Nao SIM. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for backup internet connection.

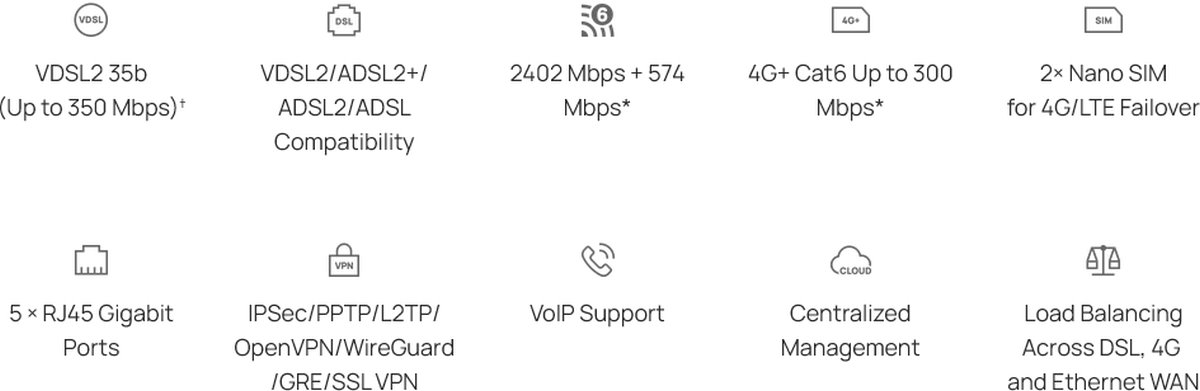

Key features
- AX3000 WiFi 6 with Up to 2402 Mbps on 5 GHz and up to 574 Mbps on 2.4 GHz
- 4G+ Cat6 up to 300Mb/s
- (2) Nano SIM for 4G/LTE Failover

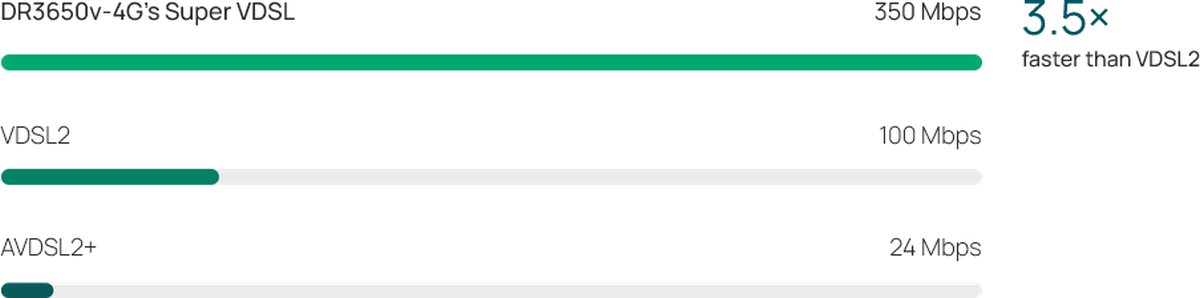

- VDSL2 35b: Supports 350Mbps DSL Access
- VDSL2/ADSL2+/ADSL2/ADSL Compatibility
- Centralized Cloud Management
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
- Load Balancing Between DSL and Ethernet WAN
- Omada Mesh Technology
- (3) Ports RJ11 (2× FXS, 1× DSL) & 5× Gigabit ports RJ45 & 1× USB 3. 0 Port
- Desktop/Wall Mounting

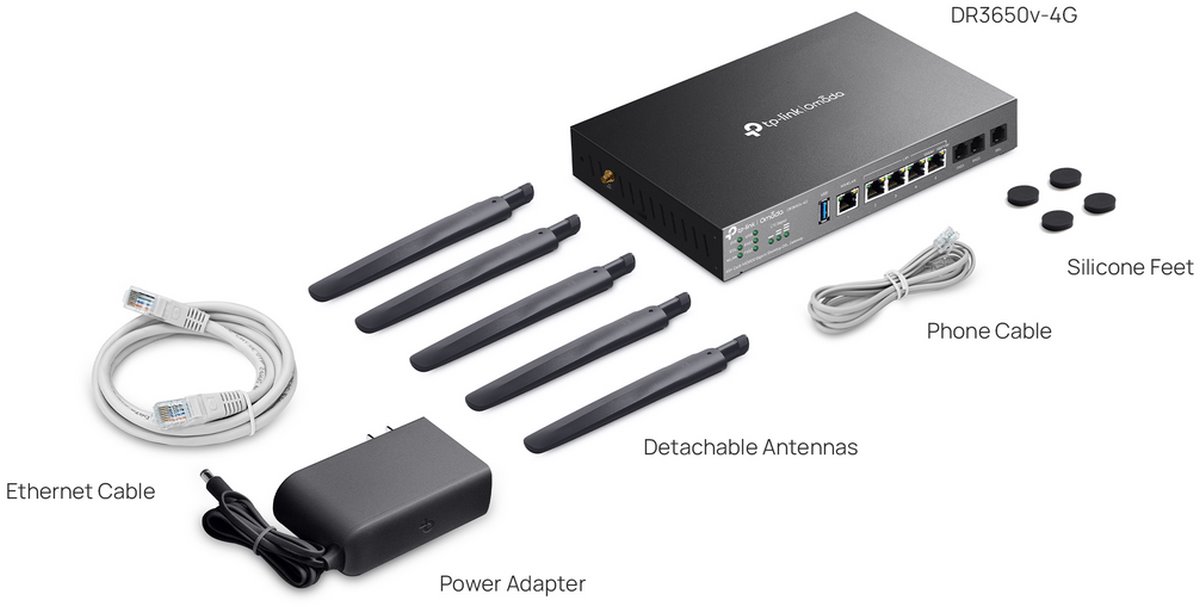

Package contents
Download
Technical parameters
LAN ports
WAN speed
(1) 10/100/1000Mbps
USB ports 3.0
2
DSL standards
VDSL2, ADSL, ADSL2, ADSL2+
DSL WAN port
RJ11
Supported VPN
PPTP, L2TP, IPSec, OpenVPN, SSL, WireGuard, GRE
Operating mode
Cellular router
Management
Omada controller, Web management
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
2402
Transmission speed - 2.4GHz [Mb/s]
574
Tx power 2.4GHz [dBm]
20
Tx power 5GHz [dBm]
23
Security
WPA, WPA2, WPA3
2.4GHz MIMO
3 x 3
5GHz MIMO
3 x 3
Type of antenna
Detachable
Detachable antennas
5
Purpose
Indoor
Roaming
Yes
Integrated 4G/LTE radio part
Yes
4G/LTE bands support
(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (32) 1500 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz
LAN ports
4
LAN speed
(4) 10/100/1000Mbps + (1) 10/100/1000Mbps LAN/WAN
Gigabit LAN
Yes
Max. power consumption [W]
35
Power via connector/terminal
12V / 3,3A
Buttons
Reset
Operating temperature [°C]
0 up to 40
Width [mm]
226
Height [mm]
35
Depth [mm]
131
SIM slots quantity
2
USB
Yes
IPv6 support
Yes
RAM [MB]
512
