TP-Link ES224G Omada 24port gigabit easy managed switch

TP-Link ES224G Omada 24port gigabit easy managed switch
Your price incl. VAT (20.0%)
221.93 BGN
Ordered for stock
Delivery No confirmed delivery date
TP-Link
Manufacturer
Product number
ES224G
Product Code
RL029.779
Warranty
60 months

Product description

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

TP-Link ES224G

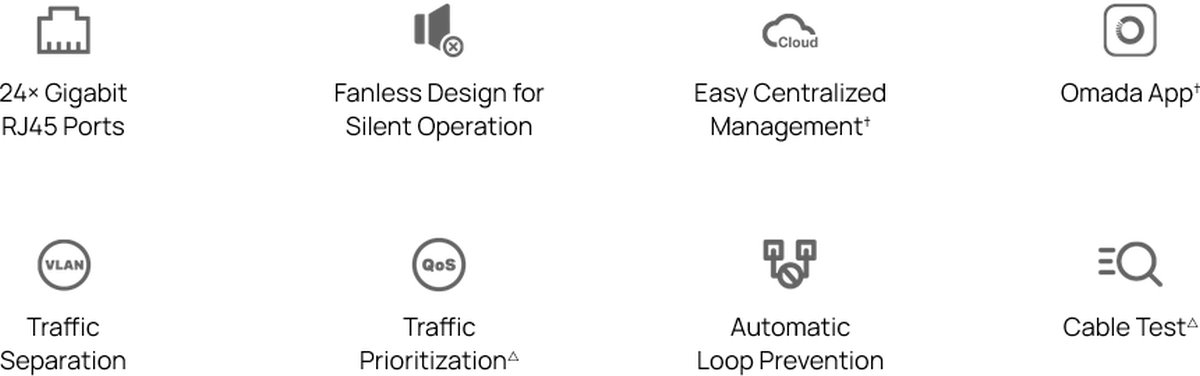

Key features

  • (24) 10/100/1000Mbps RJ45 ports
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and rack-mountable design

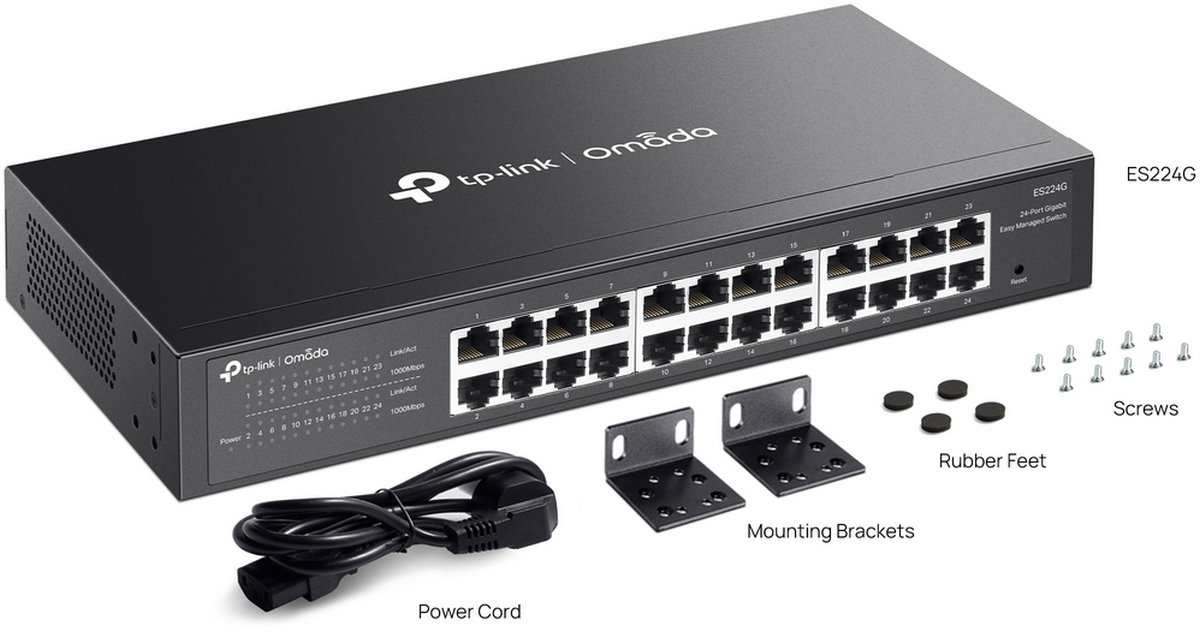

Package contents

TP-Link ES224G

Download

https://download.discomp.cz/TP-LINK/Datasheets/Datasheet_ES224G(UN)1.0.pdf
Download Datasheet
https://download.discomp.cz/TP-LINK/QSG/ES224G(UN)_Multi-model_IG.pdf
Download Installation Guide

Technical parameters

LAN ports
Design
Desktop, Rackmount
Switchning capacity [Gbps]
48
MAC address table
8000
Jumbo frame [Bytes]
15000
Packet forwarding rate [Mpps]
35,7
Web management
Yes
Management
Web management, Omada controller
Features
VLAN, QoS, L2
Power type
Mains power (230V)
Fans
No
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
Max. LAN ports speed
1G
Max. power consumption [W]
11,4
Chassis design
Metal
Power via connector/terminal
100-240 V AC~50/60 Hz
Buttons
Reset
Operating temperature [°C]
-5 up to 50
Width [mm]
294
Height [mm]
44
Depth [mm]
140
