Category

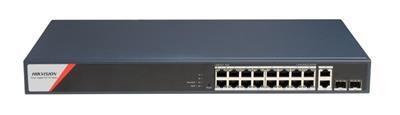

Hikvision DS-3E1520HP-SI-16P2T2F PoE Smart managed Switch, 16x PoE, 230W
Your price incl. VAT (20.0%)
715.34 BGN / 365.75 EUR
✅ Availability in an external Partner
Planned Delivery Date by Courier to you 19-11-2025
Manufacturer
Product number
DS-3E1520HP-SI-16P2T2F
Product Code
RL029.857
Warranty
36 months
You have a choice of 3 variants
9.21 BGN / 4.71 EUR excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDMML-S3155-20
8.78 BGN / 4.49 EUR excl. VAT
9.04 BGN / 4.62 EUR excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDMML-S5531-20
11.97 BGN / 6.12 EUR excl. VAT
8.94 BGN / 4.57 EUR excl. VAT
Download
Technical parameters
LAN ports
Design
Desktop, Rackmount
Switchning capacity [Gbps]
56
MAC address table
8000
Packet forwarding rate [Mpps]
29,8
Management
iVMS-4200
Features
VLAN, QoS, DHCP snooping
Power type
Mains power (230V)
Fans
Yes
LAN ports
18
LAN speed
(18) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
2
Optical interfaces
(2) 1000Mbps
PoE-Out standards
802.3af, 802.3at, 802.3bt
PoE Out ports
16
PoE budget [W]
230
Long range PoE - up to 250m
Yes
Max. power consumption [W]
250
Chassis design
Metal
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
0 up to 45
Weight [g]
2735
Width [mm]
440
Height [mm]
44
Depth [mm]
221
Default IP address
Dynamic from DHCP
