MaxLink 10G SFP+ optical HP modul, SM, 1310nm, 10km, 2x LC connector, DDM, H3C komp.
Your price incl. VAT (20.0%)
24.13 BGN / 12.34 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
You have a choice of 2 variants
Product description

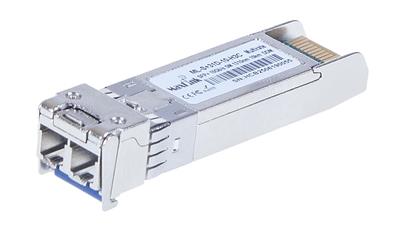

Maxlink ML-S+31D-10-H3C is a 10G SFP+ module with a 1310nm wavelength, two LC connectors, and a maximum transmission distance of 20km over single-mode optical fiber. The SFP+ module supports monitoring (DDM).
The LC connectors in the SFP+ module use UPC polishing.
H3C Compatibility
The modules are compatible with 3Com/HP/H3C A-series switches (A5120/5500/5800/5900/7500/10500 and others), as well as with H3C S-series switches.
Technical parameters
LAN ports
Compatibility
H3C
Tx power [dBm]
-6.5 up to -0.5
Format
SFP+
For cable type
Single Mode
Optical Connectors
(2) LC
Transmission speed
10 Gbps
Wavelength - Tx/Rx [nm]
1310
Distance [km]
10
Transfer type
2-fiber
DDMI - diagnostics
Yes
Polishing type
UPC
Receiver sensitivity [dBm]
-14,4
Operating temperature [°C]
0 up to 70
