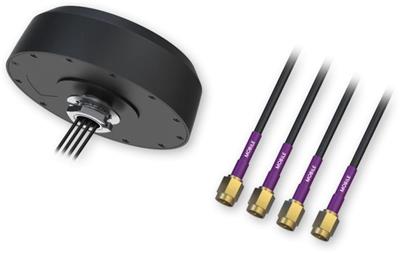

Teltonika PR1KC647 5G Combo MIMO Mobile Roof SMA Antenna
Your price incl. VAT (20.0%)
146.83 BGN / 75.07 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
1331.80 BGN / 680.94 EUR excl. VAT
Product description
5G Mobile MIMO Antenna
- Frequency range: 600 ~ 960, 1400 ~ 6000 MHz
- Polarization: Linear
- Radiation pattern type: Omni-directional
- Gain: Max 4.7 dBi
- V.S.W.R: < 3.4
- Impedance: 50 Ohm
- Connector type and count: 4x SMA Male
Mechanical/Environmental
- Cable: 4x ALS302, 3000 mm
- Operating temperature: -40 °C to +85 °C
- Mounting method: Screw (M27 nut)
- IP rating: IP67 (after installation) / IP69K (after installation)
- Weight: 701 g
- RoHS compliant: Yes
Download
Technical parameters
LAN ports
MIMO, SISO
4 x 4
RF cable length [m]
3
Polarization
VH
Cable type
ALS302
Protection class
IP67
Wireless frequency
LTE, 5G (GSM)
Antenna type
Omnidirectional
RF connectors
(4) SMA male
Purpose
Outdoor
Operating temperature [°C]
-40 up to 85
Weight [g]
701
Width [mm]
167
Height [mm]
57
Depth [mm]
167
