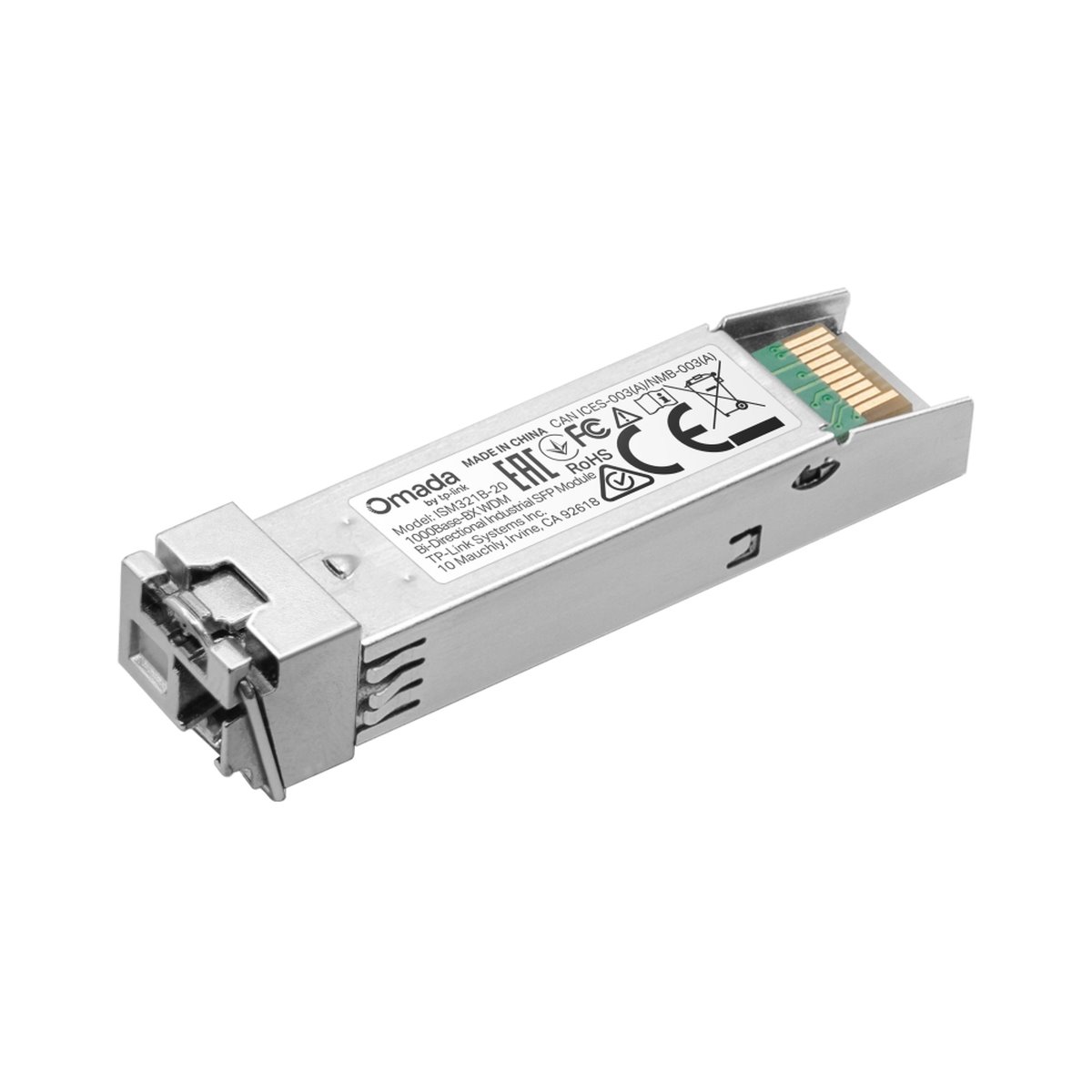

TP-Link ISM321B-20 - Gigabit SFP module, WDM, SM, 20km, 1310/1550nm

Product description

TP-LINK´s ISM321A-20 adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.

Notice

WDM modules must be used in pairs: A and B - the counterpart can be found in variants - Module A.

Key features

• Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
• Single-mode SFP LC transceiver
• TX 1310nm, RX 1550nm
• Up to 20 km
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
• Industrial Product Operating Temperature Range: -40-85°C
