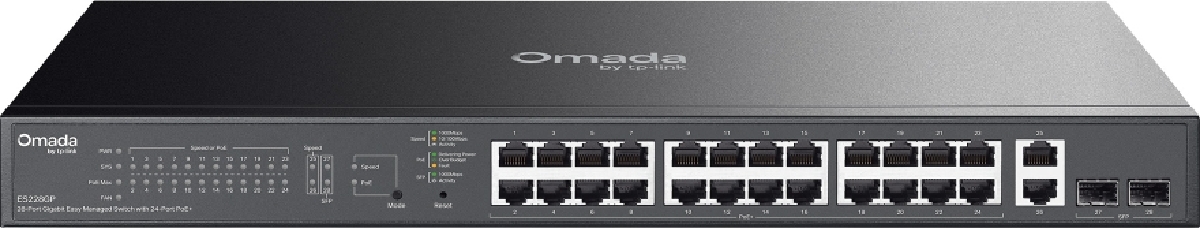

TP-Link ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

Product description

Omada ES228GP is a reliable manageable gigabit switch with a switching capacity of 56 Gbps, (24) gigabit RJ45 PoE+ ports, additional (2) gigabit RJ45 ports and (2) gigabit SFP slots. In total 24 ethernet ports support 802.3af/at PoE-Out with an output power of 30 W/port and a total PoE budget of 250W.

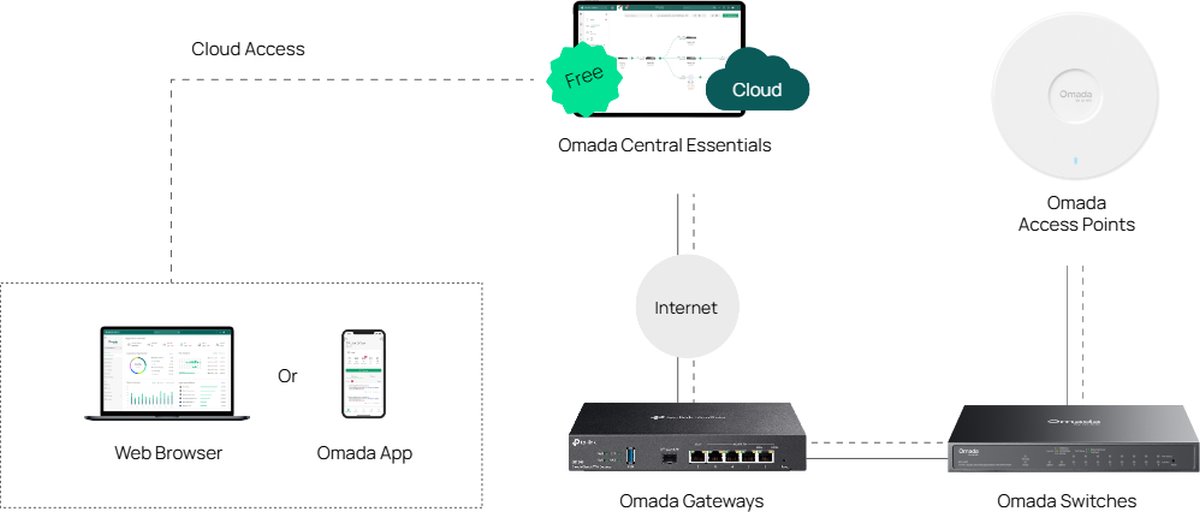

Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

Key features

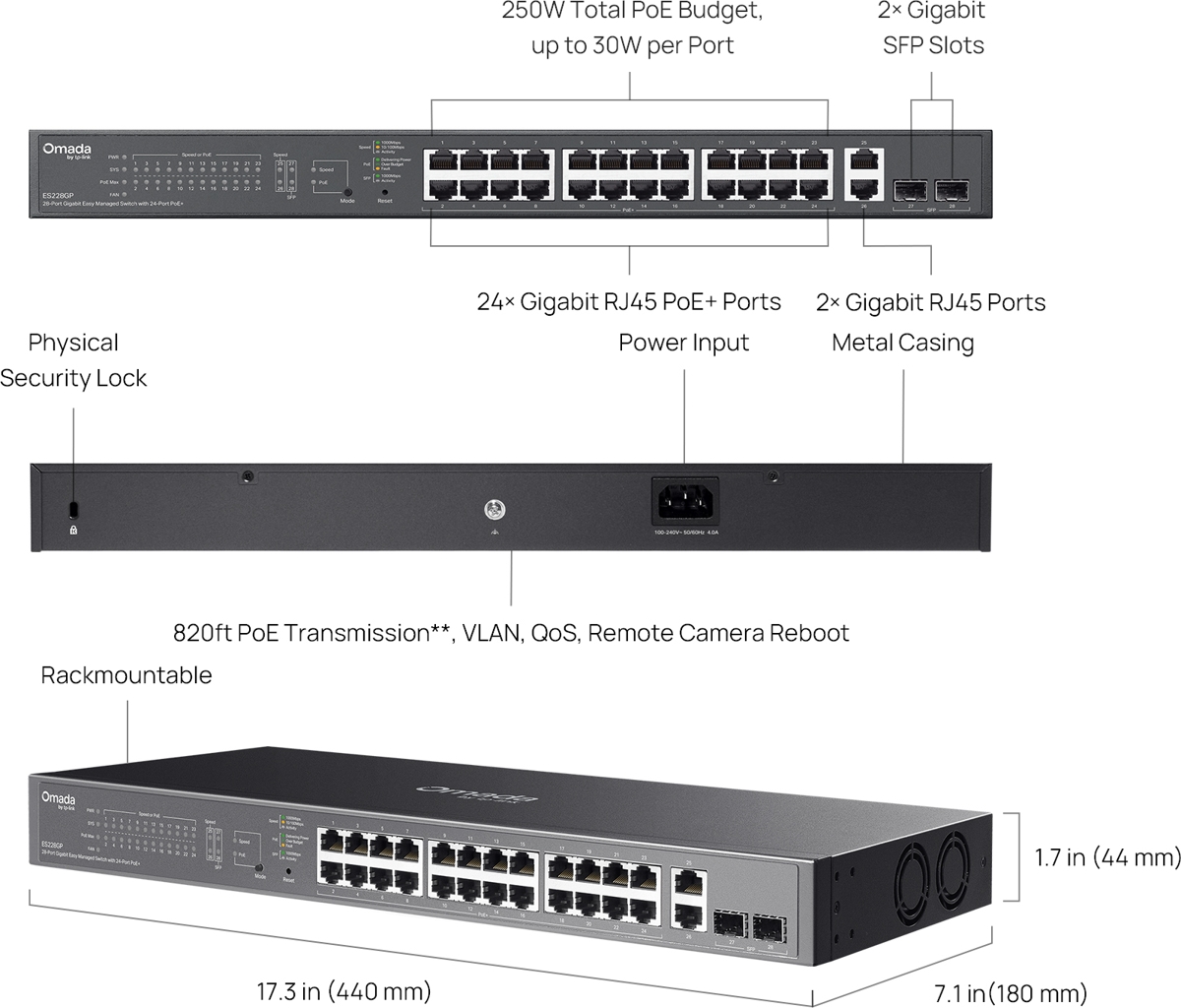

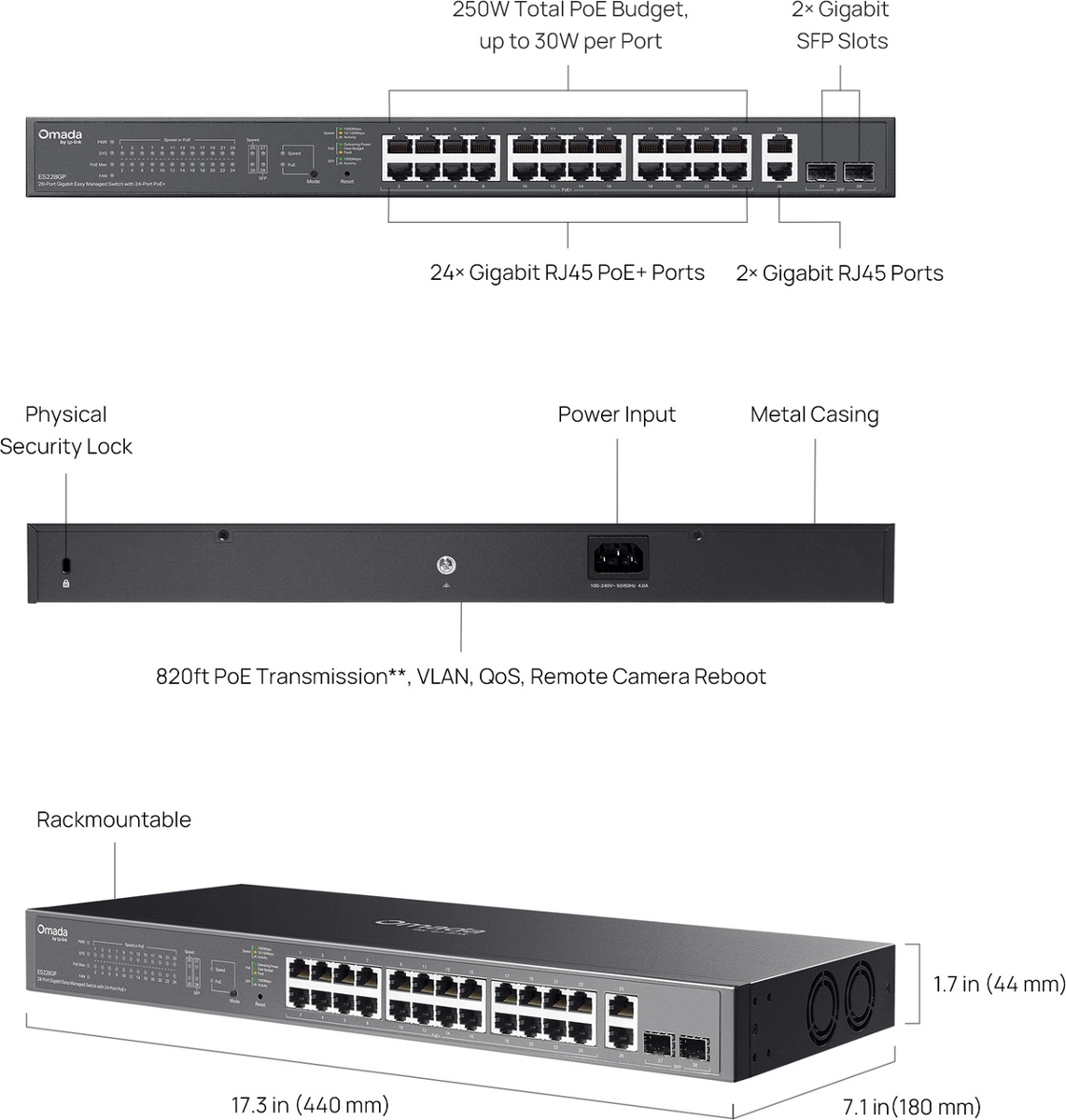

• 24× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
• 2× Gigabit RJ45 port, 2× Gigabit SFP port
• 250W PoE Power Budget, with up to 30W for each PoE port
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app
• Up to 250m PoE with 10Mbit speed, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Durable metal casing and rack-mountable design

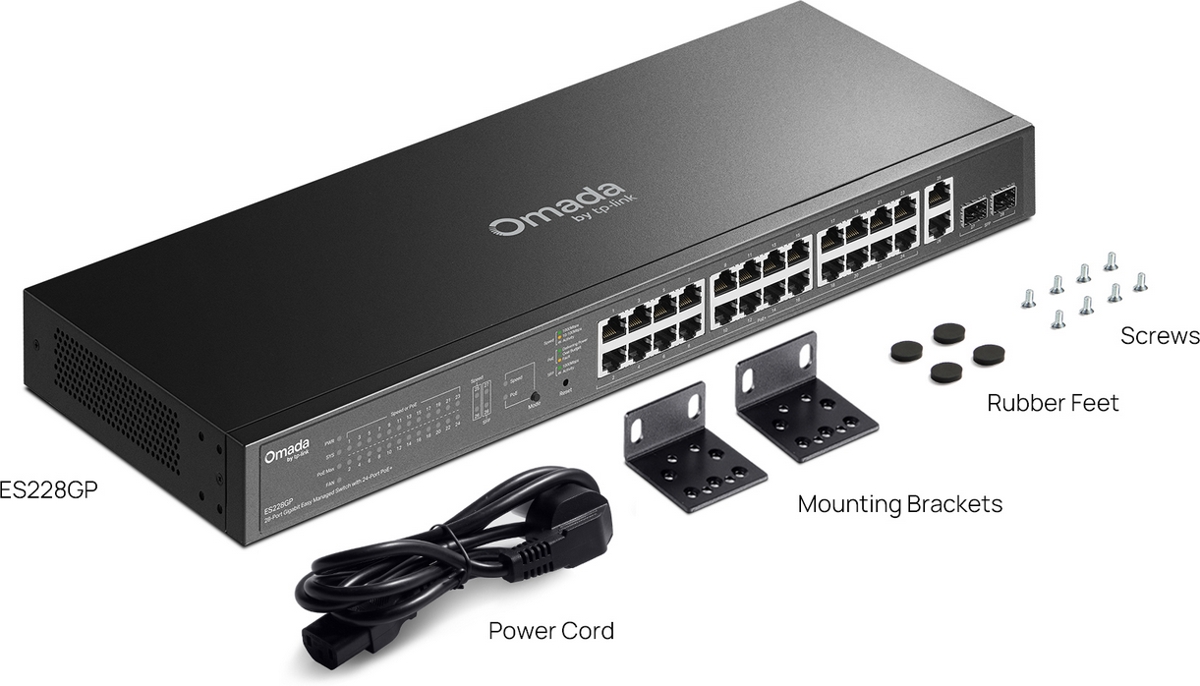

Package Content

• Switch
• Power Cord
• Mounting Brackets
• Screws
• Rubber Feet
• Installation Guide

Download

https://download.discomp.cz/TP-LINK/Datasheets/ES228GP_UN_1.0_Datasheet.pdf

Datasheet
