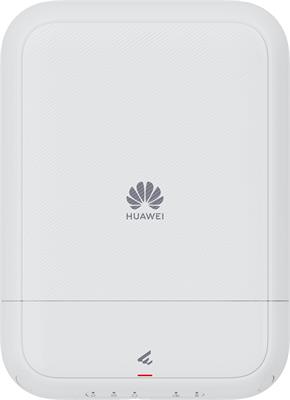

Huawei AP771 - WiFi7 outdoor Dual Band AP, omnidirectional, IP65
Your price incl. VAT (20.0%)
311.77 BGN / 159.41 EUR
Ordered for stock
No confirmed delivery date
26.21 BGN / 13.40 EUR excl. VAT
208.61 BGN / 106.66 EUR excl. VAT
Product description
Huawei eKitEngine AP771 is a high-performance outdoor access point with Wi-Fi 7 support. It operates simultaneously in two bands (2.4GHz and 5GHz) and features modern technologies such as MU-MIMO, 4096-QAM, Multi-RU, OFDMA, MLO and preamble puncturing. The AP is equipped with a durable, fully sealed enclosure with IP65 protection. It provides connectivity with a total throughput of up to 3.57Gbps and has a maximum power consumption of 18.8W.
Key features
- Wi-Fi 7 (802.11be) - extremely fast and stable connectivity
- Total throughput up to 3.57Gbps - 0.69Gbps on 2.4GHz (2×2) and 2.88Gbps on 5GHz (2×2)
- (1) 2.5G PoE+ port with 802.3at/af PoE+ support (functions are limited when using 802.3af)
- Coverage radius up to 130 meters thanks to built-in omnidirectional antennas
- Support for Fit / Fat / Cloud modes - flexible deployment in various environments
- Easy deployment and management via the HUAWEI eKit application
- IP65 weather-resistant enclosure and 6kA surge protection on the Ethernet port
Technical parameters
LAN ports
Maximum modulation
4096 QAM
Power over Ethernet
802.3af, 802.3at
Operating mode
Access Point
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11a, 802.11ac, 802.11ax, 802.11b/g, 802.11be, 802.11n
MU-MIMO
Yes
Transmission speed - 2.4GHz [Mb/s]
688
Transmission speed - 5GHz [Mb/s]
2880
Tx power 2.4GHz [dBm]
28
Tx power 5GHz [dBm]
27
Security
WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Azimuth beam width (-6dB) [°]
360
Type of antenna
Built-in
Purpose
Outdoor
Roaming
Yes
Antenna gain [dBi]
7
LAN ports
1
LAN speed
(1) 100/1000/2500Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
18.8
Buttons
Reset
Operating temperature [°C]
-30 up to 60
Weight [g]
1140
Depth [mm]
51
Width [mm]
196
Height [mm]
270
