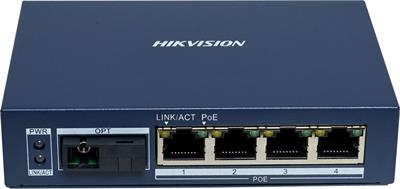

Hikvision DS-3D504TP-A Gbit Media Converter and PoE Switch
Your price incl. VAT (20.0%)
0.00 BGN / 0.00 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
Masterlan fiber optic patch cord, SCupc-SCupc, Singlemode 9/125, simplex, 1mSCupc/SCupc-SSM.9/125-01
2.52 BGN / 1.29 EUR excl. VAT
Masterlan fiber optic patch cord, SCapc-SCapc, Singlemode 9/125, simplex, 1mSCapc/SCapc-SSM.9/125-01
2.68 BGN / 1.37 EUR excl. VAT
Masterlan fiber optic patch cord, LCupc-SCupc, Singlemode 9/125, simplex, 1mLCupc/SCupc-SSM.9/125-01
2.15 BGN / 1.10 EUR excl. VAT
Masterlan fiber optic patch cord, LCapc-SCapc, Singlemode 9/125, simplex, 1mLCapc/SCapc-SSM.9/125-01
2.39 BGN / 1.22 EUR excl. VAT
Download
Technical parameters
LAN ports
Design
Desktop, On the wall
Switchning capacity [Gbps]
14
Packet forwarding rate [Mpps]
10,4
For cable type
Single Mode
Optical Connectors
(1) SC
Transmission speed
1 Gbps
Wavelength - Tx/Rx [nm]
1310 / 1550
Distance [km]
20

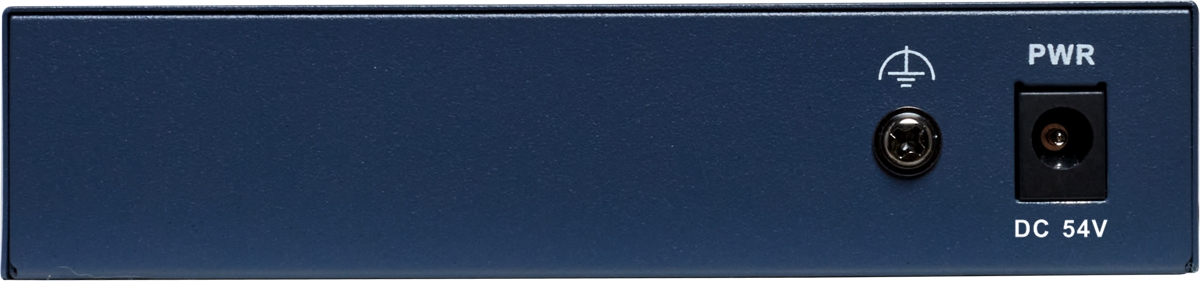

Power type
DC connector
Fans
No
LAN ports
4
LAN speed
(4) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
Optical interfaces
(1) 1000Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
4
PoE budget [W]
60
Max. power consumption [W]
65
Chassis design
Metal
Power via connector/terminal
54V / 1,2A
Operating temperature [°C]
0 up to 40

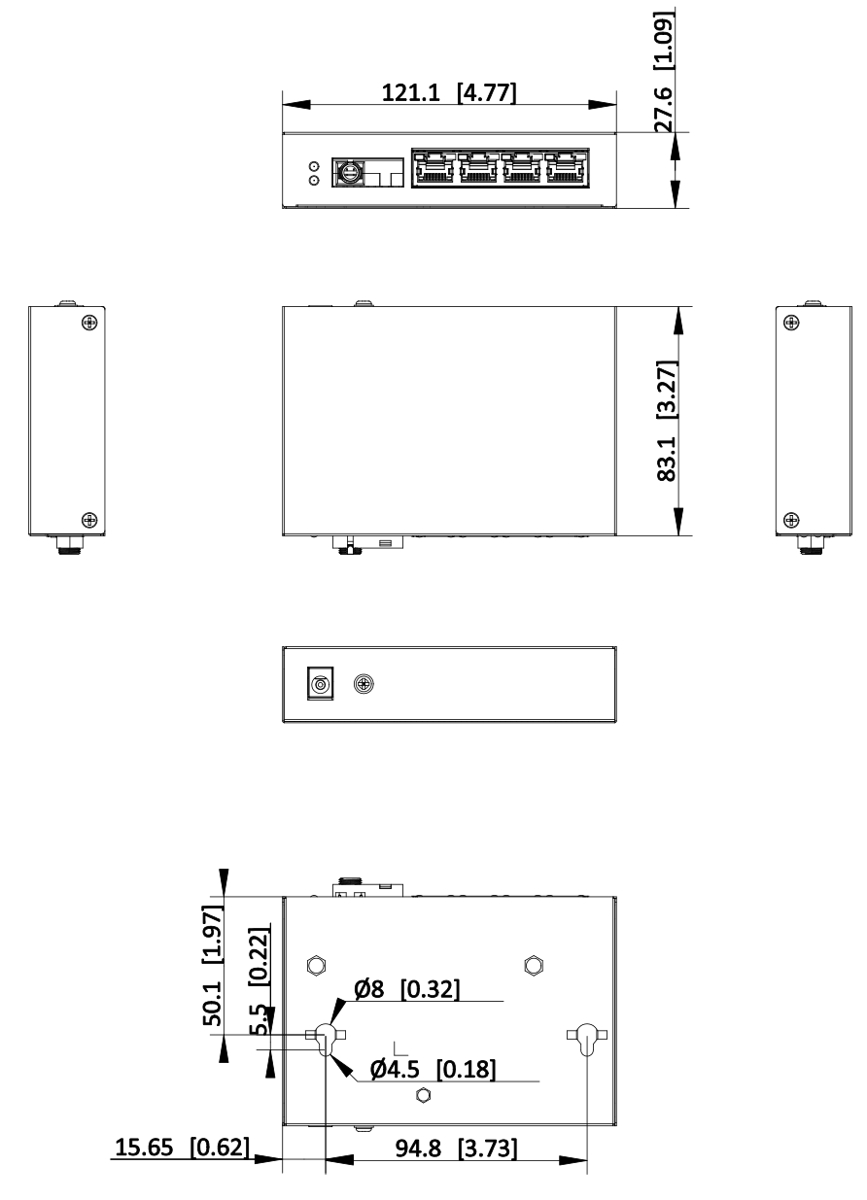

Width [mm]
121
Height [mm]
28
Depth [mm]
50
