Huawei OSX002003, GPON OLT SFP optical module, Class C+
Your price incl. VAT (20.0%)
91.68 EUR / 179.31 BGN
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 28-01-2026
2164.71 EUR / 4,233.80 BGN excl. VAT
Product description

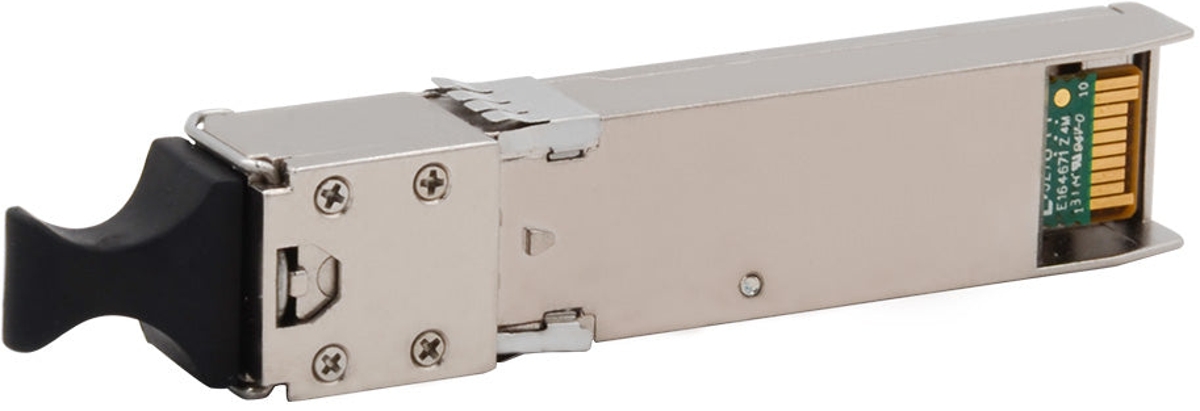

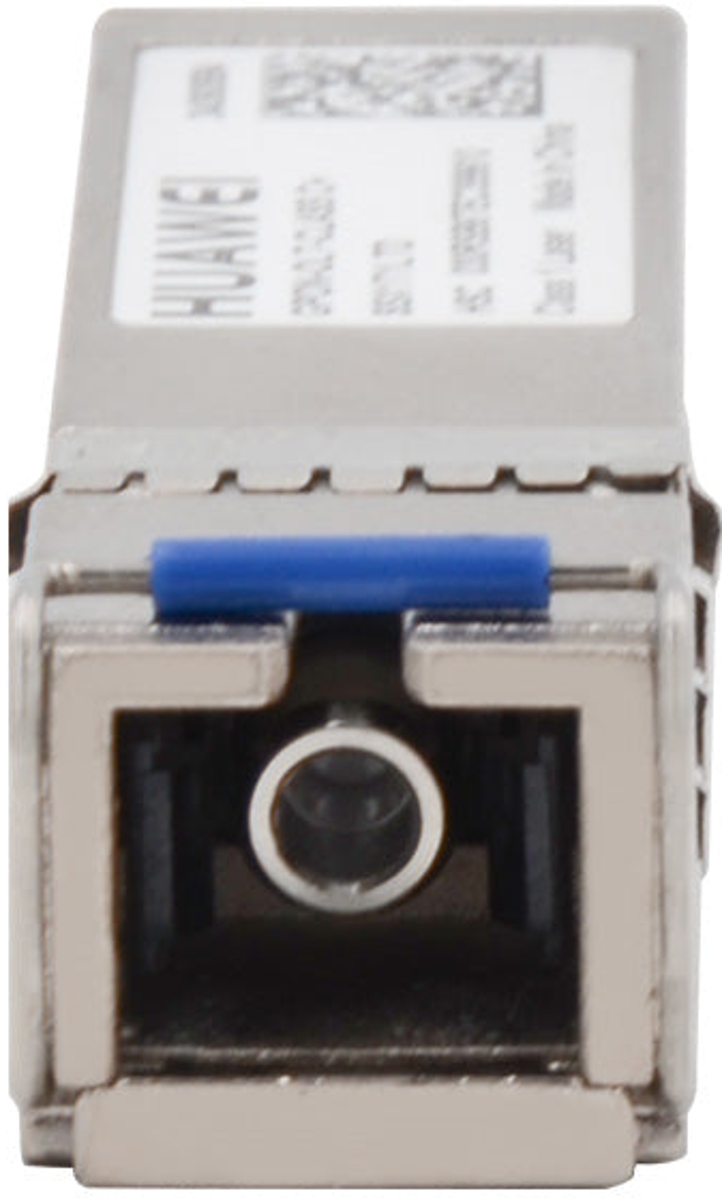

The Huawei OSX002003 GPON SFP module is designed for slots in Huawei OLT units. It is a C+ class module, terminated with an SC connector with UPC polishing, offering a transmission distance of up to 60km and supporting asymmetric data rates of 2.5Gbps download and 1.2Gbps upload. The module's TX power range is from 3 to 7dBm and the RX sensitivity is -32dBm.
Download
Technical parameters
LAN ports
Tx power [dBm]
3 up to 7
Format
SFP
For cable type
Single Mode
Optical Connectors
(1) SC
Transmission speed
1.244 / 2.488 Gbps
Wavelength - Tx/Rx [nm]
1490 / 1310
Distance [km]
60
Transfer type
GPON
Polishing type
UPC
Receiver sensitivity [dBm]
-32
Operating temperature [°C]
0 up to 70
