Tachyon TNA-305X, Modular 60GHz PTP+PTMP with 5GHz backup

Product description

The Tachyon TNA-305X is a modular 60GHz AP/client for PTP and PTMP links with a 5GHz backup radio, (1) 2.5G PoE-In port and a 2.4GHz Wi-Fi 7 management interface for local configuration. It supports the entire unlicensed 60GHz band in the 57-71GHz range with a maximum throughput of up to 2.3Gbps and is fully compatible with existing TNA models.

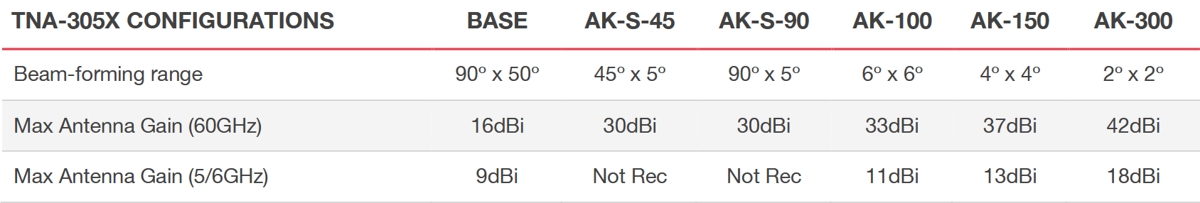

What sets this model apart is its innovative modular design. The base unit provides 90° coverage with beamforming technology and can be paired with a separately sold antenna, allowing the unit to be tailored precisely to your needs, along with an integrated 5.1-7GHz backup radio. This makes the unit suitable for both PTP and PTMP deployment scenarios.

Key features

• (1) 2.5Gbps PoE-In (38-57V) port
• Modular system adaptable to your needs
• 60GHz band support in the 57-71GHz range
• Integrated 5.1-7GHz backup radio with up to 320MHz channel width and support for external antennas via (2) RP-SMA connectors
• Throughput of up to 2.3Gbps
• Supports up to 32 clients

Package contents

• Device
• Cable gland
• PoE adapter 48V/0.5A

Download

https://download.discomp.cz/Tachyon/Datasheets/TNA-305X.pdf

Datasheet

https://tachyon-networks.com/calc.html

Link Calculator

https://tachyon-networks.freshdesk.com/support/solutions/articles/67000659775-tna-30x-web-ui-manual-v1-10-0-

Web UI Manual
