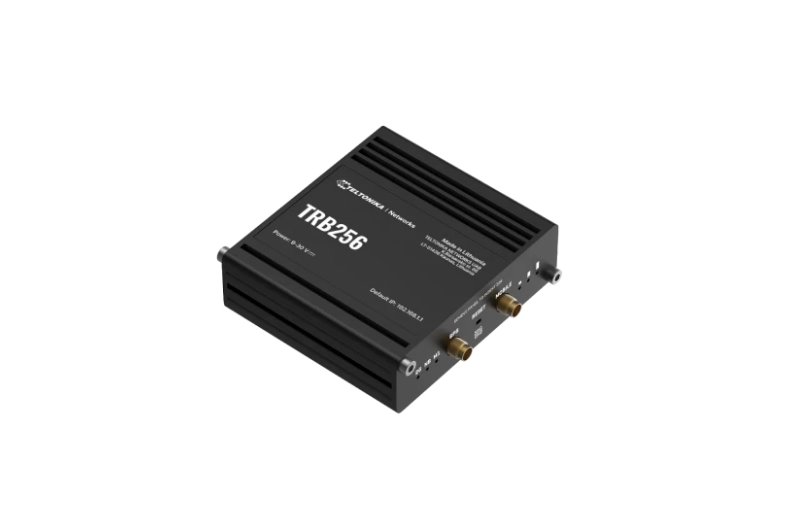

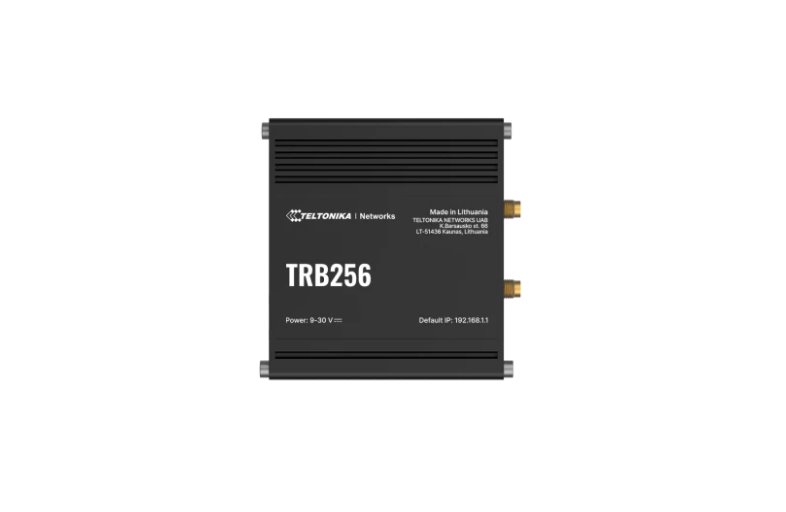

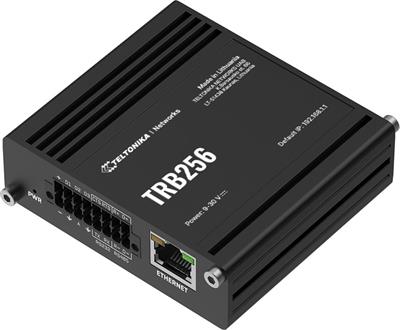

Teltonika TRB256 Industrial NB-IoT Gateway
Your price incl. VAT (20.0%)
129.82 EUR / 253.90 BGN
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 22-04-2026
Product description
The TRB256 is an industrial 4G LTE NB-IoT gateway designed to be applied to a broad range of IoT solutions. The device is equipped with multiple WAN interfaces, such as I/Os, RS232, RS485, and an Ethernet port, additionally boasting dual SIM functionality for continuous connectivity. This industrial-grade gateway also supports the 450 MHz frequency band, offering superior LTE signal penetration compared to standard frequencies, making it an optimal choice for a diverse range of M2M applications.
Key Features
- CONNECTIVITY - 4G/LTE Cat M1/Cat NB1and NB2/EGPRS
- 450 MHZ BAND - Greater LTE signal penetration and increased connectivity coverage
- DUAL SIM - Auto-failover, backup WAN and more switching scenarios

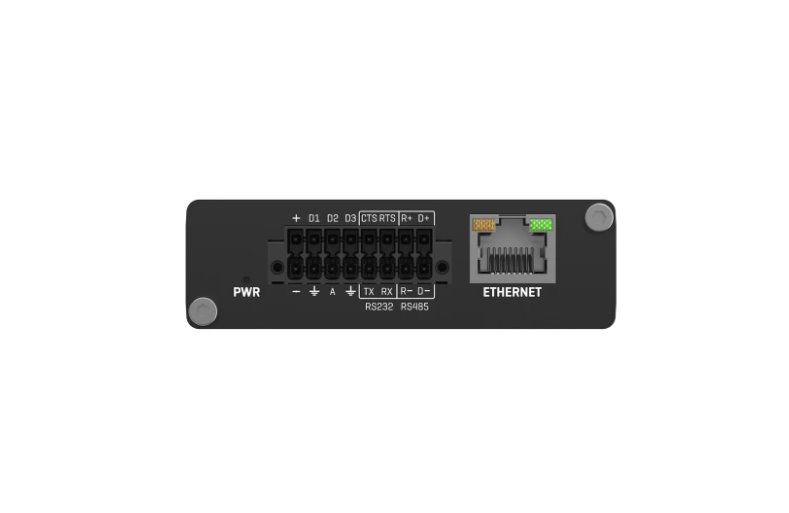

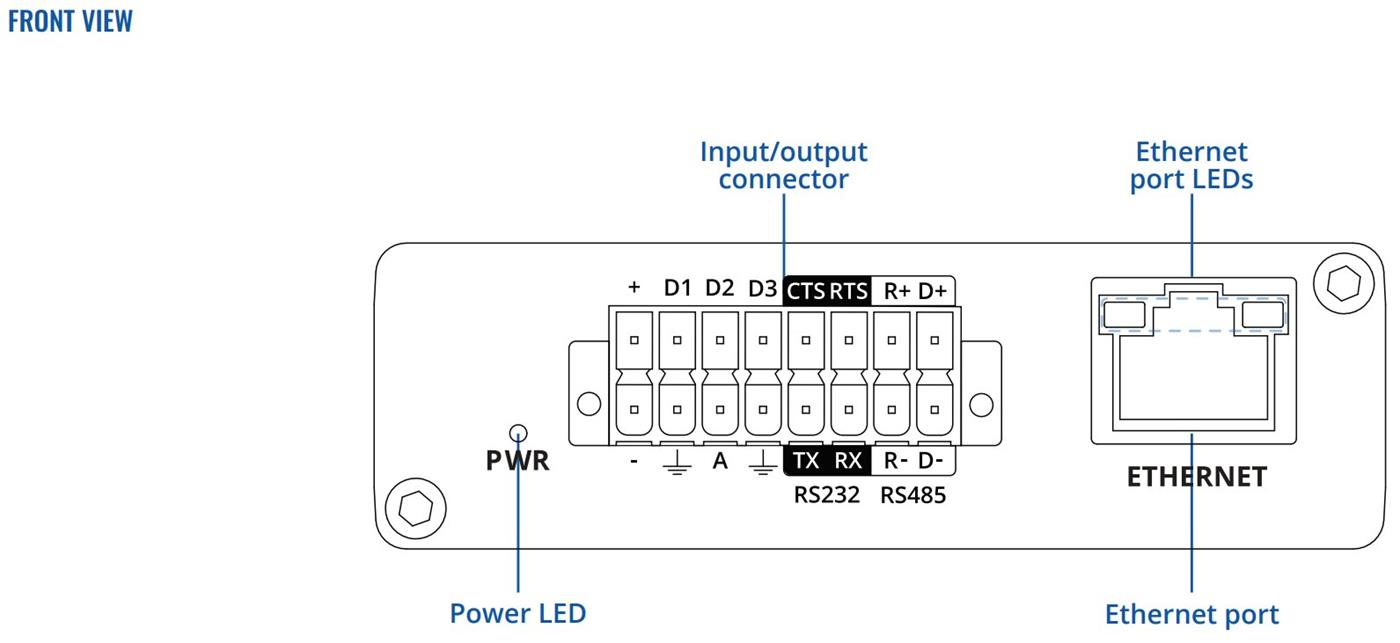

- INTERFACES - Ethernet, I/Os, and Serial (RS232, RS485) interfaces with 16-pin terminal block
Package Contents
- Device
- 16-pin terminal block
- 1 x hex key
- QSG (Quick Start Guide)
Download
Technical parameters
LAN ports
WAN Ports
1
WAN speed
(1) 10/100Mbps LAN/WAN
Wireless frequency
LTE, GNSS
RF connectors
(2) SMA female
Power type
DC terminal
Operating system
RutOS (OpenWrt based Linux OS)
LAN speed
(1) 10/100Mbps LAN/WAN
LAN ports 100M
1
Max. power consumption [W]
3,5
Serial port
RS-232, RS-485
Power via connector/terminal
9 .. 30V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
165
Width [mm]
83
Height [mm]
25
Depth [mm]
74
CPU
Mediatek, 580 Mhz, MIPS 24KEc
CPU frequency [MHz]
580
SIM slot
Yes
SIM slots quantity
2
Default IP address
192.168.2.1
Internal storage [MB]
128
RAM [MB]
16
Default login and password
admin / (preset password, see label/engraving)
GPS modul
Yes
