Wi-Tek WI-IOTBOX03 V3, outdoor box
Planned Delivery Date by Courier to you 04-03-2026
Product description

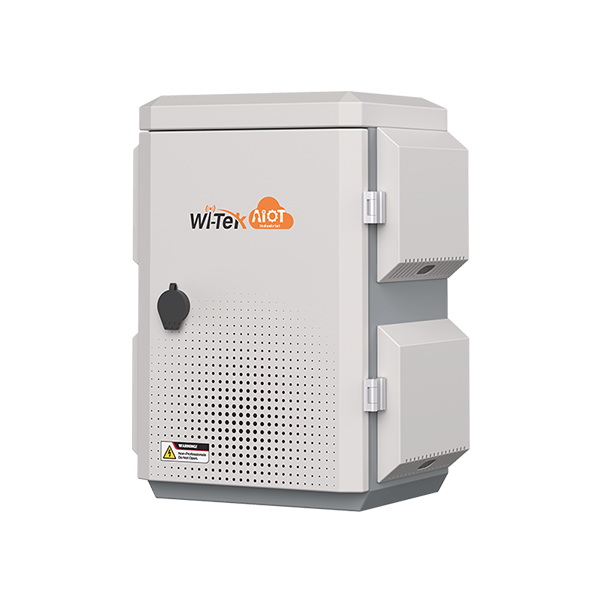

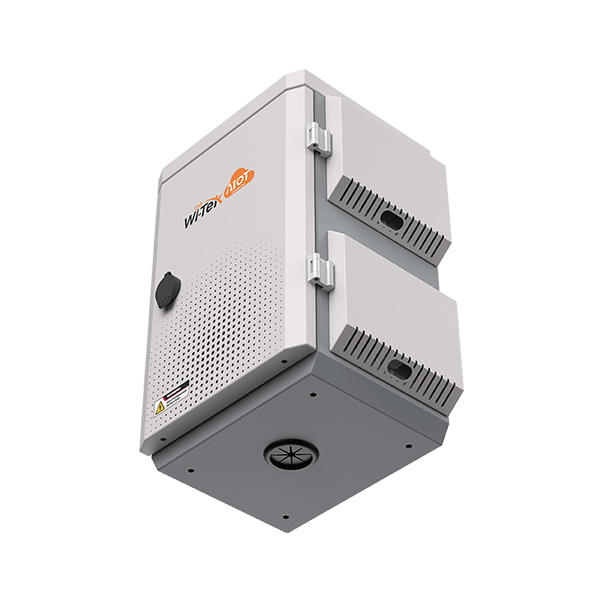

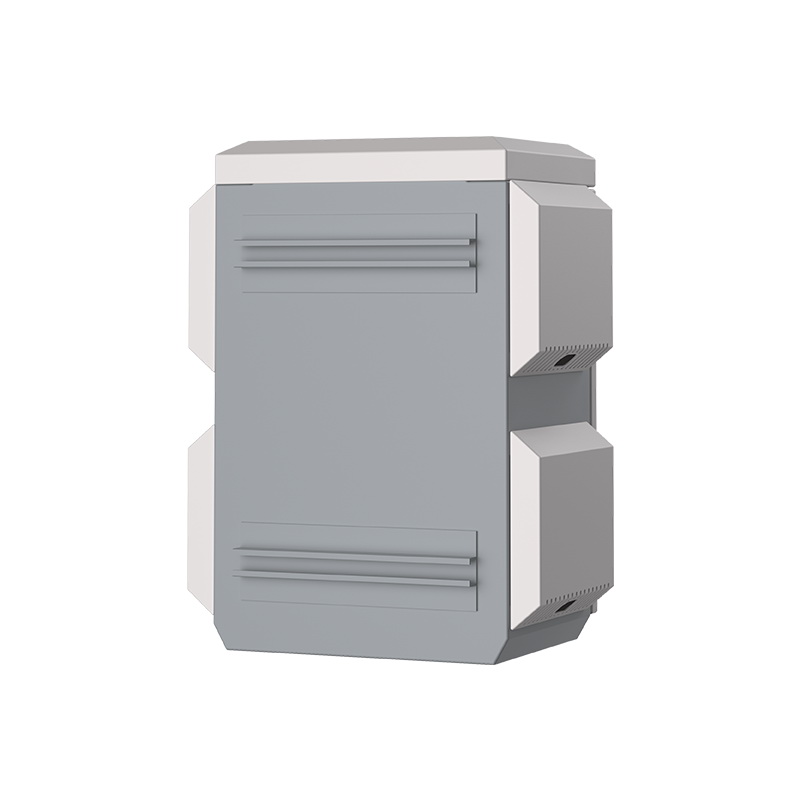

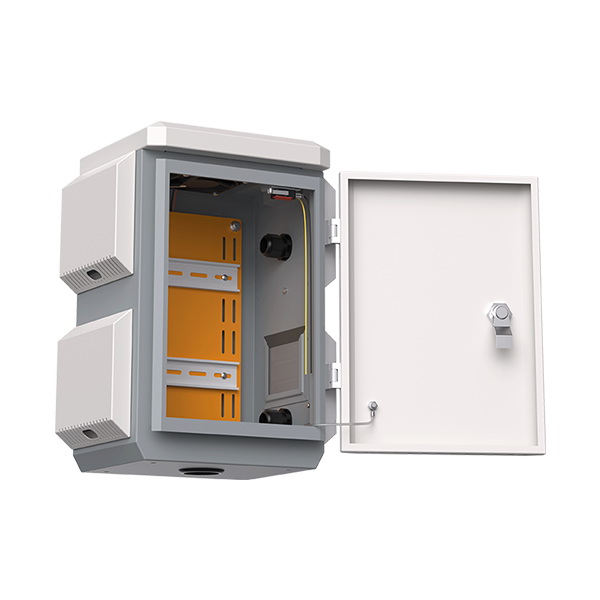

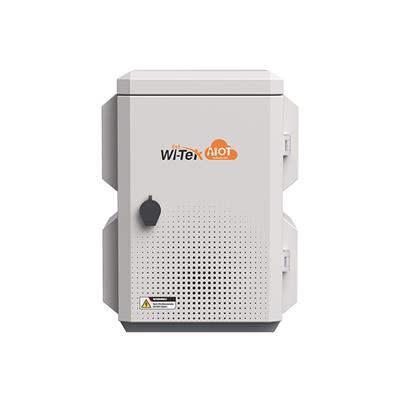

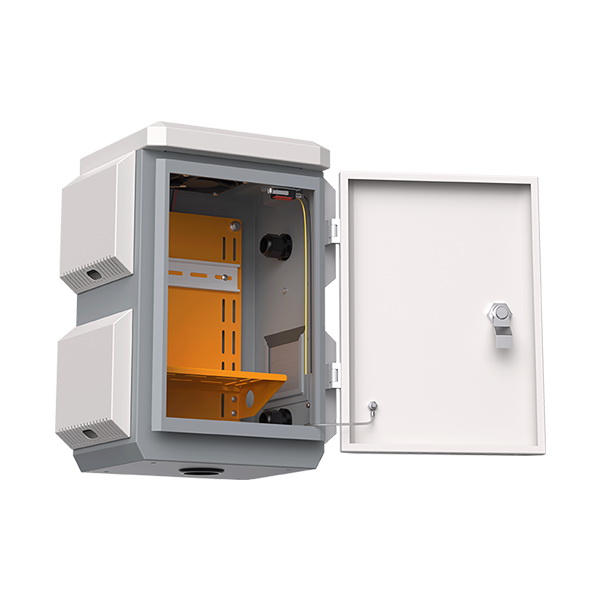

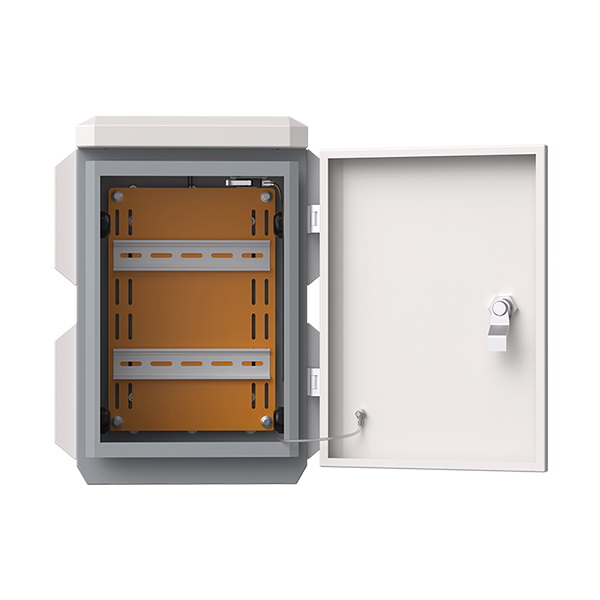

Wi-Tek Smart IoT Box 03 is an outdoor mounting box with external dimensions of 500 × 720 × 286.2 mm, providing an internal space of 380 × 660 × 286.2 mm. It is equipped with a rear mounting plate, (2) DIN rails and (3) mounting shelves. At the top of the enclosure, a 12V DC fan is installed, which together with the ventilation holes at the bottom ensures proper airflow and heat dissipation. The ventilation openings are protected with an insect-proof mesh. Thanks to its IP55 rating, the box is suitable for outdoor and industrial installations such as CCTV systems, WLAN, Wi-Fi or IoT.
The flexible modular design allows devices to be installed inside the box either vertically or horizontally as needed. For mounting additional accessories such as cameras or wireless units, the box is equipped with four removable side panels, each with its own waterproof cable gland. This significantly simplifies the installation of outdoor equipment without the need for additional accessories and saves space on the pole.
Key Features
- IP55 protection rating: Excellent dustproof and waterproof design protects the installed equipment.
- Robust construction: The durable enclosure withstands even strong impacts.
- Advanced material protection: The aluminum alloy or stainless-steel construction ensures resistance to corrosion, UV radiation, aging, and acids or alkalis.
- Modular installation: The top cover, side panels, DIN rails, mounting plate, waterproof connectors, fan, and microswitch are removable, making installation customization easier.
- Efficient cooling: The fan combined with the ventilation openings at the bottom provides optimal airflow for heat dissipation.
- Integrated microswitch: The door microswitch can be connected to power, alarm inputs/outputs, or an external buzzer or siren.
Package Contents
- Mounting box
- Quick Installation Guide
- (4) Waterproof cable glands
- (2) Keys
- Microswitch
- 25A Circuit breaker
- Grounding terminal
- (2) 345mm DIN rails
- (2) Mounting shelves 373.2 × 214 mm
- (1) Mounting plate for DIN rails 373.2 × 142 mm
- Installation accessories – wall, pole
