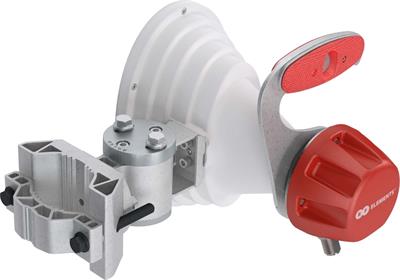

RF elements HG4-CC-A45, Asymmetrical Horn antenna, 5GHz, 45°
Your price incl. VAT (20.0%)
176.82 EUR / 345.83 BGN
Ordered for stock
No confirmed delivery date
Product description
The RF elements HG4-CC-A45 is a 5GHz sector horn antenna featuring a 45° asymmetrical beamwidth (30° in the elevation plane), 17dBi gain and (2) N female connectors. The antenna operates in the 5150-6400MHz frequency range. Thanks to its minimal side lobes, it provides an excellent signal-to-noise ratio (SNR) and its compact size makes it suitable for deployment in environments with a high density of transmitters.
Download
Technical parameters
LAN ports
Polarization
VH
VSWR
< 1,6
F/B ratio [dB]
30
Designed for mast diameter [mm]
30 up to 80
Wind load [km/h]
160
Protection class
IP55
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
30
Azimuth beam width (-6dB) [°]
45
Antenna type
Sector
RF connectors
(2) N female
Purpose
Outdoor
Antenna gain [dBi]
17
Material
UV stabilized ABS plastic, Aluminum, Stainless steel
Operating temperature [°C]
-30 up to 55
Weight [kg]
2,6
Width [mm]
150
Height [mm]
243
Depth [mm]
280
