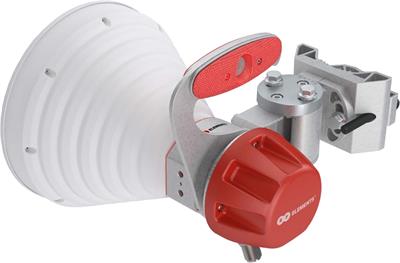

RF elements HG4-CC-S30, Symmetrical Horn antenna, 5GHz, 30°
Your price incl. VAT (20.0%)
163.21 EUR / 319.21 BGN
Ordered for stock
No confirmed delivery date
Product description
The RF elements HG4-CC-S30 is a 5GHz sector horn antenna featuring a 30° symmetrical beamwidth, 18dBi gain and (2) N female connectors. The antenna operates in the 5100-6775MHz frequency range. Thanks to its minimal side lobes, it provides an excellent signal-to-noise ratio (SNR) and its compact size makes it suitable for deployment in environments with a high density of transmitters.
Download
Technical parameters
LAN ports
Polarization
VH
VSWR
< 1,6
F/B ratio [dB]
33
Designed for mast diameter [mm]
30 up to 80
Wind load [km/h]
160
Protection class
IP55
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
30
Azimuth beam width (-6dB) [°]
30
Antenna type
Sector
RF connectors
(2) N female
Purpose
Outdoor
Antenna gain [dBi]
18
Material
UV stabilized ABS plastic, Aluminum, Stainless steel
Operating temperature [°C]
-30 up to 55
Weight [kg]
2,9
Width [mm]
214
Height [mm]
238
Depth [mm]
290
