Wi-Tek WI-PCES320GFH Gbit Easy Smat Cloud PoE Switch
Your price incl. VAT (20.0%)
158.76 EUR / 310.51 BGN
❌ The item is not available. There is no option to order.
No confirmed delivery date
You have a choice of 5 variants
4.84 EUR / 9.47 BGN excl. VAT
4.66 EUR / 9.11 BGN excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDMML-S3155-20
4.66 EUR / 9.11 BGN excl. VAT
4.80 EUR / 9.39 BGN excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDMML-S5531-20
6.36 EUR / 12.44 BGN excl. VAT
Product description
Wi-Tek WI-PCES320GFH is a reliable Easy Smart Gigabit Cloud PoE Switch with a switching capacity of 40 Gbps, (16) Gbit PoE+ ports, (2) Gbit uplink ports and (2) SFP slots. The downlink ports support PoE+ with power output of up to 30W/port and a 130W PoE Budget. The switch is ideal for CCTV installations thanks to PoE, automatic detection of ONVIF devices for automatic camera detection and automatic IP camera reboot in case of connection failure. The switch consumes 8W (without PoE load).
Key Features
- (16) Gbit PoE+ ports, (2) Gbit uplink ports and (2) SFP uplink slots
- Cloud management via Wi-Tek Cloud - provides efficient, simple, and secure remote device management, intelligent deployment, automatic network configuration, and abnormal event alerts
- PoE+ 802.3af/at with power output of up to 30W/port and a total PoE budget of 130W

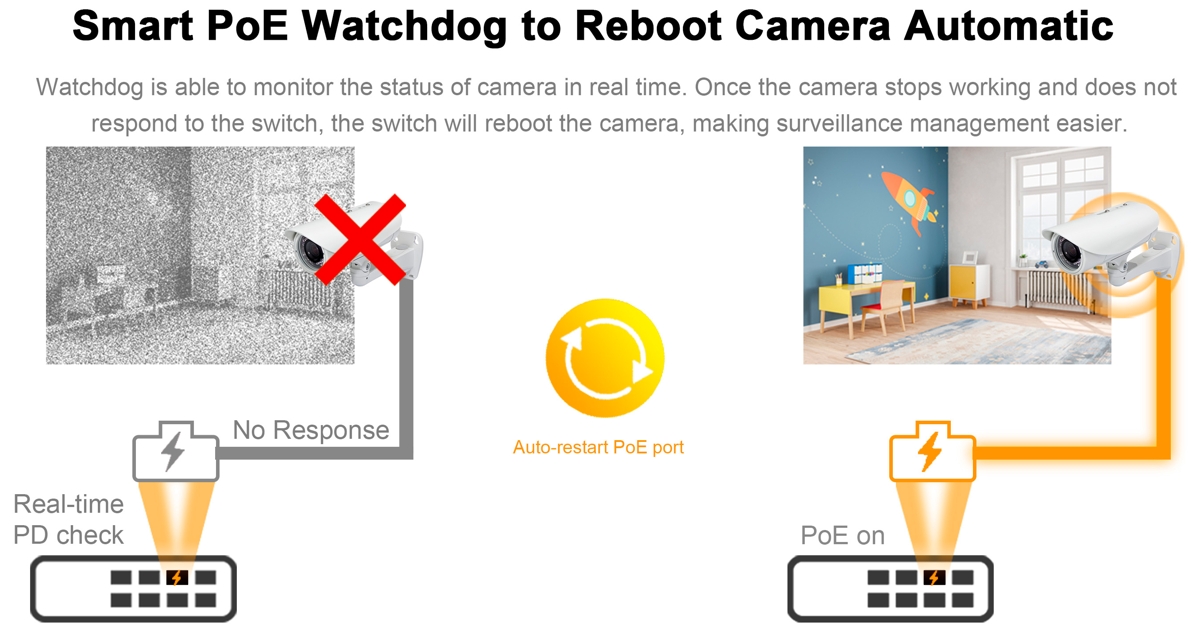

- Automatic detection of ONVIF devices and automatic IP camera reboot functionality
- Automatic loop prevention, VLAN, and QoS
Package Contents
- Device
- AC power cord
- Rack mounting kit
- Rubber feet
- Quick Installation Guide
Download
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
40
MAC address table
8000
Jumbo frame [Bytes]
15000
Packet forwarding rate [Mpps]
29,8
Web management
Yes
Management
Web management, Wi-Tek Cloud, Mobilní aplikace
Features
VLAN, QoS
Power type
Mains power (230V)
Fans
Yes
LAN speed
(18) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
RJ45 ports 1G
18
SFP cages
2
Optical interfaces
(2) 1000Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
16
PoE budget [W]
130
Max. power consumption [W]
138
Buttons
Reset
Operating temperature [°C]
-10 up to 50
Weight [g]
2270
Width [mm]
440
Height [mm]
44
Depth [mm]
271
Default IP address
192.168.0.1
Default login and password
admin / admin
