Wi-Tek WI-PCES509GF Cloud Easy Smart multi-gigabit PoE switch, 8x PoE
Your price incl. VAT (20.0%)
169.04 EUR / 330.62 BGN
❌ The item is not available. There is no option to order.
No confirmed delivery date
10.65 EUR / 20.83 BGN excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
13.85 EUR / 27.09 BGN excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
13.85 EUR / 27.09 BGN excl. VAT
6.39 EUR / 12.50 BGN excl. VAT
Product description

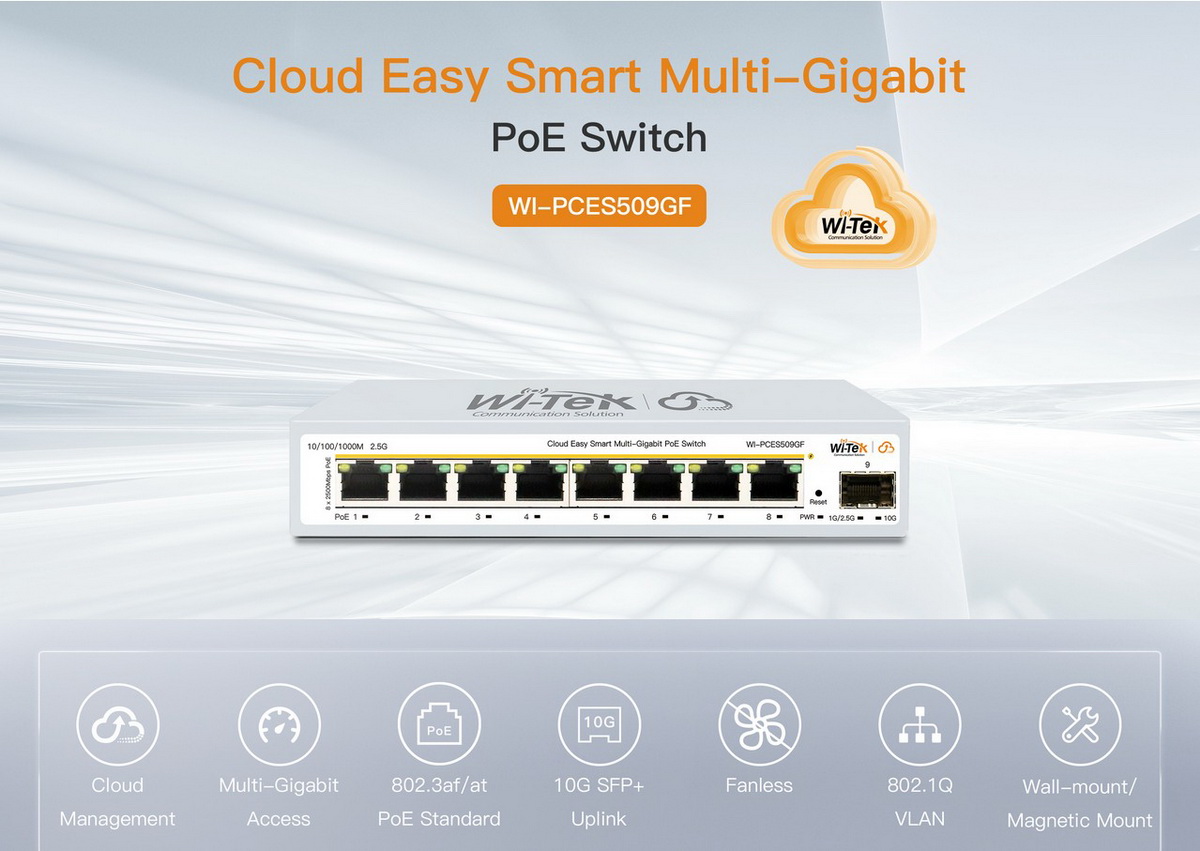

WI-TEK-PCES509GF is a managed PoE switch that allows connection and power supply of network devices such as IP cameras, access points, and other network equipment via the IEEE 802.3af/at standard. Thanks to its compact design, the device can be easily placed on a desk or mounted on a wall. The switch offers a combination of PoE Ethernet ports and a (1) optical port for flexible network expansion. It features eight (8) PoE Ethernet ports supporting data rates of (10/100/1000 Mbps and 2.5 Gbps), and (1) optical SFP+ slot supporting speeds of (1 Gbps, 2.5 Gbps, and 10 Gbps). The device is powered via DC 55V / 2.8A and has a power consumption of 6.64 W.
Key features
- Management: WI-TEK-PCES509GF can be remotely managed through the Wi-Tek cloud platform/mobile APP
- Installation: Wall Mount, on table and magnetically attached to the cabinet
- Power Supply: DC 55V/2,8A

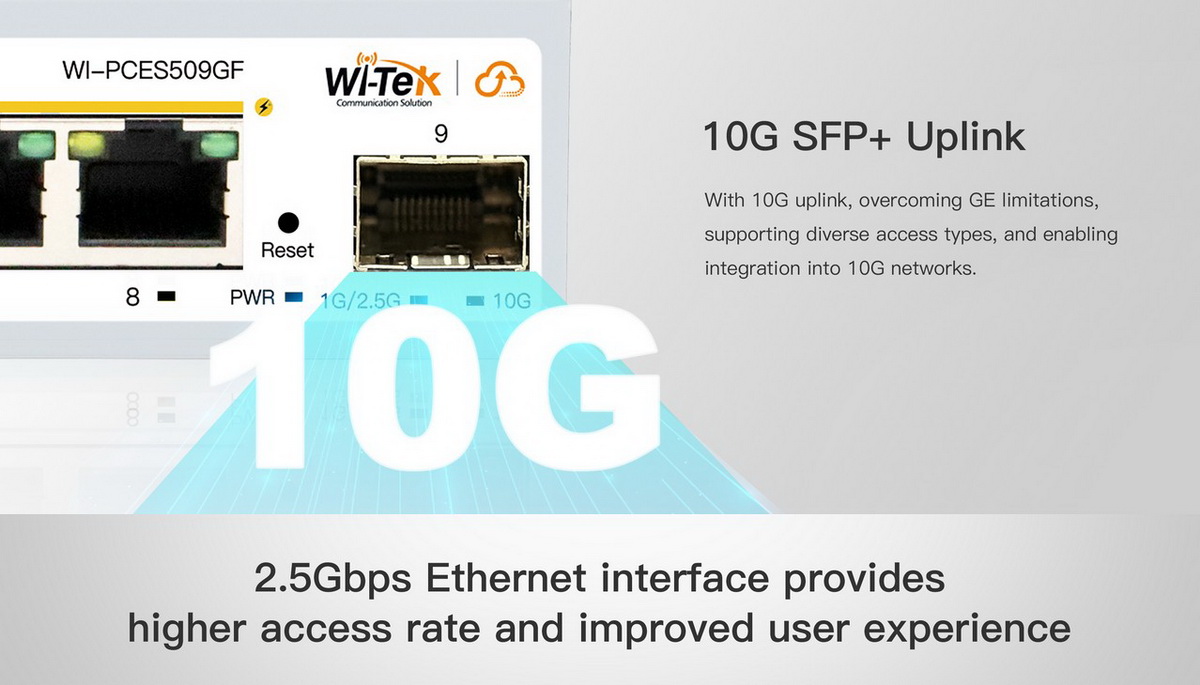

- Connection: (8) ethernet PoE 802.3af/at ports (10 Mbps / 100 Mbps / 1000 Mbps / 2.5 Gbps) and (1) optical SFP+ port (1000 Mbps / 2,5 Gbps / 10 Gbps)
Package contents
- Device
- Power Adapter
- Quick Installation Guide
- (4) Magnetic Accessory
Download
Technical parameters
LAN ports
Web management
Yes
Power type
DC connector
SFP+ cages
1
PoE-Out standards
802.3af, 802.3at
Max. power consumption [W]
6,6
Operating temperature [°C]
-10 up to 50
Weight [g]
480
Depth [mm]
94
Width [mm]
168
Height [mm]
32
