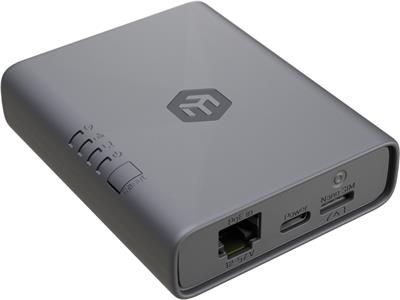

MikroTik EG25-G&KNe, KNOT Embedded LTE4, Global
Your price incl. VAT (20.0%)
82.28 EUR / 160.93 BGN
✅ In Stock 50+ Бр.
Planned Delivery Date by Courier to you 01-04-2026
You have a choice of 2 variants
13.46 EUR / 26.33 BGN excl. VAT
5.28 EUR / 10.33 BGN excl. VAT
Product description
The MikroTik KNOT Embedded LTE4 is a flexible industrial IoT gateway for asset tracking, remote monitoring, and efficient automation (GPIO) featuring eSIM support, LTE Cat. 4, Bluetooth and GNSS. It is equipped with (1) 1Gbit PoE-In port.
This model is the global version with expanded LTE band support for North America and other markets outside the EMEA region and is certified by PTCRB and AT&T. The modem supports 4G LTE (Cat. 4), 3G and 2G networks, with speeds of up to 150Mbps downlink and 50Mbps uplink. It utilizes 2x2 MIMO on the downlink
Key features
- (1) 1Gbit PoE-In port and (3) SMA female connectors for external antennas
- GPIO pins (digital/analog input / OD output)
- Support for eSIM, nano SIM and 2G/3G/4G LTE
- GNSS (BeiDou, Galileo, GPS, Glonass, QZSS)
- Bluetooth beacon tracking
- Flexible power options via USB-C (power only), active 802.3af/at PoE or passive 12-57V PoE
Package contents
- Device
- Power adapter 5V/0.8A
- DIN rail mounting kit
Technical parameters
LAN ports
Power over Ethernet
802.3at, 802.3af, 12 .. 57V DC
Design
DIN rail
Wireless frequency
Bluetooth, GNSS, 2G (GSM), 3G (GSM), LTE
Type of antenna
Detachable
Detachable antennas
3
RF connectors
(3) SMA female
Power type
USB (5V), PoE
4G/LTE bands support
(1) 2100 MHz, (12) 700 MHz, (13) 700 MHz, (18) 850 MHz, (19) 850 MHz, (2) 1900 MHz, (20) 800 MHz, (25) 1900 MHz, (26) 850 MHz, (28) 700 MHz, (3) 1800 MHz, (38) 2600 MHz, (39) 1900 MHz, (4) 1700 MHz, (40) 2300 MHz, (41) 2500 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz
Operating system
RouterOS v7 - L3
Fans
No
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
RJ45 ports 1G
1
Max. power consumption [W]
6
Power via connector/terminal
5V / 0,8A
Operating temperature [°C]
-40 up to 70
Width [mm]
70
Height [mm]
22
Depth [mm]
90
CPU frequency [MHz]
800
SIM slot
Yes
SIM slots quantity
1
USB
Yes
IPv6 support
Yes
Internal storage [MB]
256
RAM [MB]
256
GPS modul
Yes
