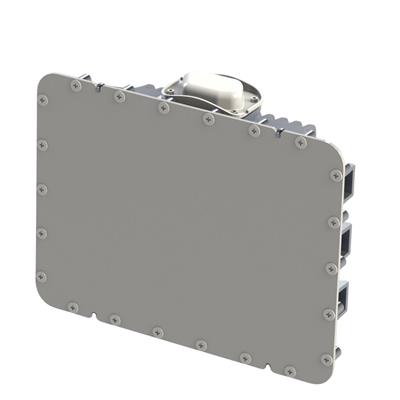

Mimosa C6
Your price incl. VAT (20.0%)
430.54 EUR / 842.06 BGN
Ordered for stock
Planned Delivery Date by Courier to you 09-09-2026
8.67 EUR / 16.96 BGN excl. VAT
118.88 EUR / 232.51 BGN excl. VAT
Product description
The Mimosa C6 is an outdoor client unit in a rugged chassis with high resistance to surrounding interference, IP67 rating, and an integrated 4x4 MIMO antenna with a 14 dBi gain. The advanced antenna array with beamforming allows the unit to function even in challenging Non-Line-Of-Sight conditions. Thanks to these features, the unit can achieve speeds of up to 2500 Mbps at 160 MHz and operate in the frequency range of 5150 to 6425 MHz. For network connection, it is equipped with a Gigabit Ethernet port supporting passive PoE 50V. The maximum power consumption of the unit is 35W.
Key Features
- Advanced antenna array with beamforming for Non-Line-of-Sight scenarios
- Support for 6 GHz channels - 5150 to 6425 MHz
- Durable aluminum chassis, IP67 rating, operating temperature -40 to +55°C
- 4 x 4 MIMO, 2500 Mbps, 1024 QAM, 160 MHz
- High output power 24 dBm
- Wireless protocol WiFi Interop
- Powered via passive PoE (50V)
Download
Technical parameters
LAN ports
F/B ratio [dB]
30
Cross-Pol Isolation [dB]
20
Polarization
Slant (+- 45°)
Protection class
IP67
Power over Ethernet
50V DC
Maximum modulation
1024 QAM
Frequency range [MHz]
5150 - 6425
Operating mode
Client
Wireless frequency
5 GHz
WiFi standards
Mimosa SRS, WiFi Interop
Transmission speed - 5GHz [Mb/s]
2402
Tx power 5GHz [dBm]
24
Elevation beam width (-6dB) [°]
15
Azimuth beam width (-6dB) [°]
90
5GHz MIMO
4 x 4
Type of antenna
Built-in
Purpose
Outdoor
Antenna gain [dBi]
14
LAN speed
(1) 10/100/1000Mbps
PoE type
PoE-In (only)
RJ45 ports 1G
1
Max. power consumption [W]
35
Operating temperature [°C]
-40 up to 55
Weight [g]
1500
Depth [mm]
80
Height [mm]
215
Width [mm]
275
