TP-Link Flex Bridge 5, 5GHz PtP+PtMP bridge

Product description

The TP-Link Flex Bridge 5 is an outdoor 5GHz Wi-Fi 5 AP/client for PtP and PtMP wireless links, delivering throughput of up to 867Mbps over distances of up to 5km. It features (3) 1Gbit (1x PoE-In, 2x PoE-Out) ports, integrated high-gain directional antennas with 17dBi gain and easy alignment using a mobile app. One AP can serve up to 8 clients.

Key features

• (3) 1Gbit ports
• PoE budget 10W - either 5W for both PoE-Out ports or 10W for a single port
• 5GHz bridge PtP/PtMP - link range up to 5km with throughput up to 867Mbps
• Support for up to 8 client units
• App assisted alignment - app guided visual alignment for long-distance installations and instant speed testing to verify correct installation
• IP66 weatherproof enclosure
• Power via active 802.3af/at PoE, 24V/54V passive PoE or 12V DC connector

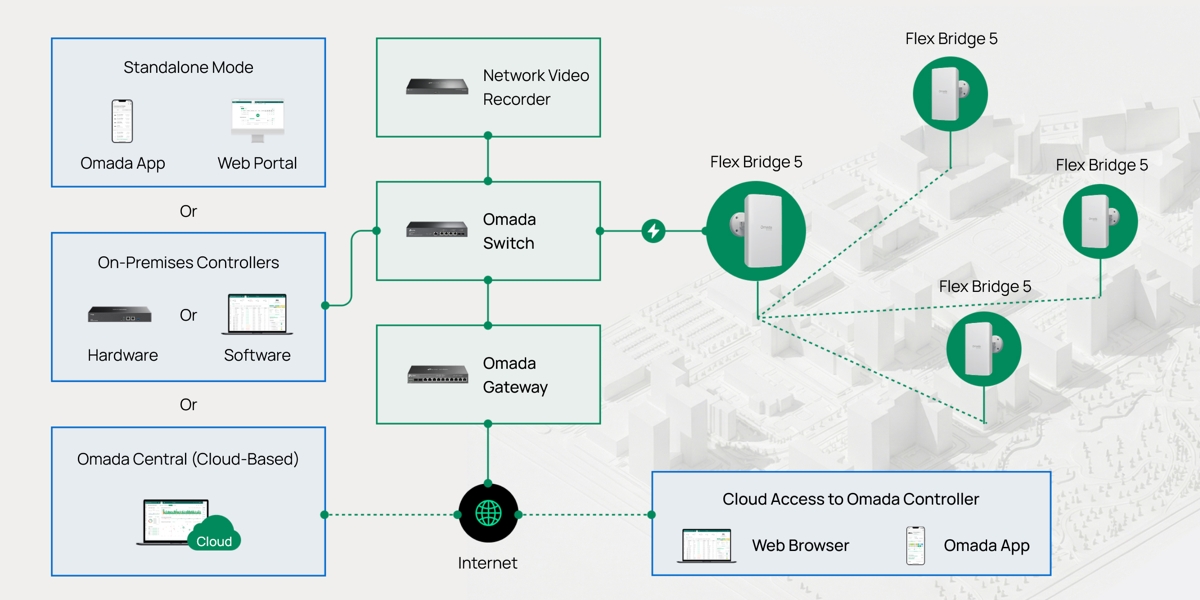

The easy way to centralized management

The Omada Software Defined Networking (SDN) platform integrates network devices, including Access Points, Switches, Gateway Routers, and provides 100% centralized cloud management. Omada creates a highly scalable network, including control from a single interface. It provides seamless wireless and wired connectivity, ideal for use in hospitality, education, retail, offices and more.

Package contents

• Device
• Mount
• Passive PoE injector 54V
• Mounting accessories

Download

https://download.discomp.cz/TP-LINK/Datasheets/Datasheet_Flex%20Bridge%205_1.0.pdf

Datasheet

https://download.discomp.cz/TP-LINK/QSG/Flex%20Bridge%205_Installation%20Guide_7100002629.pdf

Quick Install Guide
