MERCUSYS MS106GP, Gigabit PoE switch
Your price incl. VAT (20.0%)
29.48 EUR / 57.67 BGN
Ordered for stock
No confirmed delivery date
Product description

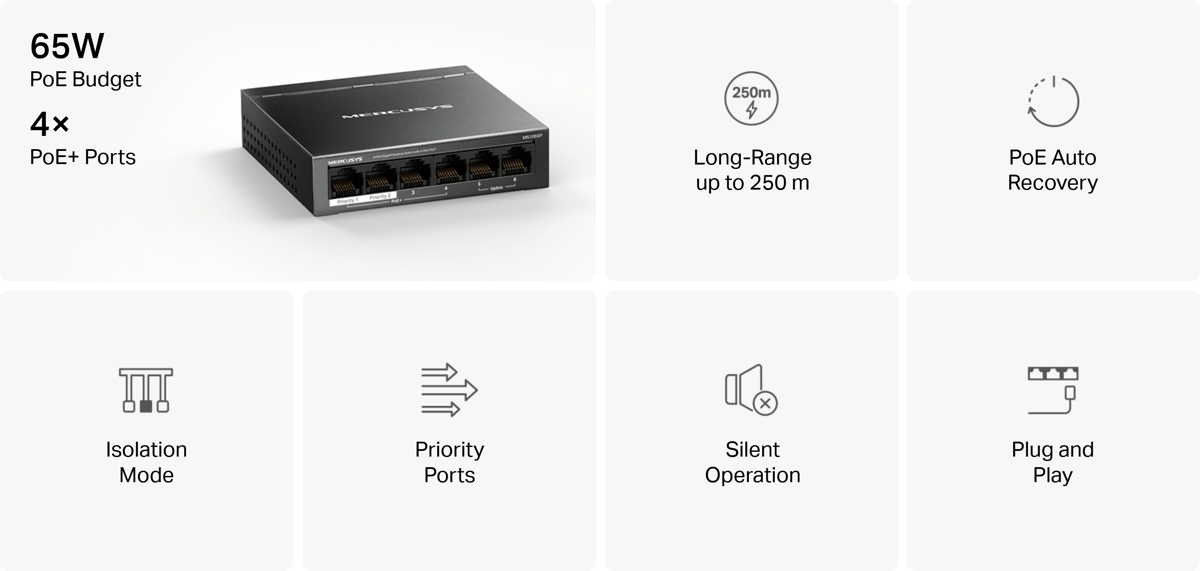

The MERCUSYS MS106GP is an unmanaged PoE switch with a switching capacity of 12Gbps, (4) 1Gbit PoE+ ports and (2) 1Gbit uplink ports (internet and NVR). The downlink ports support PoE+ with a total PoE budget of 65W. It is powered via a 53.5V/1.31A DC connector and its maximum power consumption is 4.5W (without PoE load).
Key features
- (4) 1Gbit PoE+ ports and (2) 1Gbit uplink ports
- Ports 1-4 support 802.3af/at PoE+ with up to 30W/port and a total budget of 65W
- Priority ports - prioritized traffic on ports 1–2
- PoE auto recovery - automatically reboots unresponsive PoE devices
- Isolation mode - ports 1-4 are isolated, each PoE port can communicate only with uplink ports
- Extend mode - extends the transmission distance of PoE ports up to 250m at 10Mbps
- Passive cooling - silent operation suitable for office environments
Package contents
- Device
- Power adapter
Download
Technical parameters
LAN ports
Design
Desktop
Switchning capacity [Gbps]
12
MAC address table
2000
Power type
DC connector
Fans
No
LAN speed
(6) 10/100/1000Mbps
LAN ports 1G
6
PoE type
PoE-Out (only)
RJ45 ports 1G
6
PoE-Out standards
802.3af, 802.3at
PoE Out ports
4
PoE budget [W]
65
Long range PoE - up to 250m
Yes
Max. power consumption [W]
70
Chassis design
Metal
Power via connector/terminal
53,5V/1,31A
Buttons
Auto Recovery, Extend mode, Isolation port
Operating temperature [°C]
0 up to 40
Depth [mm]
98
Width [mm]
100
Height [mm]
25
