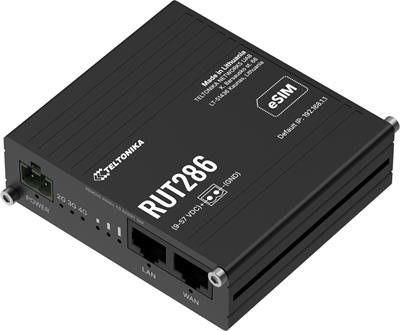

Teltonika RUT286, Industrial 4G Wi-Fi 4 router
Your price incl. VAT (20.0%)
184.62 EUR / 361.09 BGN
❌ The item is not available. There is no option to order.
No confirmed delivery date
85.63 EUR / 167.48 BGN excl. VAT
10.47 EUR / 20.48 BGN excl. VAT
Product description
The Teltonika RUT286 is an industrial 4G LTE Wi-Fi 4 router with (1) RS232 and (1) RS485 serial interface, WAN and SIM failover, (2) 10/100Mbps ports (1x LAN, 1x WAN), 2.4GHz Wi-Fi 4 delivering throughput of up to 150Mbps, (2) SMA female connectors for external LTE antennas, (1) RP-SMA female connector for an external Wi-Fi antenna, (2) mini SIM slots and eSIM support.
The router is equipped with a modem supporting 4G LTE Cat. 4, 3G and 2G, with data rates of up to 150Mbps downlink and 50Mbps uplink. Power can be supplied via the 2-pin DC terminal block (9-57V) or active (802.3af) and passive PoE (16-57V) on the LAN1 port.
Package contents
- Device
- SIM adapter kit
- Terminal blocks
Download
Technical parameters
LAN ports
Power over Ethernet
802.3af, 16 .. 57V DC
Design
Industry
Max. WAN speed
100M
Operating mode
AP Router, Cellular router
Wireless frequency
2.4 GHz, 2G (GSM), 3G (GSM), LTE
WiFi standards
802.11b/g, 802.11n
Transmission speed - 2.4GHz [Mb/s]
150
Security
WPA, WPA2, WPA3, OWE
2.4GHz MIMO
1 x 1 SISO
Type of antenna
Detachable
Detachable antennas
3
RF connectors
(2) SMA female, (1) RP-SMA female
Integrated 4G/LTE radio part
Yes
Power type
PoE, DC terminal
4G/LTE bands support
(1) 2100 MHz, (12) 700 MHz, (13) 700 MHz, (14) 700 MHz, (18) 850 MHz, (19) 850 MHz, (2) 1900 MHz, (20) 800 MHz, (25) 1900 MHz, (26) 850 MHz, (28) 700 MHz, (3) 1800 MHz, (4) 1700 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN speed
(2) 10/100Mbps
LAN ports 100M
2
PoE type
PoE-In (only)
Max. power consumption [W]
6,5
Serial port
RS-232, RS-485
Power via connector/terminal
9 .. 57V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 65
Weight [g]
132
Width [mm]
83
Height [mm]
25
Depth [mm]
83
CPU frequency [MHz]
580
SIM slot
Yes
SIM slots quantity
2
IPv6 support
Yes
Default IP address
192.168.1.1
Internal storage [MB]
32
RAM [MB]
128
Default login and password
admin / (preset password, see label/engraving)
